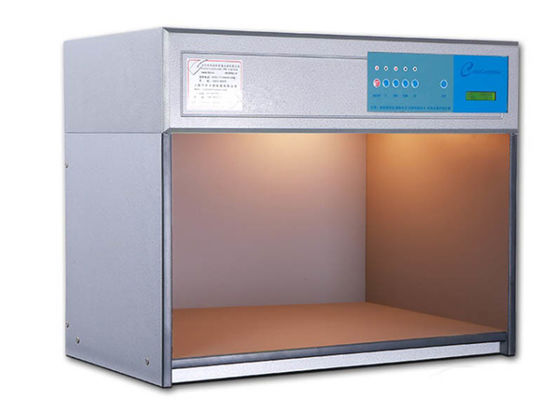

ISO ASTM DIN BSI ANSI CIE Color Matching Light Box Four Light Sources

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: 600-4

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Wooden Case Package Packing Size:800x620x350mm

Delivery Time: 5-7 days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

Color Matching Light Box 220V

,

Four Sources Color Matching Light Box

,

220 Volt Color Matching Light Box

Voltage:
220V Or Custom Made
Type:
Four Light Sources
Standard:
ISO ASTM DIN BSI ANSI CIE
Warranty:
12 Months
Voltage:
220V Or Custom Made
Type:
Four Light Sources
Standard:
ISO ASTM DIN BSI ANSI CIE
Warranty:
12 Months
Product Description

ISO ASTM DIN BSI ANSI CIE Color Matching Light Box



Color Matching Four Light Sources D65 TL84 UV F Light Box





Color Matching Light Box Introduction



Four light source light box contains the following 4 kinds of illuminant : D65,TL84,UV and F.



Light box is also called Color Controller Light Box or Color Matching Cabinet. It is the illuminant for testing the products color difference. Four light sources light box contains the following 4 kinds of illuminantion : D65,TL84,UV and F.



After connect with electricity, press the illuminant button, it will be turned on. Then we could compare the samples color difference inside the box. Multi light sources could be turned on at the same time. Customer could choose the suitable light source according to his or her need. The most commonly used light source is D65.





Color Matching Light Box Technical Data



Type Light Source Name Quantity Power Color Temperture

600- Four Light Sources

Voltage 220V /110V

D65 International Standard Artificial Light Source 2 pcs 18W 6500K
TL84 European and Japanese Commercial Light Source 2 pcs 18W 4000K
UV Light Source 1 pc 18W -------
F Yellow Light Source, color comparing reference light source 4 pcs 40W 2700K





Color Matching Light Box Advantages



1). Light booth is with Patents and with CE certification.

2). After power off, the data could be saved automatically.

3). With imported component to make sure the stability of the instrument.

4). Longest Warranty Time: 12 months warranty.

5). Conform to International Standard: ISO ASTM DIN BSI ANSI CIE



Light Sources D50 and others can be custom made. If you need, please let us know your detail requirement.
