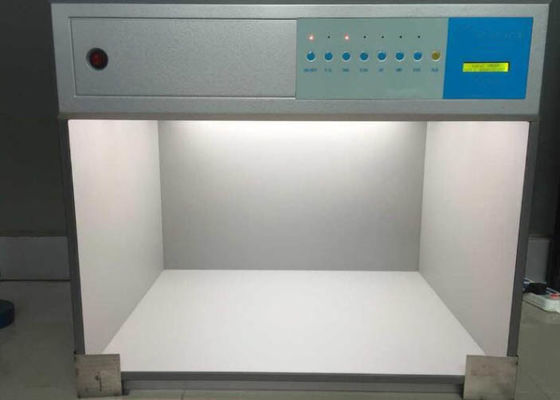

Delicate Pantone Color Viewing Light Booth , Color Matching Booth Long Service Life

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: 600-4

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Wooden Case Package Packing Size:800x620x350mm

Delivery Time: 5-7 days

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

color viewing light box

,

colour matching cabinet

,

220V Color Matching Booth

Voltage:
220V Or Custom Made
Type:
Four Light Sources
Standard:
ISO ASTM DIN BSI ANSI CIE
Warranty:
12 Months
Voltage:
220V Or Custom Made
Type:
Four Light Sources
Standard:
ISO ASTM DIN BSI ANSI CIE
Warranty:
12 Months
Product Description

High Quality Color Matching Light Box Inspection For Sale





Light Box Introduction:



Light box is also called Color Controller Light Box or Color Assessment Cabinet. It is the illuminant for testing the products color difference. Four light sources light box contains the following 4 kinds of illuminantion : D65,TL84,UV and F. After connect with electricity, press the suitable illuminant button, it will be turned on. And then we could compare the samples color difference inside the box. Multi light sources could be turned on at the same time. Customer could choose the suitable light source according to his or her need. The most commonly used light source is D65.



Delicate Pantone Color Viewing Light Booth , Color Matching Booth Long Service Life 0





Technical Data:



Technical Data



Light Source Color Temperature Power Type Usage
D65 6500K 2pcs x 18w

Fluorescent

Artificial Daylight

Philips TL D 18W/965

International Standard Artificial Daylight
TL84 4000K 2pcs x 18w

Fluorescent

Philips TL D 18W/840

Europe and Japan Shop Light Source
UV / 1pcs x 18w

Fluorescent

Philips TL D 0T8/BLB

BLACK LIGHT

UV Light Source
F/A 2700K 4pcs x 40w Incandescent PHILIPS E27 Sunset Light



Light Box Size: 710mm(Length)×420mm(Width)×570mm(Height)           Weight:28kgs



Light Box Advantages:



1). Light booth is with Chinese Patents and with CE certification.

2). After power off, the data could be saved automatically.

3). With imported component to make sure the stability of the instrument.

4). Longest Warranty Time: 12 months warranty.

5). Conform to International Standard: ISO ASTM DIN BSI ANSI CIE





Packing List:



No. Name Quantity
1 Light Booth Top Cover 1 pcs
2 Light Booth Bottom 1 pcs
3 Light Booth Back Cover 1 pcs
4 Light Booth Side Cover 2 pcs
5 Power Line 1 pcs
6 Operating Manual 1 pcs
7 Warranty Card 1 pcs
8 D65 Light Tube 2 pcs
9 TL84 Light Tube 2 pcs
10 UV Light Tube 1 pcs
11 F/A Light Tube 4 pcs





Company Information:



Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten 10 Invention Patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. If any need or questions about our products, please do not hesitate to contact me. You are warmly welcome to visit and purchase from us.
