D/0 5 Inches Screen Haze Measurement Instrument 400 - 700nm Wavelength
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-700 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm |
| Delivery Time | 5-7 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Instrument Color | White | Product Name | Haze And Transmission Test Machine |
|---|---|---|---|
| Application | Glass Haze Measurement | Light Source | C,D65 And A |
| Standard | ASTM And ISO | Power | 110-240V |
| Warranty | 1 Year | Instrument Weight | 7kgs |
| Interface | USB | Wavelength | 400-700nm |
| Wavelength Interval | 10nm | Geometry | D/0 |
| Display | 5 Inches | Illumination | 16.5mm |
| Aperture Size | 21mm | Haze Resolution | 0.01unit |
| High Light | 240V Haze Meter,5 Inches Screen Haze Measurement Instrument,400nm Haze Measurement Instrument |
||
Product Description

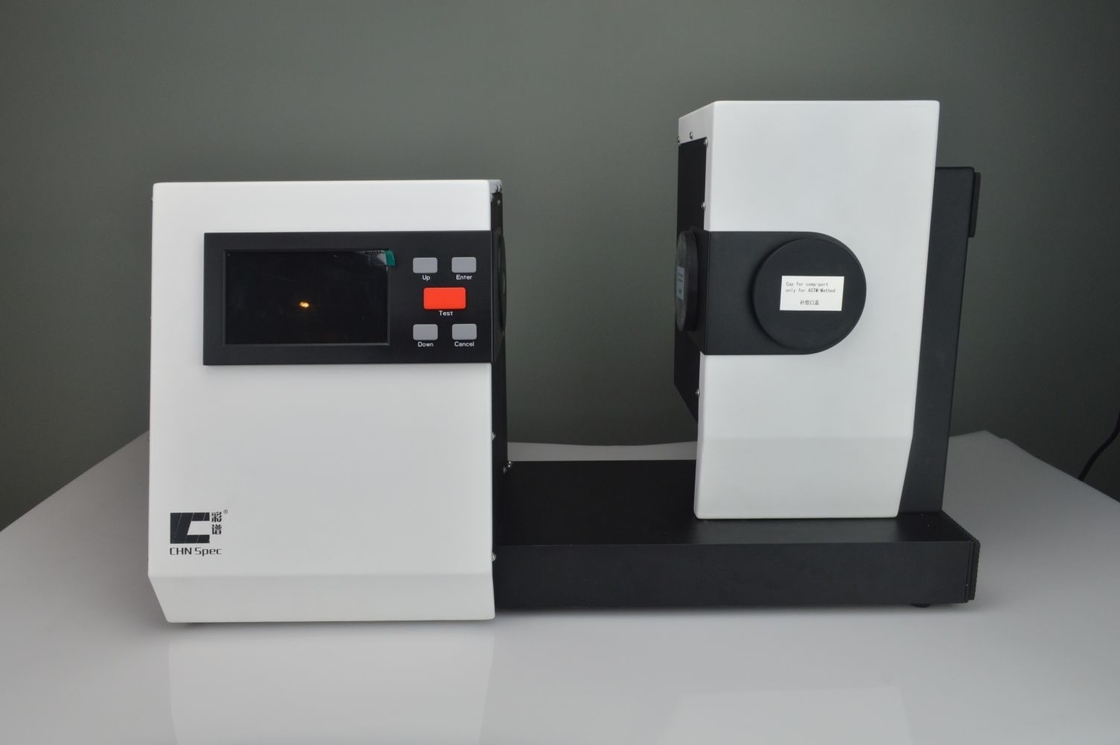

D/0 5 Inches Screen ASTM And ISO 400-700nm Wavelength Haze Measurement Instrument / Transmittance Haze Meter
Haze MeterCS-700
It is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.
Part 1. Instrument Introduction
1. Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.
2. It can realize transmittance compensation measurement which can provide higher accuracy test result.
3. Open measurement area, no limit on sample size. Vertical measurement is also available.
4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
5. Instrument is with haze and transmittance measurement software.
Part 2.Instrument Detail
Liquid Measurement Sheet Material Measurement
Cap for Compensation Port 0% Calibration Cap
Part 3. Technical Data
| Type | Haze Meter CS-700 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards |
ASTM D1003/D1044 ISO13468/ISO14782 |
| Parameters | HAZE,Transmittance(T) |
| Spectral Response | CIE Luminosity function y |
| Wavelength | 400-700nm |
| Wavelength Interval | 10nm |
| Geometry | 0/d |
| Measurement Area/Sample Port | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤150mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Power | 220V (with power cable) |
| Working Temperature | 10-40 ℃ |
| Storage Temperature | 0-50℃ |
| Size (LxWxH) | 598mm X 247mm X 366mm |
| Standard Accessory | PC software (Color QC) |
| Optional | Measurement Fixture, Haze standard film |
Part 4. Application Field
