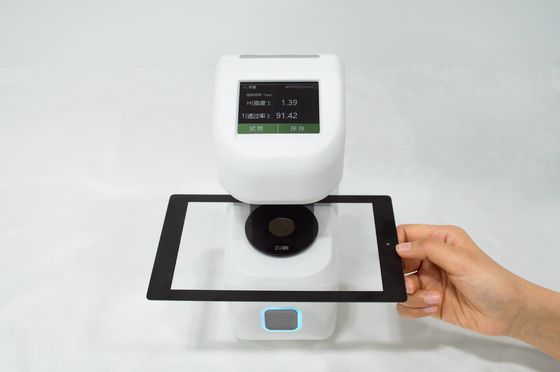

21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12

  • 21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12
  • 21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12
  • 21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12
  • 21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12
  • 21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12
Place of Origin China
Brand Name CHNSpec
Certification CE
Model Number DH-10
Minimum Order Quantity 1
Price negotiable
Packaging Details carton box
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Light Source CIE-A,CIE-C,CIE-D65 Parameter ASTM-haze/transmittance
Spectral Response CIE The Spectrum Function Y/V(λ) Geometry 0/d
Test Aperture 21mm Test Range 0-100%
Repeatability 0.1 Sample Size Thickness ≤40mm
High Light

21mm Aperture portable haze meter

,

ASTM D1003 portable haze meter

,

Haze Meter For Plastic Glass
Leave a Message
Product Description

ASTM D1003 Film Haze And Transmittance Measure Instrument Plastic Glass Transparency Tester

Haze is measured with a wide angle scattering test in which light is diffused in all directions which results in a loss of contrast. That percentage of light that when passing through that deviates from the incident beam by greater than 2.5 degrees on average is defined as haze.


A digital haze meter can also measure total transmittance. Total transmittance is a measure of the total incident light compared to the light actually transmitted (for example, total transmittance). Thus, the incident light may be 100%, but the total transmittance may be only 94% due to absorption and reflection.

Part 1. Product Advantages

1). The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.

21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12 0

2). High Accuracy: Display resolution 0.01; Good repeatability ≤0.02

21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12 1

3). What have we done to guarantee the instrument repeatability?

a. Instrument will do self-check regularly when it is in standby mode.

b. Dual Optical Paths Design

21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12 2

4). The haze meter conforms to the standards of GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361 and JIS K 7136.

5). It contains three kinds of light source to measure the haze and transmittance of different standards.

7). It adopts 2.8 inches touch screen

21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12 321mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12 4

Part 2. Main Parameter Comparison Sheet



Model DH-10 DH-12★ DH-13
ASTM-haze/transmittance ✔ ✔ ✔
ISO- haze/transmittance ✘ ✔ ✔
Test Apertures 21mm 21mm, 15mm 21mm, 15mm, 12mm
Resolution 0.1% 0.01% 0.01%
Repeatability 0.1 0.05 0.02
Lithium Battery ✘ ✔ ✔
Weight 1.13kg 1.25kg 1.25kg



Part 4. Technical Data

Model DH-10 DH-12 DH-13
Light Source CIE-A,CIE-C,CIE-D65 CIE-A,CIE-C,CIE-D65 CIE-A,CIE-C,CIE-D65
Standards ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
Parameter ASTM-haze/transmittance ASTM & ISO -haze/transmittance ASTM & ISO -haze/transmittance
Spectral Response CIE The spectrum function Y/V(λ) CIE The spectrum function Y/V(λ) CIE The spectrum function Y/V(λ)
Geometry 0/d 0/d 0/d
Test Aperture 21mm 21mm, 15mm 21mm, 15mm, 12mm
Test Range 0-100% 0-100% 0-100%
Resolution 0.1% 0.01% 0.01%
Repeatability 0.1 0.05 0.02
Sample Size Thickness ≤40mm Thickness ≤40mm Thickness ≤40mm
Display 2.8 inches touch screen 2.8 inches touch screen 2.8 inches touch screen
Data Storage Mass Storage Mass Storage Mass Storage
Interface USB USB USB
Power DC 5V/2A Rechargeable Lithium Battery Rechargeable Lithium Battery
Working Temperature 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation
Storage Temperature -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation
Size

133mm x 99mm x 224mm

(length X width X height)

133mm x 99mm x 224mm

(length X width X height)

133mm x 99mm x 224mm

(length X width X height)
Weight 1.13 kg 1.25 kg 1.25 kg
Optional Test Aperture with custom made size Test Aperture with custom made size Test Aperture with custom made size

Part 4. Application

21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12 5

Part 6. Haze Meter Application

21mm Aperture ASTM D1003 Haze Meter For Plastic Glass Transparency DH-12 6
