Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: DH-10
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton box
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 1000 per month
Light Source: |
CIE-A,CIE-C,CIE-D65 |
Parameter: |
ASTM-haze/transmittance |
Spectral Response: |
CIE The Spectrum Function Y/V(λ) |
Geometry: |
0/d |
Test Aperture: |
21mm |
Test Range: |
0-100% |
Repeatability: |
0.1 |
Sample Size: |
Thickness ≤40mm |
Power: |
DC 5V/2A |
Interface: |
USB |
Display: |
2.8 Inches Touch Screen |
Light Source: |
CIE-A,CIE-C,CIE-D65 |
Parameter: |
ASTM-haze/transmittance |
Spectral Response: |
CIE The Spectrum Function Y/V(λ) |
Geometry: |
0/d |
Test Aperture: |
21mm |
Test Range: |
0-100% |
Repeatability: |
0.1 |
Sample Size: |
Thickness ≤40mm |
Power: |
DC 5V/2A |
Interface: |
USB |
Display: |
2.8 Inches Touch Screen |

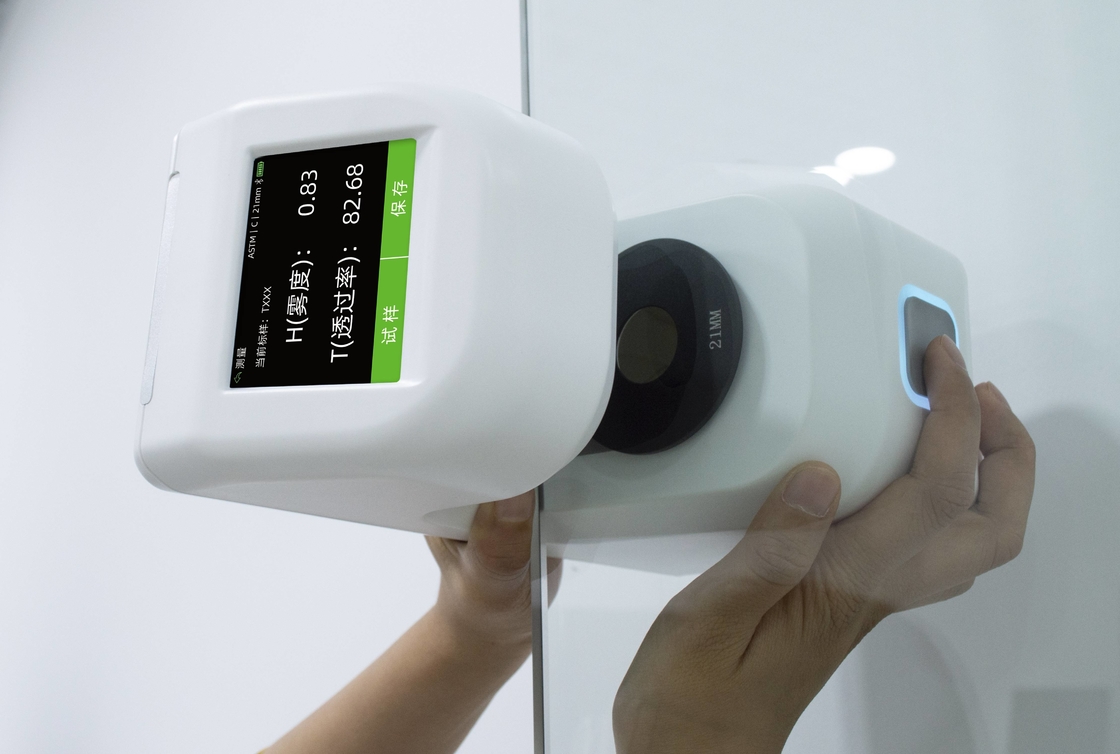

CHNSpec DH-12 ASTM D1003 For Plastic Film 0.1% Resolution White Portable Haze Meter
The design concept of the DH series of CHNSpec hand-held haze meters is to be small and portable, so that users can measure haze and transmittance anytime and anywhere. DH-12/13 supports lithium battery power supply, realizing the leap of haze measurement from landline era to mobile era. The mobile phone applet is connected to the instrument for operation and wireless control. In addition to ensuring the stability of the sample measurement process, it also allows the measurement data to be stored in the cloud, follow the account, and not be lost. The caliber switching method has also been upgraded, and the magnetic suction switching is convenient and simple. Although the instrument is made smaller, it still does not reduce the functions and characteristics of the desktop type. The handheld haze meter still retains the standard and measurement light source that the desktop type follows.
Product Features
*The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.
*High Accuracy: Display resolution 0.01; Good repeatability ≤0.02
*DH-13 supports 3 kinds of test apertures 21mm, 15mm & 12mm to measure the samples with different sizes.
*The haze meter conforms to the standards of GB/T 2410, ASTM D1003/1044, ISO 13468/14782,JIS K 7105, JIS K 7361 and JIS K 7136.
*It contains three kinds of light source to measure the haze and transmittance of different standards.
*It adopts 2.8 inches touch screen
A digital haze meter can also measure total transmittance. Total transmittance is a measure of the total incident light compared to the light actually transmitted (for example, total transmittance). Thus, the incident light may be 100%, but the total transmittance may be only 94% due to absorption and reflection.
Part 1. Product Advantages
1). The portable haze meter is with smaller size which is more convenient to be carried for testing haze and transmittance.
2). High Accuracy: Display resolution 0.01; Good repeatability ≤0.02
3). What have we done to guarantee the instrument repeatability?
a. Instrument will do self-check regularly when it is in standby mode.
b. Dual Optical Paths Design
4). The haze meter conforms to the standards of GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361 and JIS K 7136.
5). It contains three kinds of light source to measure the haze and transmittance of different standards.
7). It adopts 2.8 inches touch screen
Part 2. Main Parameter Comparison Sheet
| Model | DH-10 | DH-12★ | DH-13 |
| ASTM-haze/transmittance | ✔ | ✔ | ✔ |
| ISO- haze/transmittance | ✘ | ✔ | ✔ |
| Test Apertures | 21mm | 21mm, 15mm | 21mm, 15mm, 12mm |
| Resolution | 0.1% | 0.01% | 0.01% |
| Repeatability | 0.1 | 0.05 | 0.02 |
| Lithium Battery | ✘ | ✔ | ✔ |
| Weight | 1.13kg | 1.25kg | 1.25kg |
| Model | DH-10 | DH-12 | DH-13 |
| Light Source | CIE-A,CIE-C,CIE-D65 | CIE-A,CIE-C,CIE-D65 | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 | ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 | ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 |
| Parameter | ASTM-haze/transmittance | ASTM & ISO -haze/transmittance | ASTM & ISO -haze/transmittance |
| Spectral Response | CIE The spectrum function Y/V(λ) | CIE The spectrum function Y/V(λ) | CIE The spectrum function Y/V(λ) |
| Geometry | 0/d | 0/d | 0/d |
| Test Aperture | 21mm | 21mm, 15mm | 21mm, 15mm, 12mm |
| Test Range | 0-100% | 0-100% | 0-100% |
| Resolution | 0.1% | 0.01% | 0.01% |
| Repeatability | 0.1 | 0.05 | 0.02 |
| Sample Size | Thickness ≤40mm | Thickness ≤40mm | Thickness ≤40mm |
| Display | 2.8 inches touch screen | 2.8 inches touch screen | 2.8 inches touch screen |
| Data Storage | Mass Storage | Mass Storage | Mass Storage |
| Interface | USB | USB | USB |
| Power | DC 5V/2A | Rechargeable Lithium Battery | Rechargeable Lithium Battery |
| Working Temperature | 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation | 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation | 5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation |
| Storage Temperature | -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation | -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation | -20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation |
| Size |
133mm x 99mm x 224mm (length X width X height) |
133mm x 99mm x 224mm (length X width X height) |
133mm x 99mm x 224mm (length X width X height) |
| Weight | 1.13 kg | 1.25 kg | 1.25 kg |
| Optional | Test Aperture with custom made size | Test Aperture with custom made size | Test Aperture with custom made size |
