Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE Certificate

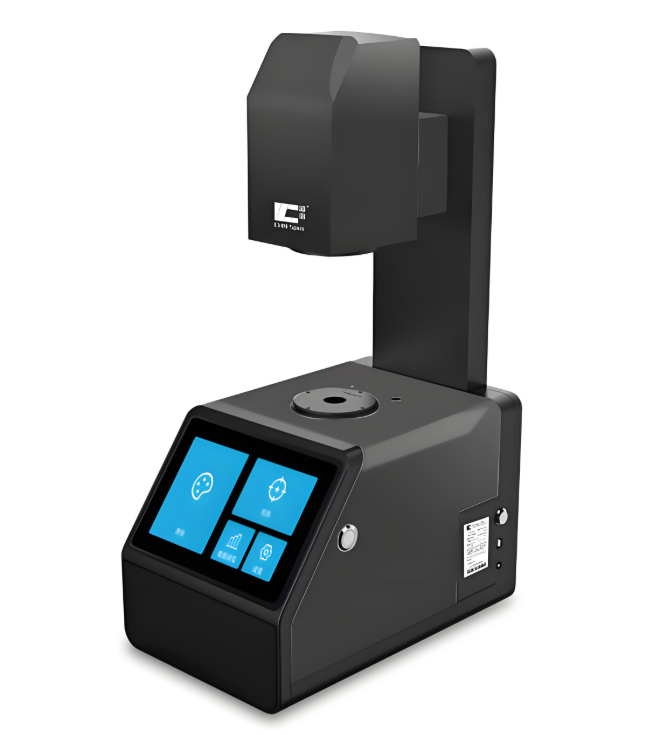

Model Number: TH-07 series
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton box with foam package
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 per month1、Product features
Display: |
7-inch IPS Full-view LCD Screen |
Interface: |
USB Interface |
Weight: |
6kg |
Repeatability: |
0.05 |
Display: |
7-inch IPS Full-view LCD Screen |
Interface: |
USB Interface |
Weight: |
6kg |
Repeatability: |
0.05 |
I. Product Features
II. Technical Parameters
|
Product model |
TH-05 | TH-06 | TH-07 |
|
Light source |
CIE-A,CIE-C | CIE-A,CIE-C,CIE-D65 | |
|
Follow the standards |
ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 | ||
| Measurement parameters | Haze and transmittance under ASTM standards | Haze and transmittance under both ASTM and ISO standards | |
|
Spectral response |
CIE spectral function Y/V(λ) | ||
|
Optical path structure |
0/d | ||
| Measurement diameter | 21mm | 21mm,7mm | |
| Range | 0-100% | ||
| Resolution | 0.1 | 0.01% | |
| Repeatability | 0.1 | 0.08 | 0.05 |
|
Sample size |
Thickness ≤145mm | ||
| Display | 7-inch IPS full-view LCD screen | ||
| Touch | Capacitive touch screen | ||
| Store data | 10,000 values | 20,000 values | |
|
Light source lifespan |
Five million times in five years | ||
| Interface | USB interface | ||
|
Power supply |
DC 12V/3A | ||
|
Working temperature |
5 to 40℃, relative humidity 80% or lower (at 35℃), no water vapor condensation | ||
|
Storage temperature |
-20 to 45℃, relative humidity 80% or lower (at 35℃), no water vapor condensation | ||
| Volume | Length X width X height: 310mmX215mmX540mm | ||
| Weight | 6kg | ||
| Standard configuration | PC management software(HAZE QC) | ||
| Optional | Measuring fixtures, haze standard plates, custom diameter plates | ||
III. Application Fields
