Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-700
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Instrument Color: |
White |
Product Name: |
Haze And Transmission Test Machine |
Application: |
Glass Haze Measurement |
Light Source: |
C,D65 And A |
Standard: |
ASTM And ISO |
Power: |
110-240V |
Warranty: |
1 Year |
Instrument Weight: |
7kgs |
Interface: |
USB |
Wavelength: |
400-700nm |
Wavelength Interval: |
10nm |
Geometry: |
D/0 |
Display: |
5 Inches |
Illumination: |
16.5mm |
Aperture Size: |
21mm |
Haze Resolution: |
0.01unit |
Instrument Color: |
White |
Product Name: |
Haze And Transmission Test Machine |
Application: |
Glass Haze Measurement |
Light Source: |
C,D65 And A |
Standard: |
ASTM And ISO |
Power: |
110-240V |
Warranty: |
1 Year |
Instrument Weight: |
7kgs |
Interface: |
USB |
Wavelength: |
400-700nm |
Wavelength Interval: |
10nm |
Geometry: |
D/0 |
Display: |
5 Inches |
Illumination: |
16.5mm |
Aperture Size: |
21mm |
Haze Resolution: |
0.01unit |

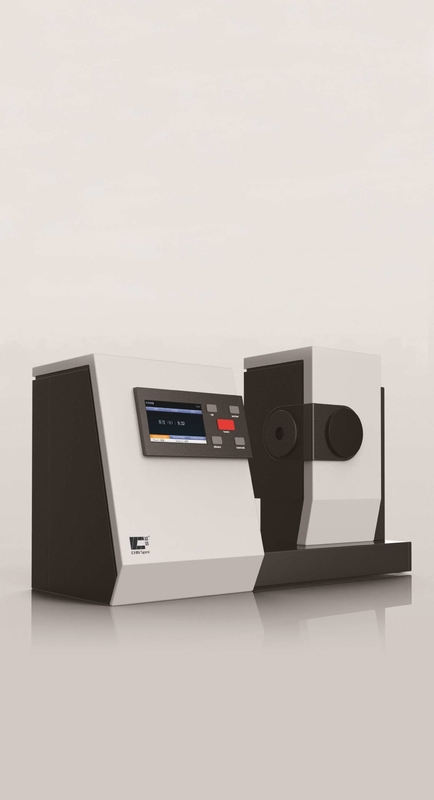

16.5mm Illumination Haze Measurement Instrument 5 Inches
0.01unit Haze Resolution 16.5mm Illumination Haze Measurement Instrument / Transmittance Haze Meter
Color and Haze Meter CS-720/Haze Meter CS-700
It is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.
Part 1. Instrument Introduction
1. Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.
2. It can realize transmittance compensation measurement which can provide higher accuracy test result.
3. Open measurement area, no limit on sample size. Vertical measurement is also available.
4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
5. Instrument is with haze and transmittance measurement software.
Part 2.Instrument Detail
Liquid Measurement Sheet Material Measurement
Cap for Compensation Port 0% Calibration Cap
Part 3. Technical Data
| Type | Haze Meter CS-700 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards |
ASTM D1003/D1044 |
| Parameters | HAZE,Transmittance(T) |
| Spectral Response | CIE Luminosity function y |
| Wavelength | 400-700nm |
| Wavelength Interval | 10nm |
| Geometry | 0/d |
| Measurement Area/Sample Port | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤150mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Power | 220V (with power cable) |
| Working Temperature | 10-40 ℃ |
| Storage Temperature | 0-50℃ |
| Size (LxWxH) | 598mm X 247mm X 366mm |
| Standard Accessory | PC software (Color QC) |
| Optional | Measurement Fixture, Haze standard film |
Part 4. Application Field
