Home > Products > Haze Measurement Instrument > 21mm Aperture Haze Measurement Instrument For Plastic Glass Transparency

21mm Aperture Haze Measurement Instrument For Plastic Glass Transparency

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-720

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton Box; Packing

Delivery Time: 5-7 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

21mm Aperture Haze Measurement Instrument

,

21mm Aperture Haze Meter Plastics

,

USB Interface Haze Meter Plastics

Color::
White And Black
Geometry::
0/d
Interface::
USB-A, USB-B
Transmittance:
0-100%
Memory Storage::
20000 Value
Application::
Haze And Spectral Transmittance ,Color , Clarity Measurement
Aperture Size::
21mm
Haze Measurement Range::
0-100%
Repeatability::
0.1 Unit
Power::
220V(with Power Cable)
Color::
White And Black
Geometry::
0/d
Interface::
USB-A, USB-B
Transmittance:
0-100%
Memory Storage::
20000 Value
Application::
Haze And Spectral Transmittance ,Color , Clarity Measurement
Aperture Size::
21mm
Haze Measurement Range::
0-100%
Repeatability::
0.1 Unit
Power::
220V(with Power Cable)
Product Description

China CHNS d/0 21 aperture size Haze Measurement Instrument For Plastic Glass Transparency



ASTM D1003 Film Haze And Transmittance Measure Instrument Plastic Glass Transparency Tester

High quality ASTM D1003 and ISO haze and spectral transmittance measure instrument


https://www.youtube.com/watch?v=w8T4u4i0m-Q&t=133s



It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.





Part 1. Instrument Advantages

1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.

3). It can realize transmittance compensation measurement which can provide higher accuracy test result.

4). Open measurement area, no limit on sample size.

5). Instrument is with 7 inch touch screen with good human-computer interface.

6). It can realize both horizontal and vertical measurement to measure different kinds of materials.

7). It adopts LED light source whose life time can reach 10 years.

8). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.

9). Small size and light weight which makes it much easier to carry.





Part 2. Application



Plastic sheet haze measurement

Thin film haze and T% measure

Transparent glass haze and transparency measurement

Screen haze and transmittance measurement

Agriculture film haze and spectral transmittance measurement

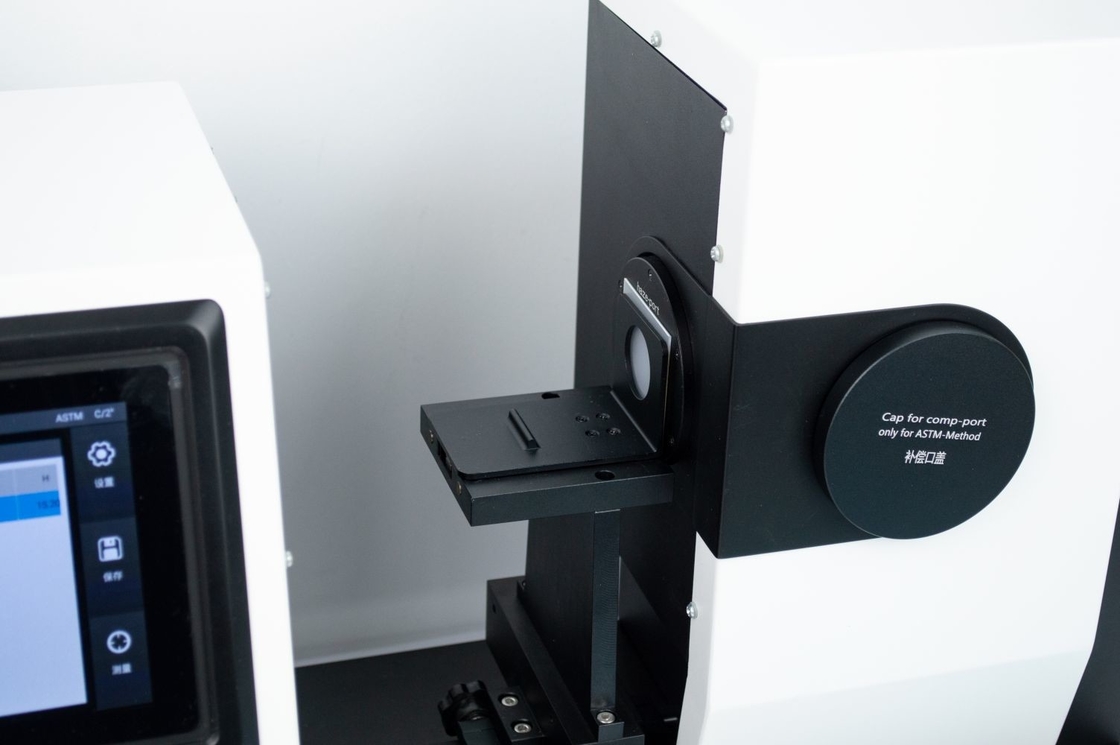

21mm Aperture Haze Measurement Instrument For Plastic Glass Transparency 0

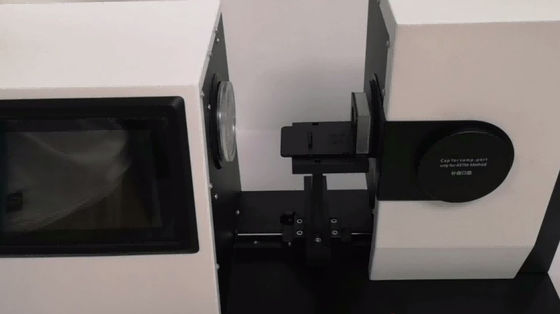

21mm Aperture Haze Measurement Instrument For Plastic Glass Transparency 1

4.Haze Meter / Light Transmission Tester Longest Guarantee Time

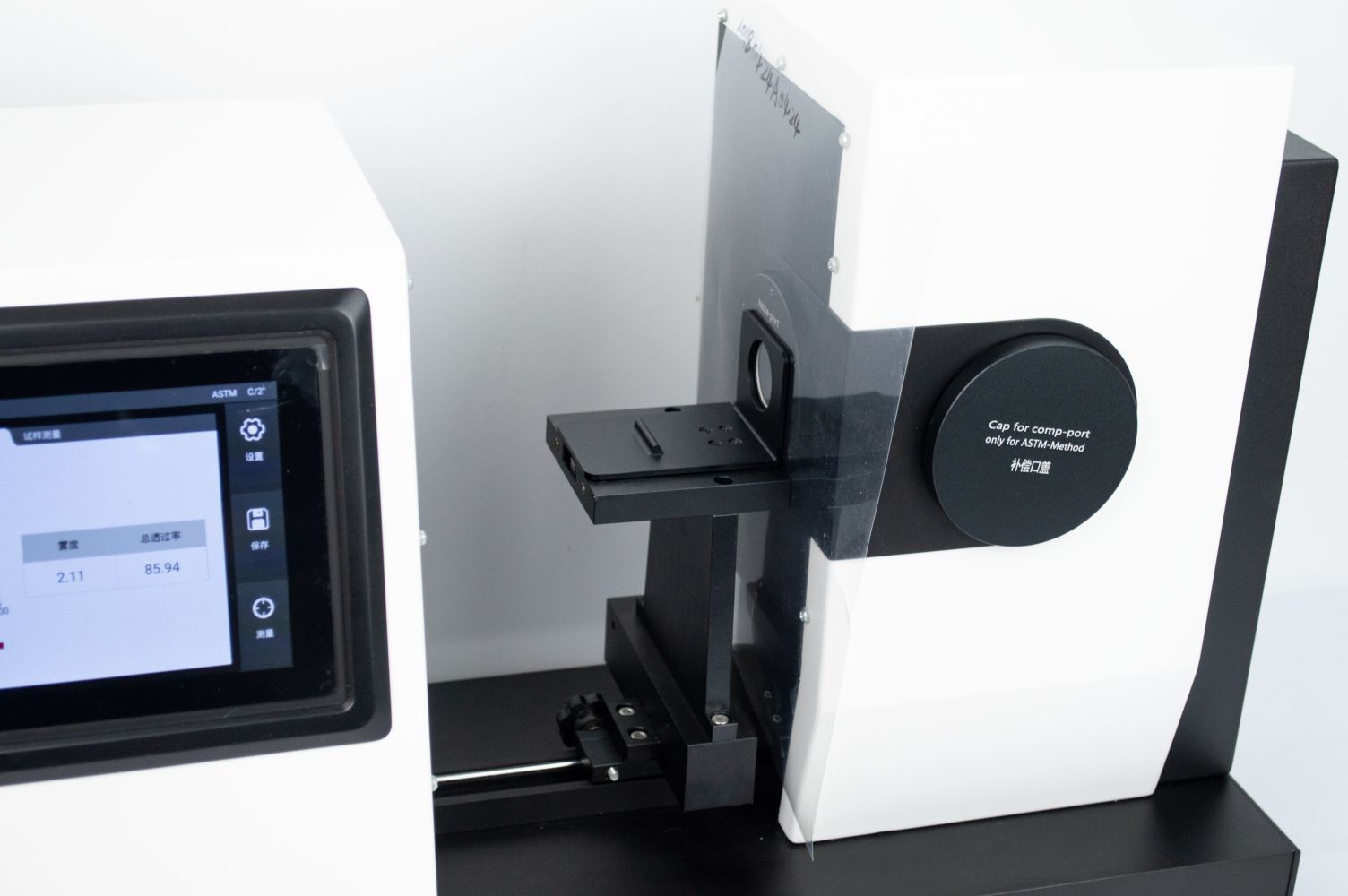

21mm Aperture Haze Measurement Instrument For Plastic Glass Transparency 2



Our Services

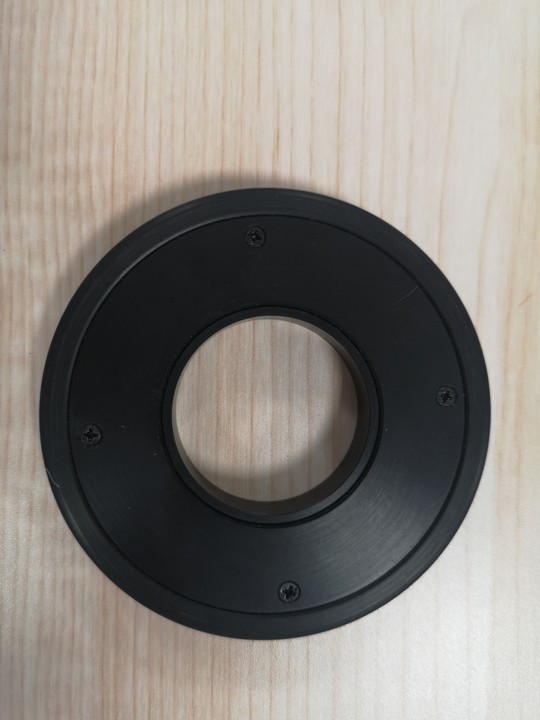

21mm Aperture Haze Measurement Instrument For Plastic Glass Transparency 3



Qty. Name Qty. Name
1 Main Instrument 1 Power Adaptor
1 Operating Manual 1 USB Cable
1 Haze QC Software 1 0% Calibration Cover
1 Compensation Port Cover 1 Warranty Card
