Home > Products > Haze Measurement Instrument > ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110

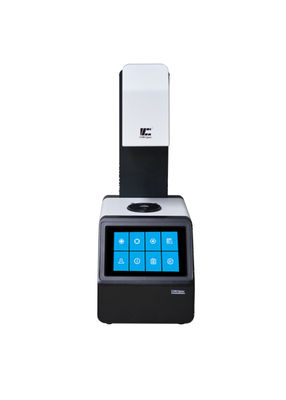

ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: TH-110

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton box with foam package, packing size 66x46x33cm

Delivery Time: 5-7 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
Highlight:

0.05 Repeatability Haze Meter

,

Th-110 Haze Meter

,

0.05 Repeatability Haze Measurement Instrument

Color:
White
Illuminants:
D65,A,C
Test Parameter:
ASTM And ISO (HAZE),Transmittance (T)
Test Apertures:
21mm And 7mm
Instrument Screen:
7 Inches Touch Screen
Haze Repeatability:
Within 0.05
Transmittance Repeatability:
≤0.1 Unit
Geometry:
0/D
Integrating Sphere Size:
154mm
Test Range:
0-100%
Color:
White
Illuminants:
D65,A,C
Test Parameter:
ASTM And ISO (HAZE),Transmittance (T)
Test Apertures:
21mm And 7mm
Instrument Screen:
7 Inches Touch Screen
Haze Repeatability:
Within 0.05
Transmittance Repeatability:
≤0.1 Unit
Geometry:
0/D
Integrating Sphere Size:
154mm
Test Range:
0-100%
Product Description

China CHNSpec D/0 Within 0.05 Haze Repeatability Th-110 Haze Meter



ASTM D1003 Haze Meter For Plastic Sheet Thin Film Haze And Light Transmittance Tester

ASTM D1003 haze meter to Measure Haze and Lunimous transmittance of transparent plastic ,thin film TH-110



Haze Meter Introduction



It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.



ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 0ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 1ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 2ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 3ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 4ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 5ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 6ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 7ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 8ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 9ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 10ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 11ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 12ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 13ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 14ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 15ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 16ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 17ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 18ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 19ASTM and ISO CHNSpec D/0 Haze Meter Within 0.05 Haze Repeatability Th-110 20





Haze and Transmission Tester Advantages



1). It conforms to both ASTM and ISO international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Instrument is with a calibration certification from a third party laboratory.

3). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.

4). Three kinds of illuminants A,C and D65 for haze and total transmittance measurement.

5). 21mm test aperture.

6). Open measurement area, no limit on sample size.

7). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.

8). It adopts LED light source whose lifetime can reach 10 years.





Haze and Transmission Tester Technical Parameter



Model Haze Meter TH-110
Character

ASTM D1003/D1044 and ISO13468/ISO14782 standard for haze measurement and light transmittance measurement.

Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic, film, display screen, packaging and other industries.

Illuminants D65,A,C
Standards ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136
Test Parameter ASTM and ISO (HAZE),Transmittance (T)
Test Apertures 21mm and 7mm
Instrument Screen 7 inches touch screen with Android Software
Haze Repeatability Φ21mm aperture,Standard Deviation: within 0.05(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration)
Transmittance Repeatability ≤0.1 unit
Geometry Transmittance 0/D (0 degree illumination, diffused receiving)
Integrating Sphere Size Φ154mm
Light Source 400~700nm full spectrum LED light source
Test Range 0-100%
Haze Resolution 0.01 unit
Transmittance Resolution 0.01 unit
Sample Size Open space, no size limit
Data Storage Mass Storage, unlimited
Interface USB
Power Supply DC12V (110-240V)
Working Temperature +10 – 40 °C (+50 – 104 °F)
Storage Temperature 0 – 50 °C (+32 – 122 °F)
Size L x W x H:310mmX215mmX540mm



Application

1). Plastic sheet haze and light transmission measurement

2). Thin film haze and spectral transmittance measurement

3). Transparent glass haze and transparency measurement

4). Haze and lunimous transmittance for transparent plastic

5).Agriculture film haze and transmittance measure instrument
