Home > Products > Haze Measurement Instrument > Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-700

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

16.5mm Illumination Haze Meter

,

0.01unit Resolution Haze Meter

,

0.01unit Haze Measurement Instrument

Instrument Color:
White
Product Name:
Haze And Transmission Test Machine
Application:
Glass Haze Measurement
Light Source:
C,D65 And A
Standard:
ASTM And ISO
Power:
110-240V
Warranty:
1 Year
Instrument Weight:
7kgs
Interface:
USB
Wavelength:
400-700nm
Wavelength Interval:
10nm
Geometry:
D/0
Display:
5 Inches
Illumination:
16.5mm
Aperture Size:
21mm
Haze Resolution:
0.01unit
Instrument Color:
White
Product Name:
Haze And Transmission Test Machine
Application:
Glass Haze Measurement
Light Source:
C,D65 And A
Standard:
ASTM And ISO
Power:
110-240V
Warranty:
1 Year
Instrument Weight:
7kgs
Interface:
USB
Wavelength:
400-700nm
Wavelength Interval:
10nm
Geometry:
D/0
Display:
5 Inches
Illumination:
16.5mm
Aperture Size:
21mm
Haze Resolution:
0.01unit
Product Description

0.01unit Haze Resolution 16.5mm Illumination Haze Measurement Instrument / Transmittance Haze Meter



Haze MeterCS-700

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 0Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 1Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 2Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 3Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 4Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 5Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 6Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 7Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 8Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 9Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 10Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 11Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 12Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 13Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 14Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 15Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 16

It is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.



Part 1. Instrument Introduction

1. Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.



Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 17Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 18





2. It can realize transmittance compensation measurement which can provide higher accuracy test result.





Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 19

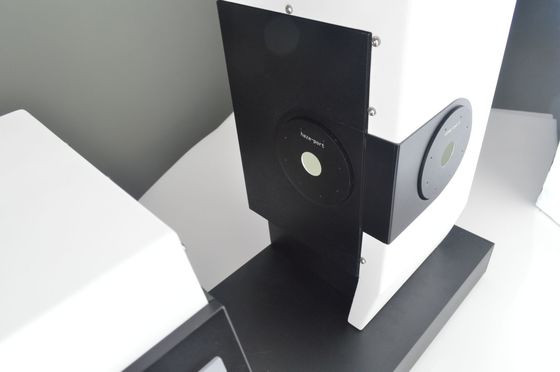

3. Open measurement area, no limit on sample size. Vertical measurement is also available.







Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 20Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 21Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 22





4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.







Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 23





5. Instrument is with haze and transmittance measurement software.









Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 24Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 25





Part 2.Instrument Detail







Liquid Measurement Sheet Material Measurement







Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 26Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 27Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 28









Cap for Compensation Port 0% Calibration Cap



Part 3. Technical Data

Type Haze Meter CS-700
Light Source CIE-A,CIE-C,CIE-D65
Standards

ASTM D1003/D1044

ISO13468/ISO14782

Parameters HAZE,Transmittance(T)
Spectral Response CIE Luminosity function y
Wavelength 400-700nm
Wavelength Interval 10nm
Geometry 0/d
Measurement Area/Sample Port 16.5mm/21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤150mm
Display 5 inch TFT LCD screen
Memory 20000 value
Interface USB
Power 220V (with power cable)
Working Temperature 10-40 ℃
Storage Temperature 0-50℃
Size (LxWxH) 598mm X 247mm X 366mm
Standard Accessory PC software (Color QC)
Optional Measurement Fixture, Haze standard film


Part 4. Application Field





Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination 29





Part 5. Technical Support

1. One year warranty.
