Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-720
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Carton Box; Packing
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Color:: |
White And Black |
Geometry:: |
0/d |
Interface:: |
USB |
Transmittance: |
0-100% |
Memory Storage:: |
20000 Value |
Application:: |
Haze And Spectral Transmittance ,Color , Clarity Measurement |
Aperture Size:: |
21mm |
Haze Measurement Range:: |
0-100% |
Repeatability:: |
0.1 Unit |
Power:: |
110V-240V |
Color:: |
White And Black |
Geometry:: |
0/d |
Interface:: |
USB |
Transmittance: |
0-100% |
Memory Storage:: |
20000 Value |
Application:: |
Haze And Spectral Transmittance ,Color , Clarity Measurement |
Aperture Size:: |
21mm |
Haze Measurement Range:: |
0-100% |
Repeatability:: |
0.1 Unit |
Power:: |
110V-240V |
ASTM D1003 Film Haze And Transmittance Measure Instrument Plastic Glass Transparency Tester
High quality ASTM D1003 and ISO haze and spectral transmittance measure instrument
https://www.youtube.com/watch?v=w8T4u4i0m-Q&t=133s
It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.
Part 1. Instrument Advantages
1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.
2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
3). It can realize transmittance compensation measurement which can provide higher accuracy test result.
4). Open measurement area, no limit on sample size.
5). Instrument is with 7 inch touch screen with good human-computer interface.

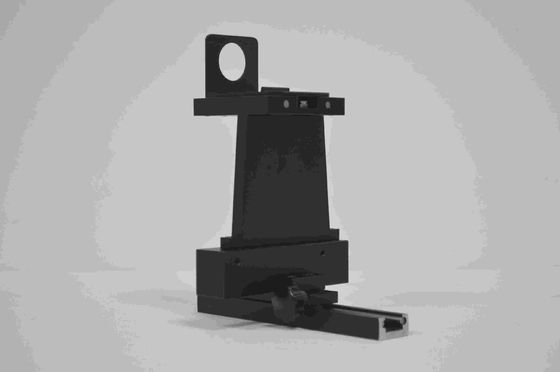

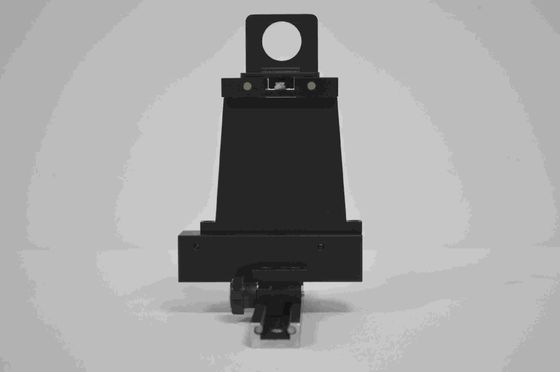

6). It can realize both horizontal and vertical measurement to measure different kinds of materials.
7). It adopts LED light source whose life time can reach 10 years.
8). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
9). Small size and light weight which makes it much easier to carry.
Part 2. Application
Plastic sheet haze measurement
Thin film haze and T% measure
Transparent glass haze and transparency measurement
Screen haze and transmittance measurement
Agriculture film haze and spectral transmittance measurement
4.Haze Meter / Light Transmission Tester Longest Guarantee Time
Our Services
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Adaptor |
| 1 | Operating Manual | 1 | USB Cable |

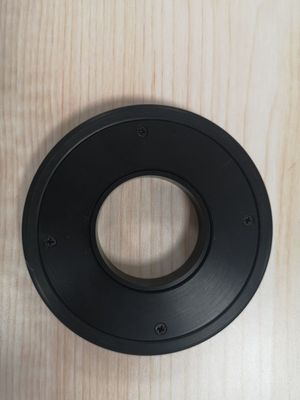

| 1 | Haze QC Software | 1 | 0% Calibration Cover |
| 1 | Compensation Port Cover | 1 | Warranty Card |
