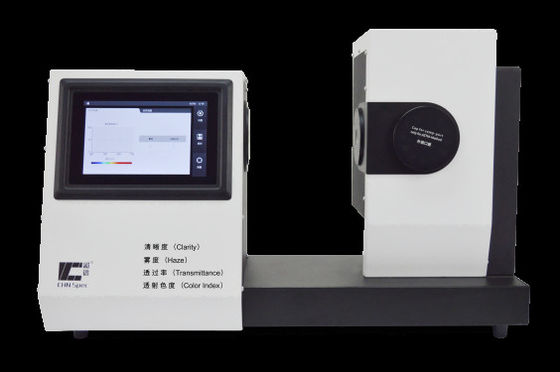

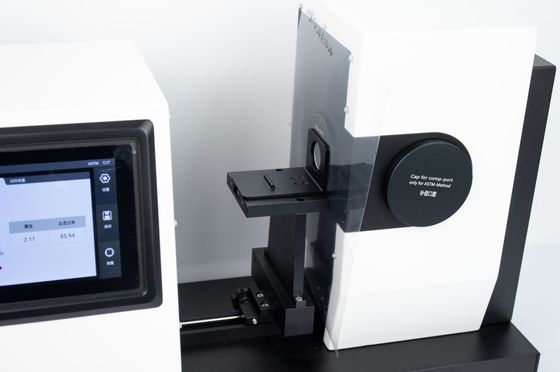

d/0 21 aperture size Haze Measurement Instrument For Plastic Glass Transparency

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-720
Minimum Order Quantity 1
Price negotiable
Packaging Details Carton Box; Packing
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color White And Black Geometry 0/d
Interface USB Transmittance 0-100%
Memory Storage 20000 Value Application Haze And Spectral Transmittance ,Color , Clarity Measurement
Aperture Size 21mm Haze Measurement Range 0-100%
Repeatability 0.1 Unit Power 110V-240V
High Light

haze meter

,

haze measurement unit

Leave a Message
Product Description

ASTM D1003 Film Haze And Transmittance Measure Instrument Plastic Glass Transparency Tester

High quality ASTM D1003 and ISO haze and spectral transmittance measure instrument


https://www.youtube.com/watch?v=w8T4u4i0m-Q&t=133s



It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.





Part 1. Instrument Advantages

1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.

3). It can realize transmittance compensation measurement which can provide higher accuracy test result.

4). Open measurement area, no limit on sample size.

5). Instrument is with 7 inch touch screen with good human-computer interface.

6). It can realize both horizontal and vertical measurement to measure different kinds of materials.

7). It adopts LED light source whose life time can reach 10 years.

8). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.

9). Small size and light weight which makes it much easier to carry.





Part 2. Application



Plastic sheet haze measurement

Thin film haze and T% measure

Transparent glass haze and transparency measurement

Screen haze and transmittance measurement

Agriculture film haze and spectral transmittance measurement



d/0 21 aperture size Haze Measurement Instrument For Plastic Glass Transparency 0

d/0 21 aperture size Haze Measurement Instrument For Plastic Glass Transparency 1

4.Haze Meter / Light Transmission Tester Longest Guarantee Time

d/0 21 aperture size Haze Measurement Instrument For Plastic Glass Transparency 2



Our Services



d/0 21 aperture size Haze Measurement Instrument For Plastic Glass Transparency 3



Qty. Name Qty. Name
1 Main Instrument 1 Power Adaptor
1 Operating Manual 1 USB Cable
1 Haze QC Software 1 0% Calibration Cover
1 Compensation Port Cover 1 Warranty Card
