ISO Portable Haze Meter

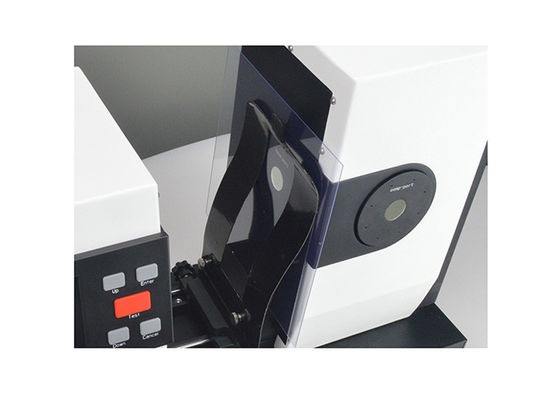

  • ISO Portable Haze Meter
  • ISO Portable Haze Meter
  • ISO Portable Haze Meter
Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-700
Minimum Order Quantity 1
Price negotiable
Packaging Details Carton Box
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month
Product Details
Application Glass/Plastic Haze Measurement Power Supply 110-240V
Light Source A,C And D65 Color White
Standard ASTM And ISO Warranty 1 Year
Weight 7 Kgs Product Name Haze Meter
High Light

Light Transmittance and Haze Tester

,

7 Kgs portable haze meter

,

Glass Portable Haze Meter
Leave a Message
Product Description

Plastic Glass Light Transmittance Haze Machine Fog Machine



It is designed for color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen,etc.

ISO Portable Haze Meter 0





Product Paramenters
Model
CS-700
Measuring Range
0-100% (Haze, transmittance)
Spectral Response
CIE The spectrum functionY/V(λ)
Wavelength Range
400-700nm
Wavelength Interval
10nm
Geometry
0/d
Illumination Area and Aperture
16.5mm/21mm
Resolution
0.01 unit
Sample Size
thickness≤145mm
Display
7 Inches Touch Screen
Data Storage
20,000 values
Interface
USB
Power
110V / 220V / 240V
Working Temperature
0~45℃, Relative humidity 80% or below (at 35 ° C), no condensation
Storage Temperature
-25 ℃ ~ 55 ℃, relative humidity 80% or below (at 35 ℃), no condensation
Instrument Size
598mmX247mmX366mm
(length X width X height)
Standard
PC management software (Color QC)
Optional
Measuring Fixture, Haze Standards, Transmittance Standards, 5mm / 7mm / 10mm Apertures, 40 * 10 Glass Cell
Repeatability
haze＜10%, repeatability≤0.05;
haze≥10%, repeatability≤0.1%;
Transmittance≤0.1%
Light source
Haze / Transmittance: CIE-A,CIE-C,CIE-D65
Chromaticity index: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84
Standards
ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033
Teil7,JIS Z8722 Condition c standard
Parameters
Haze (HAZE),Transmittance (T),Spectral transmittance, Clarity(C%),
CIE Lab, LCh, CIE Luv, XYZ, Yxy, , Hunter Lab Munsell MI,CMYK, Whiteness WI(ASTM E313-00,ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby),
Yellow Index YI(ASTM D1925, ASTM E313-00, ASTM E313-73),
Tint(ASTM E313-00), Heterochromatic index Milm,
APHA, Pt-Co(Index of platinum cobalt), Gardner, Color difference (ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00)





Installation Instructions

ISO Portable Haze Meter 1

ISO Portable Haze Meter 2



Application Scenes

ISO Portable Haze Meter 3



Packaging List

ISO Portable Haze Meter 4





ASTM D1003 Haze Measurement Instrument CS -700 For Haze And Transmittance Measurement
