Transmissivity Meter Haze Measurement Instrument Glass Lenses Haze Measurement

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number TH-100
Minimum Order Quantity 1
Price negotiable
Packaging Details Packing Mateiral: Carton Box; Packing Size:66x46x33cm
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Color White And Black Application Haze And Transmittance Measurement
Geometry 0/d Aperture Size 21mm
Interface USB Haze Measurement Range 0-100%
Transmittance Range 0-100% Repeatability 0.1 Unit
Memory Storage 20000 Value Power 110V-240V
Haze Test Range 0-100%
High Light

haze meter plastics


transmission haze measurement

Leave a Message
Product Description


Transmission Hazemeter, Haze Meter and Transmissivity Meter, Glass Lenses Haze Measurement Meter TH-100




Haze Meter and Transmissivity Meter Brief Introduction


Transparency is an important character for transparent mateiral.It can be represented by haze and total transmittance. Our haze transmittance meter TH-100 is designed for haze and transmittance measurment for plastic sheets and films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials. It does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.


Transmissivity Meter Haze Measurement Instrument Glass Lenses Haze Measurement 0

Transmissivity Meter Haze Measurement Instrument Glass Lenses Haze Measurement 1



Glass Haze Meter Transmittance Haze Meter Technical Data


Model Haze Meter TH-100
Light Source CIE-A,CIE-C,CIE-D65
Standards ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08
Parameters HAZE, Transmittance(T)
Spectral Response CIE Luminosity function Y/V (λ)
Geometry 0/d
Measurement Area/ Aperture Size 16.5mm/21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤145mm
Memory 20000 value
Interface USB
Power DC24V
Working Temperature 10-40 ℃ (+50 – 104 °F)
Size (LxWxH) 310mm X 215mm X 540mm



Hazemeter Advantages


1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.


3). It can realize transmittance compensation measurement which can provide higher accuracy test result.


4). Open measurement area, no limit on sample size.


5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.


6). It can realize both horizontal and vertical measurement to measure different kinds of materials.


7). It adopts LED light source whose lifetime can reach 10 years.



Transmissivity Meter Haze Measurement Instrument Glass Lenses Haze Measurement 2

Transmissivity Meter Haze Measurement Instrument Glass Lenses Haze Measurement 3




Hazemeter Application

haze meter instrument 2.jpg

haze meter instrument 1.jpg

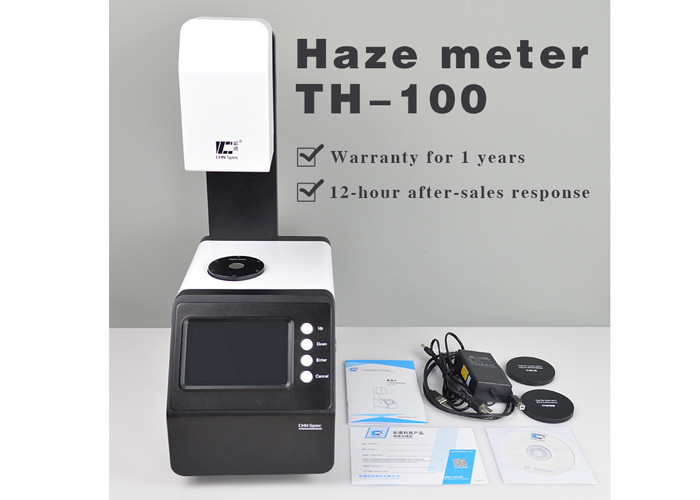

Hazemeter Packing List

haze meter packing list.jpg


Qty. Name Qty. Name
1 Main Instrument 1 Power Adaptor
1 Operating Manual 1 USB Cable
1 Haze QC Software 1 0% Calibration Cover
1 Compensation Port Cover 1 Warranty Card
