CHNSpec Technology （Zhejiang）Co.,Ltd chnspec@colorspec.cn 86--13732210605
Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-700
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Instrument Color: |
White |
Product Name: |
Haze And Transmission Test Machine |
Application: |
Glass Haze Measurement |
Light Source: |
C,D65 And A |
Standard: |
ASTM And ISO |
Power: |
110-240V |
Warranty: |
1 Year |
Instrument Weight: |
7kgs |
Interface: |
USB |
Instrument Color: |
White |
Product Name: |
Haze And Transmission Test Machine |
Application: |
Glass Haze Measurement |
Light Source: |
C,D65 And A |
Standard: |
ASTM And ISO |
Power: |
110-240V |
Warranty: |
1 Year |
Instrument Weight: |
7kgs |
Interface: |
USB |
Haze Meter Conforms to the following international standards
ASTM D1003/D1044, ISO13468, ISO14782, JIS K7105, JIS K7361, JIS K7136

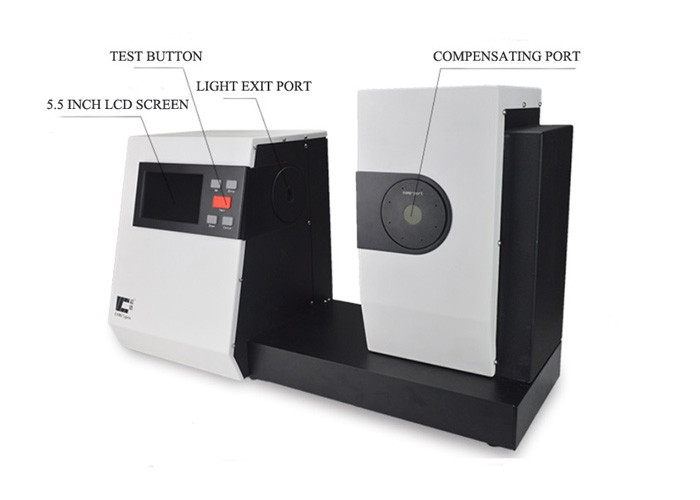

| Type | Haze Meter CS-700 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782 |
| Parameters | HAZE,Transmittance(T) |
| Spectral Response | CIE Luminosity function y |
| Wavelength | 400-700nm |
| Wavelength Interval | 10nm |
| Geometry | 0/d |
| Measurement Area/Sample Port | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤150mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Power | 110-240V |
| Working Temperature | 10-40 ℃ |
| Size (LxWxH) | 598mm X 247mm X 366mm |
Haze and Transmission Test Machine Packing List
