Liquid Transmittance Testing Haze Measurement Instrument 20000 Value Memory

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-700
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month
Product Details
Instrument Color White Product Name Haze Meter
Application Glass/Plastic Haze Measurement Light Source C,D65 And A
Standard ASTM And ISO Power 110-240V
Warranty 1 Year Function Haze Measurement
Instrument Weight 7kgs
High Light

haze meter plastics

,

transmission haze measurement

Leave a Message
Product Description

Simple Operation Transmittance Hazemeter for Liquid Transmittance Testing




Liquid Transmittance Hazemeter Technical Data

Type Haze Meter CS-700
Light Source CIE-A,CIE-C,CIE-D65
Standards ASTM D1003/D1044,ISO13468/ISO14782
Parameters HAZE,Transmittance(T)
Spectral Response CIE Luminosity function y
Wavelength 400-700nm
Wavelength Interval 10nm
Geometry 0/d
Measurement Area/Sample Port 16.5mm/21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤150mm
Display 5 inch TFT LCD screen
Memory 20000 value
Interface USB
Power 220V
Working Temperature 10-40 ℃
Storage Temperature 0-50 ℃
Size (LxWxH) 598mm X 247mm X 366mm





Liquid Transmittance Hazemeter Application



Haze is measured with a wide angle scattering test in which light is diffused in all directions which results in a loss of contrast. That percentage of light that when passing through that deviates from the incident beam by greater than 2.5 degrees on average is defined as haze.



Digital haze meter CS-700 can measure haze and transmittance for transparent liquid,plastic, glass, screen with very high accuracy and conforms to both ASTM and ISO standard.





Liquid Transmittance Hazemeter Advantages



1). Three kinds of light sources A,C and D65 for haze measurement.
2). It can realize transmittance compensation measurement which can provide higher accuracy test result.
3). Open measurement area, no limit on sample size. Vertical measurement is also available.
4). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.

5). Conform to ASTM and ISO standard.
Haze Measurement In Plastic



Liquid Transmittance Hazemeter Packing List
Packing Material: Foam and Carton Box
Packing Size:70x34x56cm
Gross Weight:16kgs

Qty. Name Qty. Name
1 Main Instrument 1 Power Line
1 Operating Manual 1 USB Cable
1 Driving Software 1 0% Calibration Tile
1 Haze PC Software 1 Packing List
1 Cap for Compensate Port (For ASTM) 1 Warranty Card

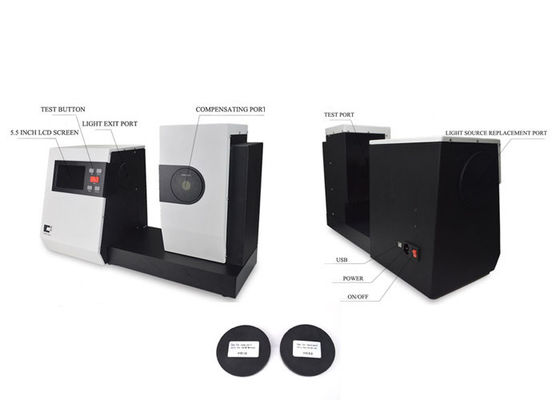

Liquid Transmittance Testing Haze Measurement Instrument 20000 Value Memory 1

Liquid Transmittance Testing Haze Measurement Instrument 20000 Value Memory 2





Liquid Transmittance Hazemeter RFQ



Q: Are you trading company or manufacturer?
A: We are factory located in Hangzhou city. Welcome to come to visit and purchase from us.
Q: How long is your delivery time?
A: Generally it is 35-40 working days.
Q: What is your terms of payment?
A: Payment is 100% T/T in advance.
Q: What's your MOQ?
A: Our MOQ is 1 set. If you order more than 5 sets, we will give quantity discount.
