High Performance Transmittance Haze Meter CIE Luminosity Function Y Spectral Response
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-700 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm |
| Delivery Time | 5-7 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Instrument Color | White | Product Name | Haze Meter |
|---|---|---|---|
| Application | Glass/Plastic Haze Measurement | Light Source | C,D65 And A |
| Standard | ASTM And ISO | Power | 110-240V |
| Warranty | 1 Year | Function | Haze Measurement |
| Instrument Weight | 7kgs | ||
| High Light | haze meter plastics,haze measurement unit |
||
Product Description
Haze Measurement Instrument for Transparent Material Total Luminous Transmittance Test
Haze Measurement Instrument Technical Data
| Type | Haze Meter CS-700 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782 |
| Parameters | HAZE,Transmittance(T) |
| Spectral Response | CIE Luminosity function y |
| Wavelength | 400-700nm |
| Wavelength Interval | 10nm |
| Geometry | 0/d |
| Measurement Area/Sample Port | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤150mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Power | 220V |
| Working Temperature | 10-40 ℃ |
| Storage Temperature | 0-50 ℃ |
| Size (LxWxH) | 598mm X 247mm X 366mm |
| Standard Accessory | PC software (Color QC) |
| Optional | Measurement Fixture, Haze standard film |
Haze Measurement Instrument Application
Haze is measured with a wide angle scattering test in which light is diffused in all directions which results in a loss of contrast. That percentage of light that when passing through that deviates from the incident beam by greater than 2.5 degrees on average is defined as haze.
Digital haze meter CS-700 can measure haze and transmittance for transparent plastic, glass, screen with very high accuracy and conforms to both ASTM and ISO standard.
Haze Measurement Instrument Advantages
1). Three kinds of light sources A,C and D65 for haze measurement.
2). It can realize transmittance compensation measurement which can provide higher accuracy test result.
3). Open measurement area, no limit on sample size. Vertical measurement is also available.
4). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
5). Conform to ASTM and ISO standard.
Haze Meter Packing List
Packing Material: Foam and Carton Box
Packing Size:70x34x56cm
Gross Weight:16kgs
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | 0% Calibration Tile |
| 1 | Haze PC Software | 1 | Packing List |

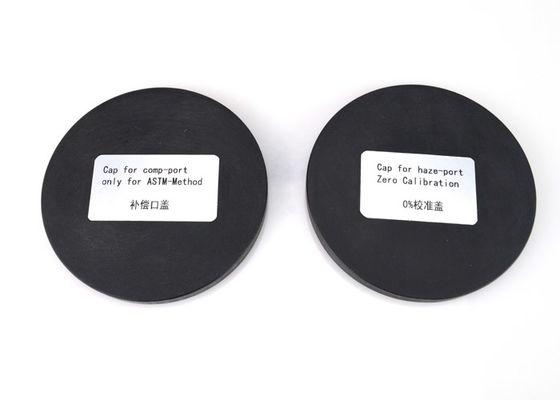

| 1 | Cap for Compensate Port (For ASTM) | 1 | Warranty Card |
