110V-240V Power Haze Meter Plastics , Haze Measurement Unit With Free PC Software
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-700 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm |
| Delivery Time | 5-7 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Instrument Color | White | Product Name | Haze Meter |
|---|---|---|---|
| Application | Glass/Plastic Transparency Measurement | Light Source | C,D65 And A |
| Standard | ASTM And ISO | Power | 110-240V |
| Warranty | 1 Year | Function | Haze Measurement |
| Instrument Weight | 7kgs | ||
| High Light | transmission haze measurement,haze measurement unit |
||
Product Description
Transparent Film and Glass Haze Meter for Total Transparency Measurement
Haze Meter Introduction
Haze meter measures the amount of light that is diffused or scattered when passing through the transparent sample.Transparency is important because a material needs to be more or less see-through depending on its practical usage for example grocery bag needs the light to be more diffused so that less can be seen,while food packing film needs the light to be less diffused so that the contents can be seen clearly.Haze meters are necessary to determine which material is needed for which practical purpose.
CS-700 haze meter is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.
Haze Meter Working Principle
When a beam of parallel light hits the sample and enters the integrating sphere, it is scattered on the sphere inner white coating, the total transmittance is measured when the optical trap outlet on the sphere is closed. When the optical trap is opened, haze will be measured.
Haze Meter Advantage
1). It can realize transmittance compensation measurement which can provide higher accuracy test result.
2). Open measurement area, no limit on sample size. Vertical measurement is also available.
3). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
4). Instrument is with free PC software for haze and transmittance measurement.
2). Open measurement area, no limit on sample size. Vertical measurement is also available.
3). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
4). Instrument is with free PC software for haze and transmittance measurement.
Haze Meter Standards
ASTM D1003/D1044, ISO13468, ISO14782, JIS K7105, JIS K7361, JIS K7136
Haze Meter Technical Data
| Type | Haze Tester CS-700 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782 |
| Parameters | HAZE,Transmittance(T) |
| Spectral Response | CIE Luminosity function y |
| Wavelength | 400-700nm |
| Wavelength Interval | 10nm |
| Geometry | 0/d |
| Measurement Area/Sample Port | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤150mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Power | 110-240V |
| Working Temperature | 10-40 ℃ |
| Storage Temperature | 0-50 ℃ |
| Size (LxWxH) | 598mm X 247mm X 366mm |
| Standard Accessory | PC software (Color QC) |
| Optional | Measurement Fixture, Haze standard films |

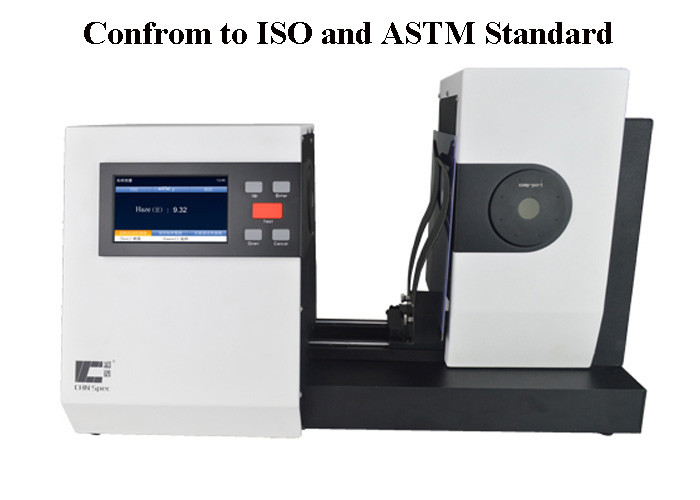

Haze Meter Pictures
Haze Meter Packing List
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | 0% Calibration Tile |
| 1 | Haze PC Software | 1 | Packing List |
| 1 | Cap for Compensate Port (For ASTM) | 1 | Warranty Card |
