Simple Operation Haze Measurement Instrument Plastic Film Transmittance
| Place of Origin | China |
|---|---|
| Brand Name | CHN spec |
| Certification | CE |
| Model Number | CS-700 |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Inner Box: Foam Package Outer Box: Carton box Size:70x34x56cm |
| Delivery Time | 5-7 days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Instrument Color | White | Product Name | Haze Meter |
|---|---|---|---|
| Application | Glass/Plastic Film Haze Measurement | Light Source | C,D65 And A |
| Standard | ASTM And ISO | Power | 110-240V |
| Warranty | 1 Year | Function | Haze Measurement |
| Instrument Weight | 7kgs | ||
| High Light | haze meter plastics,transmission haze measurement |
||
Product Description

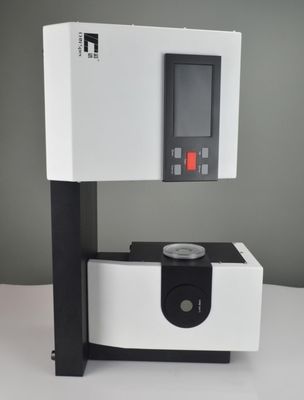

Simple Operation Haze Measurement Instrument Plastic Film Transmittance
1. Haze Measurement Instrument Description
Haze Measurement Instrument is also called haze meter,it is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.
2. Haze Measurement Instrument Advantages
1). Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.
2). It can realize transmittance compensation measurement which can provide higher accuracy test result.
3). Open measurement area, no limit on sample size. Vertical measurement is also available.
4). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
5). Instrument is with haze and transmittance measurement software.
6). Instrument Detail Pictures
3. Haze Measurement Instrument Technical Data
| Type | Haze Tester CS-700 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782 |
| Parameters | HAZE,Transmittance(T) |
| Spectral Response | CIE Luminosity function y |
| Wavelength | 400-700nm |
| Wavelength Interval | 10nm |
| Geometry | 0/d |
| Measurement Area/Sample Port | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤150mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Power | 220V |
| Working Temperature | 10-40 ℃ |
| Storage Temperature | 0-50 ℃ |
| Size (LxWxH) | 598mm X 247mm X 366mm |
| Standard Accessory | PC software (Color QC) |
| Optional | Measurement Fixture, Haze standard film |
4. Haze Measurement Instrument Application
5. Haze Measurement Instrument Warranty Time
a. One Year Guarantee Time
6. Haze Measurement Instrument Company Information
Our CHNSpec Technology Co., Ltd are specialized on manufacturing haze meter, spectrophotometers, colorimeters and gloss meters. Our products have gotten 10 Invention Patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. If any need or questions about our products, please do not hesitate to contact me. You are warmly welcome to visit and purchase from us.
7. Haze Measurement Instrument FAQ
Q: Are you trading company or manufacturer?
A: We are factory located in Hangzhou city. Welcome to come to visit and purchase from us.
Q: How long is your delivery time?
A: Generally it is 1-3 working days if the goods are in stock.If not, we will need 3-15 working days to prepare the products.
Q: Do you provide samples ? is it free or extra?
A: Yes, and customer need to pay for the freight.
Q: What is your terms of payment?
A: Payment is 100% T/T in advance.
Q: What's your MOQ?
A: Our MOQ is 1 set. If you order more than 5 sets, we will give quantity discount.
