Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number TH-110
Minimum Order Quantity 1
Price negotiable
Packaging Details Carton box with foam package, packing size 66x46x33cm
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 per month
Product Details
Color White Illuminants D65,A,C
Test Parameter ASTM And ISO (HAZE),Transmittance (T) Test Apertures 21mm And 7mm
Instrument Screen 7 Inches Touch Screen Haze Repeatability Within 0.05
Transmittance Repeatability ≤0.1 Unit Geometry 0/D
Integrating Sphere Size 154mm Test Range 0-100%
High Light

White Haze Measurement Unit

,

Sphere Haze Meter

,

Haze Meter White

Leave a Message
Product Description

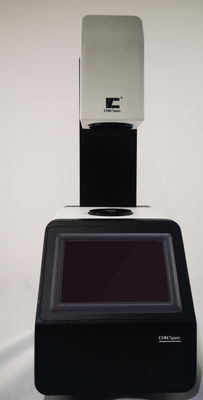

0-100% Test Range D/0 154mm Integrating Sphere Size 21mm And 7mm Test Apertures Th-110 Haze Meter



ASTM D1003 Haze Meter For Plastic Sheet Thin Film Haze And Light Transmittance Tester

ASTM D1003 haze meter to Measure Haze and Lunimous transmittance of transparent plastic ,thin film TH-110



Haze Meter Introduction



It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.



Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 0Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 1Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 2Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 3Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 4Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 5Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 6Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 7Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 8Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 9Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 10Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 11Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 12Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 13Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 14Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 15Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 16Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 17Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 18Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 19Haze Meter Integrating Sphere Size 21mm 7mm 0 - 100% Test Range 20





Haze and Transmission Tester Advantages



1). It conforms to both ASTM and ISO international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Instrument is with a calibration certification from a third party laboratory.

3). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.

4). Three kinds of illuminants A,C and D65 for haze and total transmittance measurement.

5). 21mm test aperture.

6). Open measurement area, no limit on sample size.

7). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.

8). It adopts LED light source whose lifetime can reach 10 years.





Haze and Transmission Tester Technical Parameter



Model Haze Meter TH-110
Character

ASTM D1003/D1044 and ISO13468/ISO14782 standard for haze measurement and light transmittance measurement.

Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic, film, display screen, packaging and other industries.

Illuminants D65,A,C
Standards ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136
Test Parameter ASTM and ISO (HAZE),Transmittance (T)
Test Apertures 21mm and 7mm
Instrument Screen 7 inches touch screen with Android Software
Haze Repeatability Φ21mm aperture,Standard Deviation: within 0.05(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration)
Transmittance Repeatability ≤0.1 unit
Geometry Transmittance 0/D (0 degree illumination, diffused receiving)
Integrating Sphere Size Φ154mm
Light Source 400~700nm full spectrum LED light source
Test Range 0-100%
Haze Resolution 0.01 unit
Transmittance Resolution 0.01 unit
Sample Size Open space, no size limit
Data Storage Mass Storage, unlimited
Interface USB
Power Supply DC12V (110-240V)
Working Temperature +10 – 40 °C (+50 – 104 °F)
Storage Temperature 0 – 50 °C (+32 – 122 °F)
Size L x W x H:310mmX215mmX540mm



Application

1). Plastic sheet haze and light transmission measurement

2). Thin film haze and spectral transmittance measurement

3). Transparent glass haze and transparency measurement

4). Haze and lunimous transmittance for transparent plastic

5).Agriculture film haze and transmittance measure instrument
