Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: DG60pro
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: cartoon box
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Mesurement Range: |
0-1000GU |
Test Angle: |
60 |
Testing Aperture: |
23*7mm |
Test Stability: |
0.2% |
Screen Size: |
135*240 |
Weight: |
116G |
Size: |
84*70*17mm |
Mesurement Range: |
0-1000GU |
Test Angle: |
60 |
Testing Aperture: |
23*7mm |
Test Stability: |
0.2% |
Screen Size: |
135*240 |
Weight: |
116G |
Size: |
84*70*17mm |

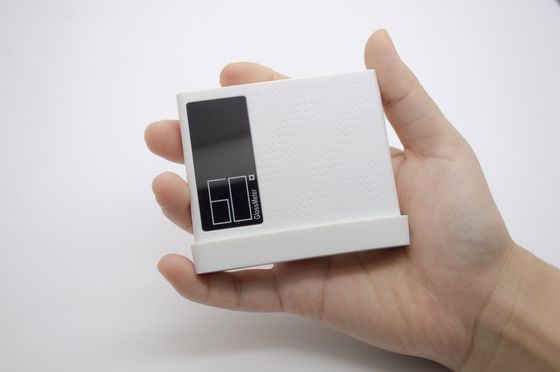

Auto Calibration 60 Testing Angle Gloss Meter Measurement Range 0-1000GU
Gloss Meter DG60 Serie
ISmall —— Only 80 grams weight,size as small as name card
l Accurate —— Pass metrological certification
l Fast —— Single measure time less than 1S
l Long —— Continuous measure 10000 times after rechargeable
l Auto Calibration ——no need manual calibration, measure
immediately after power on, intelligent
l Calibration base,Anti-pollution, calibration at any time,to ensure long-term accuracy .
2. Technical Parameters
| Model | DG60 SE | DG60 Pro | DG60 MAX |
| Calibration | Automatic | ||
| Measure Angle | 60° | ||
| Parameter | Gloss(GU) | ||
| Aperture | 23*7mm | ||
| Measure range | 0-200GU | 0-1200GU | 0-2000GU |
| Stability | 1GU | 0-100:0.1GU;＞100:1GU | |
| Repeatability | 1 | ±0.1 / ±0.1% | 0.1 / 0.1% |
| Measure time | Less than 1s | ||
| Battery | Rechargeable, 5000 times continuous tests | Rechargeable, 15000 times continuous tests | Rechargeable, 30000 times continuous tests |
| Display | IPS full color screen,135*240,1.14inch | ||
| Interface | USB | USB,Bluetooth | |
| Working temperature | 0-40℃ | ||
| Humidity | ＜85%,with no condensation | ||
| Accessories | USB cable,Straps, Manual,Calibration base,Cleaning cloth | ||
| Weight | 80g | 116g | |
| Size | 84mm*70mm*17mm | ||
1.Features:
3. Application
Building Material Glass Cellphone
Ceramics Automobile Hardware
4.Technical Support
1.One year warranty
