Repeatability 0.1GU Digital Gloss Meter Non Contact Gloss Measuring System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Test Angle | 60 Degree | Test Range | 0-1000GU |
|---|---|---|---|
| Repeatability | 0.1GU | Measurement Spot(mm) | 25x55 |
| Measurement Mode | Continuous Test And Single Test | Measurement Time | Less Than 0.5s |
| Weight | About 60kgs | Language | English |
| Interface | USB | Working Temperature | 0-40 ℃ |
| High Light | Repeatability 0.1GU Digital Gloss Meter,Non Contact Gloss Measuring System,Non Contact Digital Gloss Meter |
||
Product Description
Repeatability 0.1GU Digital Gloss Meter Non Contact Gloss Measuring System
Inline Non-contact Gloss Measuring System Gloss Meter
Inline Gloss Meter Introduction
The non-contact on-line gloss measuring system provides products’ glossy data for production gloss quality control, to improve quality control level and save operating expenses. The system is easy to install and manage, can be found through real-time control and solve the problem of gloss without interrupting production.
Inline Gloss Meter Advantages
1). Non-contact : 100% online gloss measurement, non-contact, non-destructive gloss measurement
2). Automatically online gloss measurement
100mm measurement distance allows instrument to move away from the moving products on production line to provide flexible online installation condition and reduce the possibility of damage to equipment and materials.
3). Adjustable Measurement Height
The measurement height is adjustable to make it suitable for measuring materials with difference thickness.
4). Can measure material with angles (irregular material)
Angle is adjustable to ensure that the product measuring surface and optical path is 60 °, so it is also suitable to measure products with difference thickness.
Inline Gloss Meter Tecchnical Data
| Test Angles | 60 degree |
| Measurement Spot(mm) | 25x55 |
| Measurement Range | 0-1000GU |
| Stability | 0.1GU |
| Measurement Mode | Continuous Test and Single Test |
| Measurement Repeatability |
0-100GU:0.3GU 100-1000GU:0.3%GU |
| Measurement Time | Less than 0.5s |
| Instrument Size(mm) |
1500x700x1200 (Length x Width x Height) We can also custom made the size according to the customer’s requirement |
| Weight | About 60kgs |
| Language | English |
| Interface | USB |
| Gloss QC Software | Including |
| Working Temperature | 0-40℃ |
| Humidity | Less than 85%, no condensation |
| Packing List | Gloss Sensor, Instrument supports, Calibration tile, Power Adaptor, Gloss Color QC software |

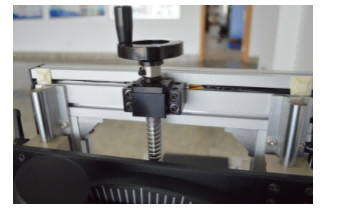

Inline Gloss Meter Pictures
