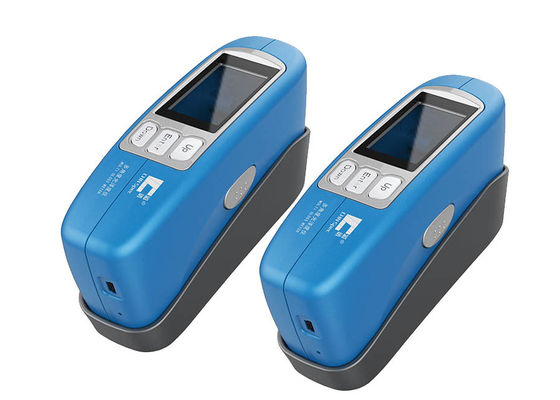

0-1000GU Single Angle Portable Gloss Meter , Gloss Level Measurement 0.5s Test Time

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CS-300
Minimum Order Quantity 1
Price negotiable
Packaging Details Inner Box: Foam Package Outer Box: Carton box Size:25x23x12cm
Delivery Time 5-7 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Angle 60° Test Range 60°:0-1000GU
Resolution 0.1GU Accuracy Conform To JJG 696 Standard For First Class Gloss Meter
Test Time Less Than 0.5s Data Storage 100 Standard Samples; 10000 Test Samples
Size 165*51*77mm Single Machine Weight 400g
Language Chinese And English Battery Capacity 3000mAh Lithium Battery
High Light

tri gloss meter

,

mini gloss meter

Leave a Message
Product Description

Hot Sale Tiles Single Angle Gloss Meter Calibration With Cheap Price





Introduction:



Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics,granite tiles, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on. And The single angle glossmeters could be widely used for measuring the glossiness of building material, electroplate, plastic products,metal products, ceramic products and automobile accessories, etc.





Specifications:



Model CS-300
Test Angle 60°
Test light spot(mm) 60°:9*15
Test range 60°:0-1000GU
Resolution 0.1GU
Test modes Simple mode, standard mode and sample testing mode
Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy Conform to JJG 696 standard for first class gloss meter
Test time 0.5s
Data storage 100 standard samples; 10000 test samples
Size(mm) 165*51*77 (L*W*H)
Weight About 400g
Language Chinese and English
Battery capacity 3000mAh lithium battery
Port USB, Bluetooth (optional)
Upper-PC Software Include
Working Temperature 0-40℃
Working Humidity <85%, no condensation
Accessories 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification





Competitive Advantage:



1). Large Battery Capacity

We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.



2). High Precision

Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering center of the Ministry of Education in China.



3). Super Stability (Patent Right No.: ZL2012201796876)

Every gloss meter made by us has done the following test:

17000 vibrationtests;

412 calibration tests;

43200 stability tests;

110 hours of accelerated aging test.



4). Comfortable Grab Feeling

The shell is made by Dow Corning TiSLV material, a desirable elastic material.



5). Free Color QC Software
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
0-1000GU Single Angle Portable Gloss Meter , Gloss Level Measurement 0.5s Test Time 0





Packing List:



Packing Material:Foam with carton box

Packing Size:230x220x120mm

Packing Weight:0.56kgs

Delivery Time:1-5 working days according to the type and quality ordered.

Qty. Name Qty. Name
1 Main Instrument 1 Charger Head
1 Operating Manual 1 USB Cable
1 PC Software 1 Verification Certification
1 Packing List 1 Operating Manual

0-1000GU Single Angle Portable Gloss Meter , Gloss Level Measurement 0.5s Test Time 1
