Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: CS3000s
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: cartoon box
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Mesurement Range: |
0--600GU |
Repeatability: |
0.2GU(0-100GU)0.2%(100GU-600GU) |
Reproducibility: |
1.0GU(0-100GU)1.0%(100-600GU) |
Size: |
350*300*200mm |
Weight: |
4.5kg |
Mesurement Range: |
0--600GU |
Repeatability: |
0.2GU(0-100GU)0.2%(100GU-600GU) |
Reproducibility: |
1.0GU(0-100GU)1.0%(100-600GU) |
Size: |
350*300*200mm |
Weight: |
4.5kg |

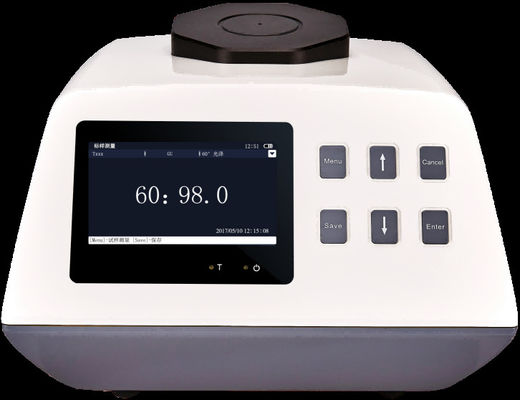

Tiny Aperture Benchtop Gloss Meter for Mobile Phone Accessories Gloss Measurement
Tiny Aperture Benchtop Gloss Meter Introduction
Tiny aperture gloss meter is with 2x3mm aperture to make it suitable for gloss measurement on curved surface and extra small products.
Tiny Aperture Benchtop Gloss Meter Application
Tiny aperture gloss meter can be widely used for gloss meausrement of electroplate products, keyboards,light cover, toys,metal bolt,spon,coins,mobile phone accessories,etc.
Tiny Aperture Benchtop Gloss Meter Advantages
1. Tiny aperture 2mm gloss measurement
2. Design for curved surface and extra small products gloss measurement
3. Five inches high resolution color screen to show test result
4. Simple and statistic mode to meet all gloss measurement requirement
5. International leading level repeatilibility : double light paths technology, adopts Japan sensor and US processor chips for best repeatability
6. Powerful Free PC software
7. Chargebale large lithium battery for 50000 continuous tests
Tiny Aperture Benchtop Gloss Meter Technical Data
Model | CS-3000S |
Test Angle | 60 Degree |
Measurement Range | 0-1000 GU |
Repeatability |
0.2 GU (0-100GU) 0.2% GU (100-1000GU) |
Screen | 5 inches color screen |
Light Source Life Time | 10 years, 3 million tests |
Storage Memory | 100 pcs targets;10000 pcs of samples |
Language | Chinese and English |
Working Temperature |
0-45 ℃ relative humidity 80% or less (at 35℃) with no condensation |
Interface | USB |
Size | 350x300x200mm (LxWxH) |
Power | Chargebale lithium battery, 7.4V/6000mAh |
Weight | 4.5kgs |
Standard Accessories | Calibration tile, AC power adapter, USB cable, operate manual,verification certification |
