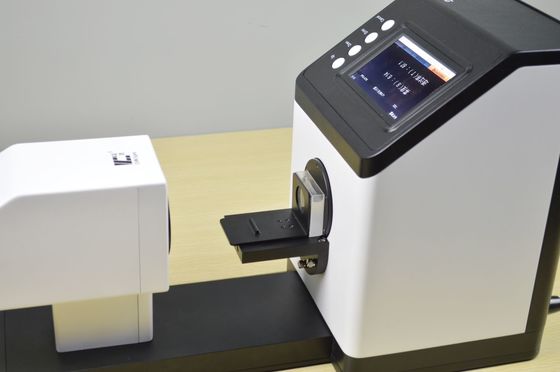

TH 100 0/d 21mm dual methods Transmittance Haze Meter for haze color text
|Haze Resolution||0.01||Haze Repeatability||0.08|
|Spectral Response||CIE Luminosity Function Y/V||Test Aperture Size||21mm|
|Screen Size||5 Inches||Memory||20000value|
|Transmittance Repeatability||0.1 Unit|
haze measurement unit

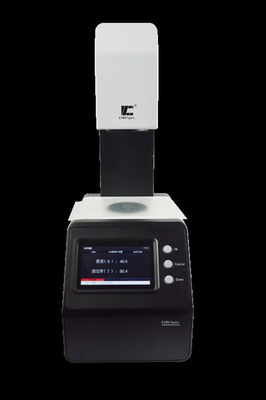

Haze Meter TH-100 Introduction
It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.
Part 1. Instrument Advantages
1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.
2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
3). It can realize transmittance compensation measurement which can provide higher accuracy test result.
4). Open measurement area, no limit on sample size.
5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials.
7). It adopts LED light source whose lifetime can reach 10 years.
8). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
9). Small size and light weight which makes it much easier to carry.
Part 2. Application
Plastic Sheet Film Glass Screen
Part 3. Technical Data
|Type||Haze Meter TH-100|
|Standards||ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08|
|Spectral Response||CIE Luminosity function Y/V (λ)|
|Measurement Area/ Aperture Size||16.5mm/21mm|
|Sample Size||Thickness ≤150mm|
|Working Temperature||10-40 ℃ (+50 – 104 °F)|
|Storage Temperature||0-50℃ (+32 – 122 °F)|
|Size (LxWxH)||310mm X 215mm X 540mm|
|Standard Accessory||Free PC software (Haze QC), one pcs of haze standard plate|
|Ex Works Price for Final User||US$2000|
