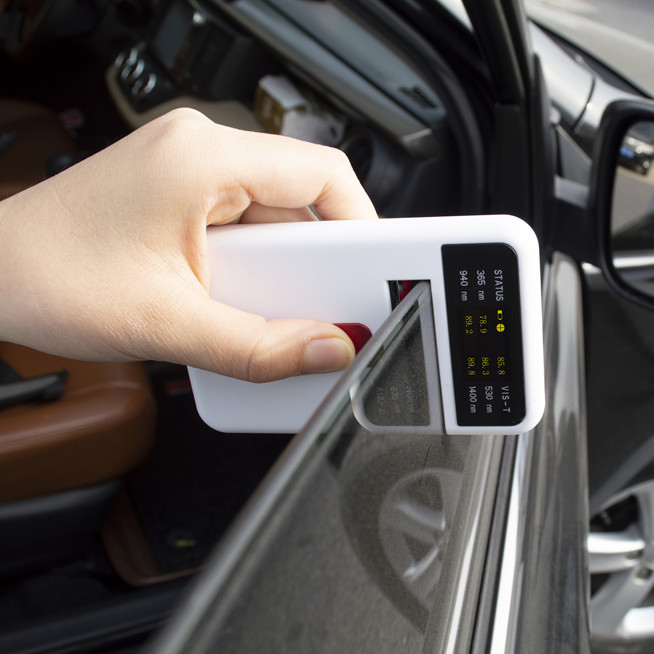

Handheld Portable Transmittance Meter For Tint Visible Light UV IR

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number CT23
Minimum Order Quantity 1
Price negotiable
Delivery Time 5-7 days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 1000 per month
Product Details
Screen Full Color Display, 135*240, 1.14 Inch Full Color Display, 135*240, 1.14 Inch Full Color Display, 135*240, 1.14 Inch Calibration Manual + Automatic
Sample Thickness 13mm (max.) Battery Volume 750mA
Test Index Ultraviolet (peak Wavelength 365nm) Visible Light (peak Wavelength 530nm) Infrared (peak Wavelength 940nm)
High Light

Light Transmittance Meter Handheld

,

Visible Light Transmittance Meter

,

Tint Light Transmittance Meter

Leave a Message
Product Description

China CT23 Portable Transmittance Meter For Tint Meter Tester Visible Light UV IR Handheld Light Transmission Mete

Portable Transmittance Tester CT Series Introduction



CT-23 CT-25

Part 1. Instrument Advantage

1. Simple operation and fast to get the result, as long as the sample is placed in the test area, the test result will be displayed.

2. It can measure the transmittance of UV light, visible light, and infrared light.

3. It adopts parallel light path design, sample measurement thickness can reach 13mm

4. The instrument has a data lock function. After the test, press the HOLD key on the instrument to lock the test data, and the test sample data will still remain on the display interface after the sample is taken away.

5. Digital display, wide measuring range, high resolution.

6. Two calibration modes: Manual calibration and automatic calibration for easy usage

7. Small size and non-slip design, easy to grasp and carry for outdoor test

8. Rechargeable lithium battery, no need to take time to replace batteries.



Part 2. Technical Data

Name Portable Transmittance Tester Portable Transmittance Tester
Model CT-23 CT-25
Geometry Transmission Transmission
Calibration Manual + Automatic Manual + Automatic
Test Index

Ultraviolet (peak wavelength 365nm)

Visible light (peak wavelength 530nm)

Infrared (peak wavelength 940nm)

Ultraviolet (peak wavelength 365nm)

Visible light (peak wavelength 530nm)

Infrared (peak wavelength 940nm)

Infrared (peak wavelength 1400nm)

Visible light (380nm-760nm,conform to CIE photopic function standard)

Test Accuracy ±2% ±2%
Display Resolution 0.10% 0.10%
Sample Thickness 13mm (max.) 13mm (max.)
Instrument Size 115* 70* 14mm 115* 70* 14mm
Test Time Less than 1s Less than 1s
Battery Volume 750mA 750mA
Power Supply 5V/1A 5V/1A
Screen Full color display, 135*240, 1.14 inch Full color display, 135*240, 1.14 inch
Recharging Interface USB USB
Working Temperature 0-40℃ 0-40℃
Humidity Less than 85%, no condensation Less than 85%, no condensation
Standard Accessories USB cable, Lanyard, operate manual USB cable, Lanyard, operate manual




Part 3. Application



Solar Film Agricultural Film

Handheld Portable Transmittance Meter For Tint Visible Light UV IR 0Handheld Portable Transmittance Meter For Tint Visible Light UV IR 1Handheld Portable Transmittance Meter For Tint Visible Light UV IR 2Handheld Portable Transmittance Meter For Tint Visible Light UV IR 3Handheld Portable Transmittance Meter For Tint Visible Light UV IR 4Handheld Portable Transmittance Meter For Tint Visible Light UV IR 5



Optical Glasses Tempered Glasses



Part 3. Warranty



1. One Year Warranty.
