Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CT-23
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Standard export carton
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 per month
Color: |
Black |
Geometry: |
Transmission |
Size: |
115* 70* 14mm |
Sample Thickness: |
13mm (max.) |
Test Accuracy: |
±2% |
Display Resolution: |
Display Resolution |
Color: |
Black |
Geometry: |
Transmission |
Size: |
115* 70* 14mm |
Sample Thickness: |
13mm (max.) |
Test Accuracy: |
±2% |
Display Resolution: |
Display Resolution |
13mm (max.) Sample Thickness Handheld Digital Light Transmittance Meter
Digital Light Transmittance Meter with 3-channel Model Portable Window Tint Meter Tester Visible Light UV IR
Handheld Light Transmission Meter
Measurement Principle:
The measuring principle of the light transmittance meter is to irradiate the measured transparent substance with a light source, and the sensor respectively detects the incident light intensity of the light source and the light intensity after passing through the measured substance, and the ratio of the transmitted light intensity to the incident light intensity is light transmission. Rate, expressed as a percentage.
Product description:
* The three-channel model combines three kinds of light transmittance : visible light, infrared light and ultraviolet light.
* It can be applied to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane.
Instrument Advantages :
1. Simple operation and fast to get the result, as long as the sample is placed in the test area, the test result will be displayed.
2. It can measure the transmittance of UV light, visible light, and infrared light.
3. It adopts parallel light path design, sample measurement thickness can reach 13mm
4. The instrument has a data lock function. After the test, press the HOLD key on the instrument to lock the test data, and the test sample data will still remain on the display interface after the sample is taken away.
5. Digital display, wide measuring range, high resolution.
6. Two calibration modes: Manual calibration and automatic calibration for easy usage
7. Small size and non-slip design, easy to grasp and carry for outdoor test
8. Rechargeable lithium battery, no need to take time to replace batteries.
Technical Specifications
| Name | Portable Transmittance Tester |
| Model | CT-23 |
| Geometry | Transmission |
| Calibration | Manual + Automatic |
| Test Index |
Ultraviolet (peak wavelength 365nm) Visible light (peak wavelength 530nm) Infrared (peak wavelength 940nm) |
| Test Accuracy | ±2% |
| Display Resolution | 0.10% |
| Sample Thickness | 13mm (max.) |
| Instrument Size | 115* 70* 14mm |
| Test Time | Less than 1s |
| Battery Volume | 750mA |
| Power Supply | 5V/1A |
| Screen | Full color display, 135*240, 1.14 inch |
| Recharging Interface | USB |
| Working Temperature | 0-40℃ |
| Humidity | Less than 85%, no condensation |
| Standard Accessories | USB cable, Lanyard, operate manual |

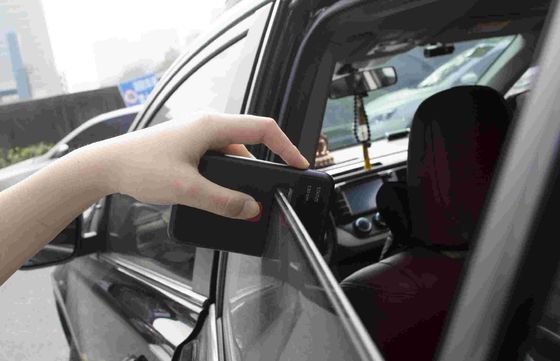

Application
