Home > Products > Light Transmittance Meter > Display Resolution Portable Window Tint Meter Tester Visible Light UV IR

Display Resolution Portable Window Tint Meter Tester Visible Light UV IR

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CT-23

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Standard export carton

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

Visible Light UV IR Transmission Meter

,

Window Tint Meter Tester

,

Portable Transmittance Tester

Color:
Black
Geometry:
Transmission
Size:
115* 70* 14mm
Sample Thickness:
13mm (max.)
Test Accuracy:
±2%
Display Resolution:
Display Resolution
Color:
Black
Geometry:
Transmission
Size:
115* 70* 14mm
Sample Thickness:
13mm (max.)
Test Accuracy:
±2%
Display Resolution:
Display Resolution
Product Description

China CHNS Display Resolution Model Portable Window Tint Meter Tester Visible Light UV IR

Digital Light Transmittance Meter with 3-channel Model Portable Window Tint Meter Tester Visible Light UV IR
Handheld Light Transmission Meter
                    Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 0Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 1Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 2Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 3Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 4Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 5Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 6Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 7Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 8

Measurement Principle:
The measuring principle of the light transmittance meter is to irradiate the measured transparent substance with a light source, and the sensor respectively detects the incident light intensity of the light source and the light intensity after passing through the measured substance, and the ratio of the transmitted light intensity to the incident light intensity is light transmission. Rate, expressed as a percentage.

Product description:
* The three-channel model combines three kinds of light transmittance : visible light, infrared light and ultraviolet light.
* It can be applied to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane.


Instrument Advantages :
1. Simple operation and fast to get the result, as long as the sample is placed in the test area, the test result will be displayed.
2. It can measure the transmittance of UV light, visible light, and infrared light.
3. It adopts parallel light path design, sample measurement thickness can reach 13mm
4. The instrument has a data lock function. After the test, press the HOLD key on the instrument to lock the test data, and the test sample data will still remain on the display interface after the sample is taken away.
5. Digital display, wide measuring range, high resolution.
6. Two calibration modes: Manual calibration and automatic calibration for easy usage
7. Small size and non-slip design, easy to grasp and carry for outdoor test
8. Rechargeable lithium battery, no need to take time to replace batteries.

Technical Specifications

Name Portable Transmittance Tester
Model CT-23
Geometry Transmission
Calibration Manual + Automatic
Test Index

Ultraviolet (peak wavelength 365nm)

Visible light (peak wavelength 530nm)

Infrared (peak wavelength 940nm)

Test Accuracy ±2%
Display Resolution 0.10%
Sample Thickness 13mm (max.)
Instrument Size 115* 70* 14mm
Test Time Less than 1s
Battery Volume 750mA
Power Supply 5V/1A
Screen Full color display, 135*240, 1.14 inch
Recharging Interface USB
Working Temperature 0-40℃
Humidity Less than 85%, no condensation
Standard Accessories USB cable, Lanyard, operate manual

Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 9

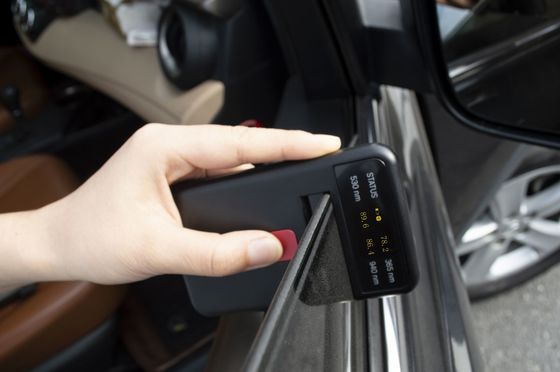

Application
                                           Display Resolution Portable Window Tint Meter Tester Visible Light UV IR 10
