Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CT25
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 5-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 per month
Screen Full Color Display, 135*240, 1.14 Inch Full Color Display,: |
135*240, 1.14 Inch Full Color Display, 135*240, 1.14 Inch |
Calibration: |
Manual + Automatic |
Sample Thickness: |
13mm (max.) |
Battery Volume: |
750mA |
Test Index: |
Ultraviolet (peak Wavelength 365nm) Visible Light (peak Wavelength 530nm) Infrared (peak Wavelength 940nm) Infrared (peak Wavelength 1400nm) Visible Light (380nm-760nm,conform To CIE Photopic Function Standard) |
Screen Full Color Display, 135*240, 1.14 Inch Full Color Display,: |
135*240, 1.14 Inch Full Color Display, 135*240, 1.14 Inch |
Calibration: |
Manual + Automatic |
Sample Thickness: |
13mm (max.) |
Battery Volume: |
750mA |
Test Index: |
Ultraviolet (peak Wavelength 365nm) Visible Light (peak Wavelength 530nm) Infrared (peak Wavelength 940nm) Infrared (peak Wavelength 1400nm) Visible Light (380nm-760nm,conform To CIE Photopic Function Standard) |

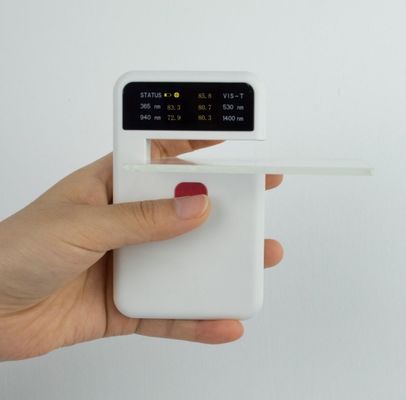

China CT25 Full Color Display 13mm Portable Transmittance Meter
Portable Transmittance Tester CT Series Introduction
CT-23 CT-25
Part 1. Instrument Advantage
1. Simple operation and fast to get the result, as long as the sample is placed in the test area, the test result will be displayed.
2. It can measure the transmittance of UV light, visible light, and infrared light.
3. It adopts parallel light path design, sample measurement thickness can reach 13mm
4. The instrument has a data lock function. After the test, press the HOLD key on the instrument to lock the test data, and the test sample data will still remain on the display interface after the sample is taken away.
5. Digital display, wide measuring range, high resolution.
6. Two calibration modes: Manual calibration and automatic calibration for easy usage
7. Small size and non-slip design, easy to grasp and carry for outdoor test
8. Rechargeable lithium battery, no need to take time to replace batteries.
Part 2. Technical Data
| Name | Portable Transmittance Tester | Portable Transmittance Tester |
| Model | CT-23 | CT-25 |
| Geometry | Transmission | Transmission |
| Calibration | Manual + Automatic | Manual + Automatic |
| Test Index |
Ultraviolet (peak wavelength 365nm) Visible light (peak wavelength 530nm) Infrared (peak wavelength 940nm) |
Ultraviolet (peak wavelength 365nm) Visible light (peak wavelength 530nm) Infrared (peak wavelength 940nm) Infrared (peak wavelength 1400nm) Visible light (380nm-760nm,conform to CIE photopic function standard) |
| Test Accuracy | ±2% | ±2% |
| Display Resolution | 0.10% | 0.10% |
| Sample Thickness | 13mm (max.) | 13mm (max.) |
| Instrument Size | 115* 70* 14mm | 115* 70* 14mm |
| Test Time | Less than 1s | Less than 1s |
| Battery Volume | 750mA | 750mA |
| Power Supply | 5V/1A | 5V/1A |
| Screen | Full color display, 135*240, 1.14 inch | Full color display, 135*240, 1.14 inch |
| Recharging Interface | USB | USB |
| Working Temperature | 0-40℃ | 0-40℃ |
| Humidity | Less than 85%, no condensation | Less than 85%, no condensation |
| Standard Accessories | USB cable, Lanyard, operate manual | USB cable, Lanyard, operate manual |
Part 3. Application
Solar Film Agricultural Film
Optical Glasses Tempered Glasses
Part 3. Warranty
1. One Year Warranty.
