Mini Hazemeter And Light Transmittance Meter To Measure Haze & Light Transmittance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | White And Black | Application | Plastic, Film And Glass |
|---|---|---|---|
| Geometry | 0/d | Haze Measurement Range | 0-100% |
| Repeatability | 0.1 Unit | Memory Storage | 20000 Value |
| Power | 110V-240V | Light Source | A,C And D65 |
| Usage | Haze And Transmittance Measurement | Working Temperature | 10-40 ℃ |
| High Light | haze meter plastics,transmission haze measurement |
||
Product Description

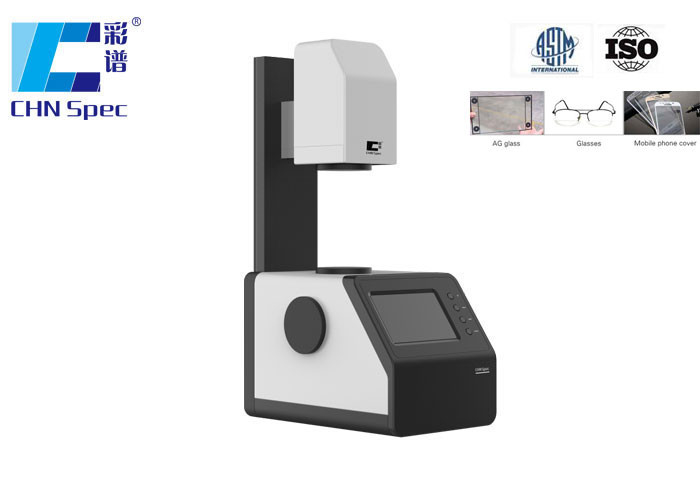

Mini Hazemeter And Light Transmittance Meter To Measure Haze & Light Transmittance
Haze and Light Transmittance Meter Technical Data
| Type | Haze Meter TH-100 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08 |
| Parameters | HAZE, Transmittance(T) |
| Spectral Response | CIE Luminosity function Y/V (λ) |
| Geometry | 0/d |
| Aperture Size | 21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤145mm |
| Memory | 20000 value |
| Interface | USB |
| Power | DC24V |
| Storage Temperature | 0-50℃ (+32 – 122 °F) |
| Size (LxWxH) | 310mm X 215mm X 540mm |
Haze and Light Transmittance Meter Introduction
Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement. It is mainly designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.
Haze and Light Transmittance Meter Working Principle
When a beam of parallel light hits the sample and enters the integrating sphere, it is scattered on the sphere inner white coating, the total transmittance is measured when the optical trap outlet on the sphere is closed. When the optical trap is opened, haze will be measured.
Haze and Light Transmittance Meter Advantages
1) . It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.
2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
3). It can realize transmittance compensation measurement which can provide higher accuracy test result.
4). Open measurement area, no limit on sample size.
5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials.
7). It adopts LED light source whose lifetime can reach 10 years.
8) . No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
9). Small size and light weight which makes it much easier to carry.
Haze and Light Transmittance Meter Packing List
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Adaptor |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Haze QC Software | 1 | 0% Calibration Cover |
| 1 | Compensation Port Cover | 1 | Warranty Card |
