Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-380
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:25x23x12cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Test Angle: |
20°,60°,85° |
Test Range: |
0-2000GU |
Resolution: |
0.1GU |
Accuracy: |
Conform To JJG 696 Standard For First Class Gloss Meter |
Test Time: |
Less Than 0.5s |
Data Storage: |
100 Standard Samples; 10000 Test Samples |
Size: |
165*51*77mm |
Single Machine Weight: |
400g |
Language: |
Chinese And English |
Battery Capacity: |
3000mAh Lithium Battery |
Test Angle: |
20°,60°,85° |
Test Range: |
0-2000GU |
Resolution: |
0.1GU |
Accuracy: |
Conform To JJG 696 Standard For First Class Gloss Meter |
Test Time: |
Less Than 0.5s |
Data Storage: |
100 Standard Samples; 10000 Test Samples |
Size: |
165*51*77mm |
Single Machine Weight: |
400g |
Language: |
Chinese And English |
Battery Capacity: |
3000mAh Lithium Battery |

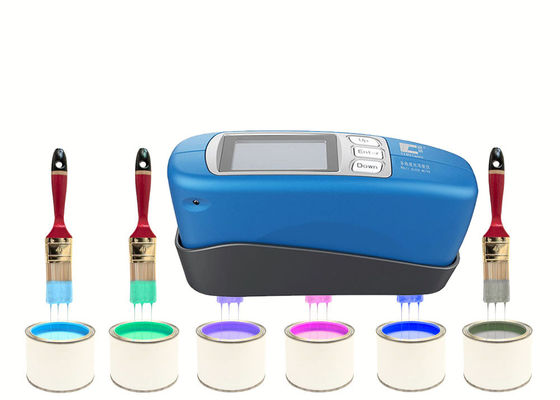

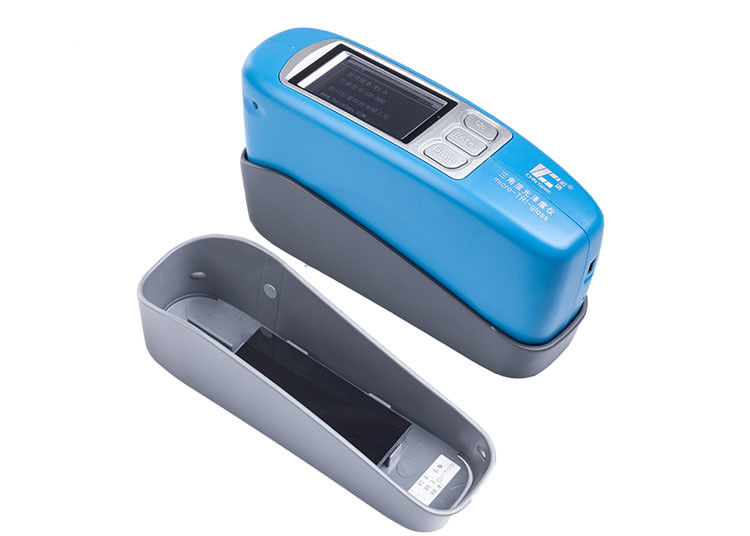

Digital Three Angles Gloss Meter for Measuring Gloss of Paint at 20,60 and 85 Degree
Paint Gloss Meter Introduction
Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics,granite tiles, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on. And The single angle glossmeters could be widely used for measuring the glossiness of building material, electroplate, plastic products,metal products, ceramic products and automobile accessories, etc.
Paint Gloss Meter Specifications
Model | CS-380 |
Test Angle | 20°,60°,85° |
Test light spot(mm) |
20°:10*10 60°:9*15 85°:5*38 |
Test range |
20°:0-2000GU 60°:0-1000GU 85°:0-160GU |
Resolution | 0.1GU |
Test modes | Simple mode, standard mode and sample testing mode |
Repeatability |
0-100GU:0.2GU 100-2000GU:0.2%GU |
Test time | Less than 1s |
Data storage | 100 standard samples; 10000 test samples |
Size(mm) | 165*51*77 (L*W*H) |
Language | Chinese and English |
Battery capacity | 3000mAh lithium battery |
Interface | USB, Bluetooth (optional) |
PC Software | Include |
Working Temperature | 0-40℃ |
Working Humidity | <85%, no condensation |
Competitive Advantage
1). High Precision
Every instrument has vertificate certificate from National Modern Metrology and Instruments Testing Laboratory and the Education Engineering Ministry of Education in China.
2). Large Battery Capacity
We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.
3). Super Stability
Every gloss meter made by us has done the following test:
412 calibration tests;
412 calibration tests;
110 hours of accelerated aging test.
4). Comfortable Grab Feeling
The shell is made by Dow Corning TiSLV material, a desirable elastic material, a desirable elastic material. It is resistant to UV and banteria and does not cause allergy. All designs are better user experience.
5). Free Color QC Software
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Packing List
Packing Material:Foam with carton box
Packing Size:230x220x120mm
Packing Weight:0.56kgs
Delivery Time:1-5 working days according to the type and quality ordered.
Qty. | Name | Qty. | Name |
1 | Main Instrument | 1 | Charger Head |
1 | Operating Manual | 1 | USB Cable |
1 | PC Software | 1 | Verification Certification |
1 | Packing List | 1 | Operating Manual |
