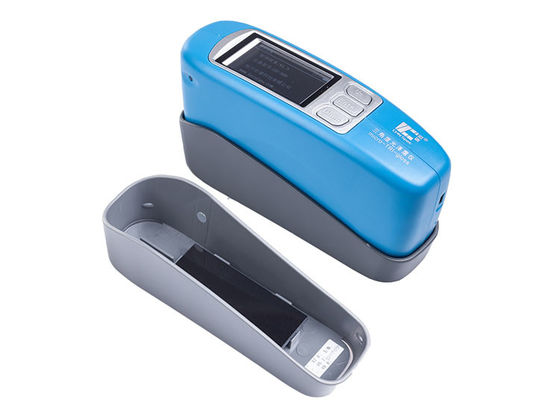

Pearlescent Leather Digital Gloss Meter 60 Degree With Upper PC Software

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:25x23x12cm

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
High Light:

mini gloss meter

,

sheen gloss meter

Test Angle:
60°
Test Range:
60°:0-1000GU
Resolution:
0.1GU
Accuracy:
Conform To JJG 696 Standard For First Class Gloss Meter
Test Time:
Less Than 0.5s
Data Storage:
100 Standard Samples; 10000 Test Samples
Size:
165*51*77mm
Single Machine Weight:
400g
Language:
Chinese And English
Battery Capacity:
3000mAh Lithium Battery
Test Angle:
60°
Test Range:
60°:0-1000GU
Resolution:
0.1GU
Accuracy:
Conform To JJG 696 Standard For First Class Gloss Meter
Test Time:
Less Than 0.5s
Data Storage:
100 Standard Samples; 10000 Test Samples
Size:
165*51*77mm
Single Machine Weight:
400g
Language:
Chinese And English
Battery Capacity:
3000mAh Lithium Battery
Product Description

Digital Pearlescent Leather Gloss Measurement Glossmeter 60 Degree





Introduction:



Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics,granite tiles, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on. And The single angle glossmeters could be widely used for measuring the glossiness of building material, electroplate, plastic products,metal products, ceramic products and automobile accessories, etc.





Specifications:



Model CS-300
Test Angle 60°
Test light spot(mm) 60°:9*15
Test range 60°:0-1000GU
Resolution 0.1GU
Test modes Simple mode, standard mode and sample testing mode
Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy Conform to JJG 696 standard for first class gloss meter
Test time 0.5s
Data storage 100 standard samples; 10000 test samples
Size(mm) 165*51*77 (L*W*H)
Language Chinese and English
Battery capacity 3000mAh lithium battery
Port USB, Bluetooth (optional)
Upper-PC Software Include
Working Temperature 0-40℃
Working Humidity <85%, no condensation
Accessories 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification





Competitive Advantage:



1). High Precision

Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and Engineering center of the Ministry of Education in China.



2). Super Stability (Patent Right No.: ZL2012201796876)

Every gloss meter made by us has done the following test:

110 hours of accelerated aging test;

412 calibration tests;

43200 stability tests.



3). Comfortable Grab Feeling

The shell is made by Dow Corning TiSLV material, a desirable elastic material, a desirable elastic material. It is resistant to UV and bacteria and does not cause allergy. All designs are for better user experience.



4). Large Battery Capacity for 50000 continuous tests

We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.





Free Color QC Software:

Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Pearlescent Leather Digital Gloss Meter 60 Degree With Upper PC Software 0





Packing List:



Packing Material:Foam with carton box

Packing Size:230x220x120mm

Packing Weight:0.56kgs

Delivery Time:1-5 working days according to the type and quality ordered.

Qty. Name Qty. Name
1 Main Instrument 1 Charger Head
1 Operating Manual 1 USB Cable
1 PC Software 1 Verification Certification
1 Packing List 1 Operating Manual





Application Example



The gloss meter could be widely used for testing the glossiness of print, ink, electroplate,plastic, tile, metal products, ceramics, auto accessories, furniture, leather, paper,etc.



gloss measurement scale
