Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: Non-contact
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Size:1500x700x1200mm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Test Angle: |
60 Degree |
Test Range: |
0-1000GU |
Repeatability: |
0.1GU |
Measurement Spot(mm): |
25x55 |
Measurement Mode: |
Continuous Test And Single Test |
Measurement Time: |
Less Than 0.5s |
Weight: |
About 60kgs |
Language: |
English |
Interface: |
USB |
Working Temperature: |
0-40 ℃ |
Test Angle: |
60 Degree |
Test Range: |
0-1000GU |
Repeatability: |
0.1GU |
Measurement Spot(mm): |
25x55 |
Measurement Mode: |
Continuous Test And Single Test |
Measurement Time: |
Less Than 0.5s |
Weight: |
About 60kgs |
Language: |
English |
Interface: |
USB |
Working Temperature: |
0-40 ℃ |
Inline Non-contact Gloss Measuring System Gloss Meter
Inline Gloss Meter Introduction
The non-contact on-line gloss measuring system provides products’ glossy data for production gloss quality control, to improve quality control level and save operating expenses. The system is easy to install and manage, can be found through real-time control and solve the problem of gloss without interrupting production.
Inline Gloss Meter Advantages
1). Non-contact : 100% online gloss measurement, non-contact, non-destructive gloss measurement
2). Automatically online gloss measurement
100mm measurement distance allows instrument to move away from the moving products on production line to provide flexible online installation condition and reduce the possibility of damage to equipment and materials.

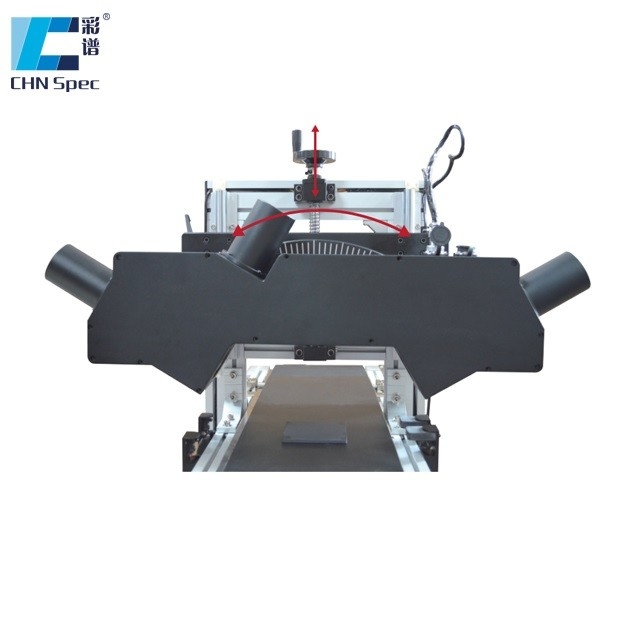

3). Adjustable Measurement Height
The measurement height is adjustable to make it suitable for measuring materials with difference thickness.
4). Can measure material with angles (irregular material)
Angle is adjustable to ensure that the product measuring surface and optical path is 60 °, so it is also suitable to measure products with difference thickness.
Inline Gloss Meter Tecchnical Data
| Test Angles | 60 degree |
| Measurement Spot(mm) | 25x55 |
| Measurement Range | 0-1000GU |
| Stability | 0.1GU |
| Measurement Mode | Continuous Test and Single Test |
| Measurement Repeatability |
0-100GU:0.3GU 100-1000GU:0.3%GU |
| Measurement Time | Less than 0.5s |
| Instrument Size(mm) |
1500x700x1200 (Length x Width x Height) We can also custom made the size according to the customer’s requirement |
| Weight | About 60kgs |
| Language | English |
| Interface | USB |
| Gloss QC Software | Including |
| Working Temperature | 0-40℃ |
| Humidity | Less than 85%, no condensation |
| Packing List | Gloss Sensor, Instrument supports, Calibration tile, Power Adaptor, Gloss Color QC software |

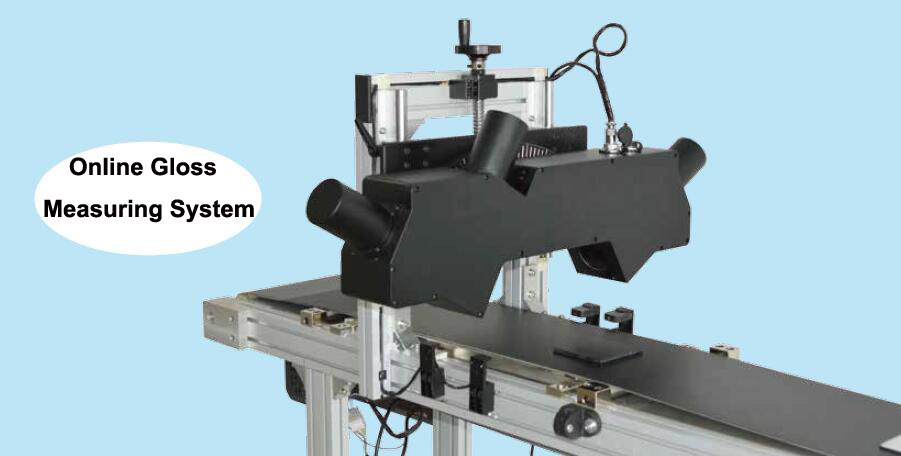

Inline Gloss Meter Pictures
