ASTM D1003 Film Haze And Light Transmittance Measurement Haze Tester With Integrating Sphere

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number TH-100
Minimum Order Quantity 1
Price negotiable
Packaging Details Packing Mateiral: Carton Box; Packing Size:66x46x33cm
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color White And Black Application Plastic, Film And Glass
Geometry 0/d Haze Measurement Range 0-100%
Repeatability 0.1 Unit Memory Storage 20000 Value
Power 110V-240V Light Source A,C And D65
Usage Haze And Transmittance Measurement
High Light

haze meter plastics

,

transmission haze measurement

,

ASTM D1003 Film Haze Transmittance

Leave a Message
Product Description

ASTM D1003 Film Haze and Light Transmittance Measurement Haze Tester with Integrating Sphere



Haze and Light Transmittance Measurement Haze Tester Introduction

Haze meter is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.

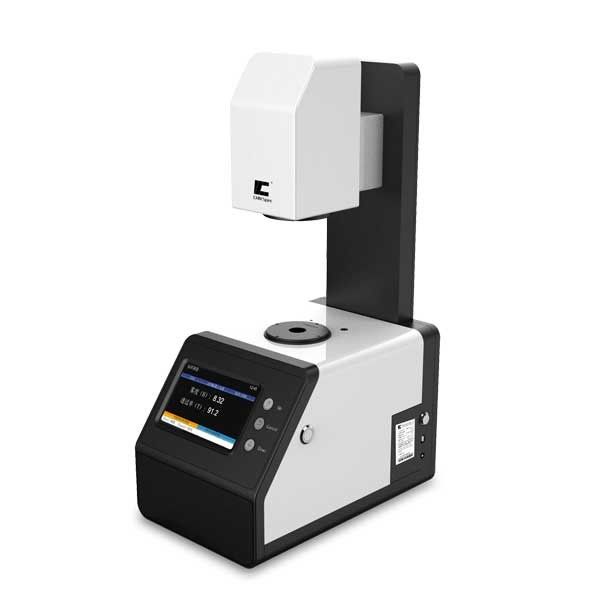

ASTM D1003 Film Haze And Light Transmittance Measurement Haze Tester With Integrating Sphere 0


Haze and Light Transmittance Measurement Haze Tester Technical Data


Type Haze Tester TH-100
Light Source CIE-A,CIE-C,CIE-D65
Standards ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08
Parameters HAZE, Transmittance(T)
Spectral Response CIE Luminosity function Y/V (λ)
Geometry 0/d
Aperture Size 21mm
Measurement Range 0-100%
Haze Resolution 0.01
Haze Repeatability ≤0.1
Sample Size Thickness ≤145mm
Memory 20000 value
Interface USB
Power DC24V
Storage Temperature 0-50℃ (+32 – 122 °F)
Size (LxWxH) 310mm X 215mm X 540mm



Haze and Light Transmittance Meter Working Principle

When a beam of parallel light hits the sample and enters the integrating sphere, it is scattered on the sphere inner white coating, the total transmittance is measured when the optical trap outlet on the sphere is closed. When the optical trap is opened, haze will be measured.


ASTM D1003 Film Haze And Light Transmittance Measurement Haze Tester With Integrating Sphere 1



Haze and Light Transmittance Meter Advantages

1) . It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.

3). It can realize transmittance compensation measurement which can provide higher accuracy test result.

4). Open measurement area, no limit on sample size.

5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.

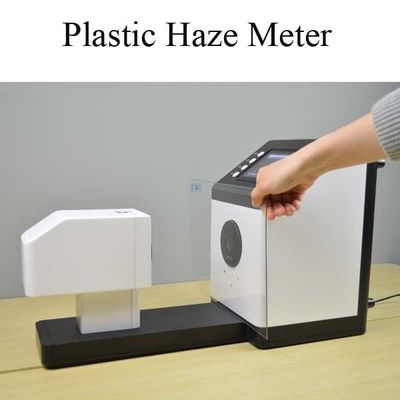

6). It can realize both horizontal and vertical measurement to measure different kinds of materials.

7). It adopts LED light source whose lifetime can reach 10 years.

8) . No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.

9). Small size and light weight which makes it much easier to carry.


ASTM D1003 Film Haze And Light Transmittance Measurement Haze Tester With Integrating Sphere 2


Haze and Light Transmittance Meter Packing List


ASTM D1003 Film Haze And Light Transmittance Measurement Haze Tester With Integrating Sphere 3


ASTM D1003 Film Haze And Light Transmittance Measurement Haze Tester With Integrating Sphere 4



For more details or inquiry, you are welcome to contact with us.
