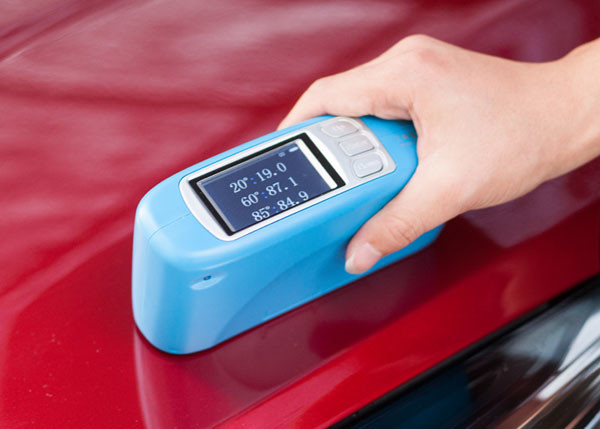

CS-380 Digital Gloss Meter Brillometro High Precision 20 60 85 Degree

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-380

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:25x19x18cm

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
Highlight:

mini gloss meter

,

sheen gloss meter

Test Angle:
20°,60°,85°
Test Range:
0-2000GU
Resolution:
0.1GU
Accuracy:
Conform To JJG 696 Standard For First Class Gloss Meter
Test Time:
Less Than 0.5s
Data Storage:
100 Standard Samples; 10000 Test Samples
Size:
165*51*77mm
Single Machine Weight:
400g
Language:
Chinese And English
Battery Capacity:
3000mAh Lithium Battery
Test Angle:
20°,60°,85°
Test Range:
0-2000GU
Resolution:
0.1GU
Accuracy:
Conform To JJG 696 Standard For First Class Gloss Meter
Test Time:
Less Than 0.5s
Data Storage:
100 Standard Samples; 10000 Test Samples
Size:
165*51*77mm
Single Machine Weight:
400g
Language:
Chinese And English
Battery Capacity:
3000mAh Lithium Battery
Product Description

CS-380 High Precision 20 60 85 Degree Gloss Meter Brillometro





Introduction



Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on. And The single angle glossmeters could be widely used for measuring the glossiness of building material, metal products, ceramic products and automobile accessories, etc.



CS-380 Digital Gloss Meter Brillometro High Precision 20 60 85 Degree 0





Specifications



Model CS-380
Test Angle 20°,60°,85°
Test light spot(mm)

20°:10*10

60°:9*15

85°:5*38

Test range

20°:0-2000GU

60°:0-1000GU

85°:0-160GU

Resolution 0.1GU
Test modes Simple mode, standard mode and sample testing mode
Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy Conform to JJG 696 standard for first class gloss meter
Test time Less than 1s
Data storage 100 standard samples; 10000 test samples
Size(mm) 165*51*77 (L*W*H)
Weight About 400g
Language Chinese and English
Battery capacity 3000mAh lithium battery
Port USB, Bluetooth (optional)
PC Software Include
Working Temperature 0-40℃
Working Humidity <85%, no condensation





Competitive Advantage:



1). Comfortable Grab Feeling

The shell is made by Dow Corning TiSLV material, a desirable elastic material, a desirable elastic material. It is resistant to UV and banteria and does not cause allergy. All designs are better user experience.



2). Large Battery Capacity

We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.



3). High Precision

Every instrument has vertificate certificate from National Modern Metrology and Instruments Testing Laboratory and the Education Engineering Ministry of Education in China.



4). Super Stability

Every gloss meter made by us has done the following test:

412 times calibration tests;

412 times calibration tests;

110 times hours of accelerated aging test.

17000 times vibration test



5). Free Gloss QC Software
Device is with mature gloss QC software which can connect the gloss meter with PC. With the software, we could save and manage the gloss data, derive the data, generate testing report,print test report.



CS-380 Digital Gloss Meter Brillometro High Precision 20 60 85 Degree 1






Certifications and Packing List:



Packing Material:Foam with carton box

Packing Size:230x220x120mm

Packing Weight:0.56kgs

Delivery Time:1-5 working days according to the type and quality ordered.



CS-380 Digital Gloss Meter Brillometro High Precision 20 60 85 Degree 2
