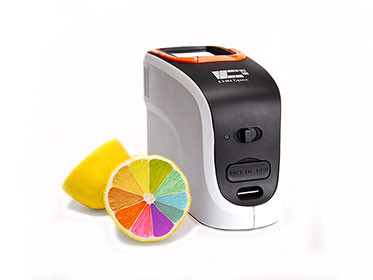

CS-660 Portable Spectrophotometer Illumination Viewing Angle Light Source Measurement Time
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Spectrophotometer For Color Matching | Battery Capacity | 7.4V/6000mAh Rechargeable |
---|---|---|---|
Data Storage | 20000 Test Results | Measurement Time | 0.5s |
Reflectivity | 0.01% | Half Spectral Width | 5nm |
Sensor | Dual Light Path Sensor Array | Instrument Size | 181*73*112mm(L*W*H) |
Measurement | 0-200% | ||
High Light | Portable Spectrophotometer CS-660,Rechargeable Portable Color Spectrophotometer,7.4V Handheld Color Spectrophotometer |
Product Description
Color Spectrophotometer Price CS-660 equal to x rite spectrophotometer
1. Print Label Color Measurement Instrument Introduction
Our spectrophotometers is with D/8 geometry and adopts high technology from overseas.Our device is widely used for color measurement of textile, fabric, yarn, textile dyeing and other products’ color quality control. It can help to do color communication and guide for color matching.
2. Print Label Color Measurement Instrument Specifications
Type | CS-660 |
Illumination | diffuse illumination/8 degree viewing |
integrating sphere size | Φ40mm |
Wavelength range | 400-700nm |
Wavelength interval | 10nm |
Observation angle | 2°/10° |
Measurement light source | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF, |
Measurement time | 1 second |
Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance |
Color difference index | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 |
Other | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) |
Repeatability | light splitting reflectivity:standard deviation within 0.08% |
color values:ΔE*ab<=0.015 | |
Interface | USB |
Light source longevity | 10 years, 3 million tests |
Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
3. Print Label Color Measurement Instrument Applications
It can be applied to textile laboratories and factories and others field for textile color testing;
Allows medium and small companies to obtain high performance color management system;
It can be widely used for textile fiber, yarn, fabric and dyeing material color measurement.
4. Print Label Color Measurement Instrument Advantage
1). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
2). Free PC software
3). Can connect to micro-printers for printing
4). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate
5). PC software for easy measurement data management
6). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample
7). It is with pantone color number matching function. After measurement it could match 3 pantone color number which is similar color to the sample.
5. Print Label Color Measurement Instrument Packing Information
Packing Material:Canvas bag with carton box
Packing Size:290x250x230mm
Packing Weight:1.98kgs
Delivery time:3-10 days after payment received.
Qty. | Name | Qty. | Name |
1 | Main Instrument | 1 | Power Line |
1 | Operating Manual | 1 | USB Cable |
1 | Driving Software | 1 | Black/White Calibration Tile |
1 | Color QC Software | 1 | Verification Certification |
1 | Packing List | 1 | Warranty Card |
