Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-600
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Light Source:: |
LED |
Wavelength Interval:: |
10nm |
Reflectivity Range:: |
0-200% |
Measurement Time: |
0.5s |
Data Storage:: |
20000 Test Results |
Sensor:: |
Dual Light Path Sensor Array |
Half Spectral Width:: |
5nm |
Reflectivity: |
0.01% |
Interface:: |
USB |
Working Temperatu: |
0-45℃ |
Light Source:: |
LED |
Wavelength Interval:: |
10nm |
Reflectivity Range:: |
0-200% |
Measurement Time: |
0.5s |
Data Storage:: |
20000 Test Results |
Sensor:: |
Dual Light Path Sensor Array |
Half Spectral Width:: |
5nm |
Reflectivity: |
0.01% |
Interface:: |
USB |
Working Temperatu: |
0-45℃ |
Double Array Beam Spectrophotometer to Measure Color LAB Values,ISO Brightness and CIE Whiteness
1. Brief Introduction of Spectrophotometer for Paints Color Matching
Our color spectrophotometers adopt high technology from overseas. It tests based on the condition of D/8 that is internationally used. Our device is widely used for color measurement for any industry especially for plastic,rubber,painting,textile,food,building material and other products’ color quality control.It could connect with color matching software to get recipes.

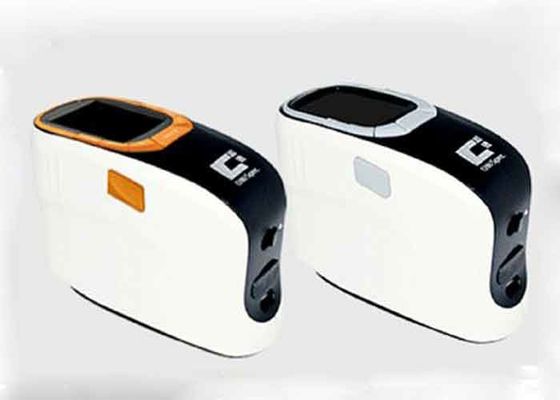

The following are the spectrophotometer for color measurement pictures.
2. Application of Spectrophotometer for Paints Color Matching
1).It can be applied to laboratories, factories and others field that need color testing;
2).Allows medium and small companies to obtain high performance color management system;
The following are some of application of our spectrophotometers.
3. Spectrophotometer for Paints Color Matching Longest Guarantee Time
a. One Year Guarantee Time.
b. If testing data is not correct, we can do refund.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
4. Spectrophotometer for Paints Color Matching Technical Data
| Type | CS-600 |
| Illumination | d/8 (conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards) |
| Size of integrating sphere | Φ40mm |
| Illumination Light source | CLEDs |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Half spectral width | 5nm |
| Reflectivity range | 0-200% |
| Reflectivity resolution | 0.01% |
| Observation angle | 2°/10° |
| Measurement light source |
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF, U30,CWF |
| Data being displayed | SPD distribution/data,sample's color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report |
| Measurement time | 1 second |
| Color space | CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance, Hunterlab,Munsell MI,CMYK |
| Color difference formulas | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00, ΔEab(Hunter),555,color classification |
| Other colorimetric indices |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness, ISO luminance, 8 gloss, A density, T density |
| Repeatability | light splitting reflectivity:standard deviation within 0.08% |
|
color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Maximum:0.05 |
|
| Battery capacity | rechargeable, 10000 continuous tests, 7.4V/6000mAh |
| Data storage | 20000 test results |
| Light source longevity | 5 years, 1.5 million tests |
| Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Size | 181*73*112mm(L*W*H) |
| Weight | about 550g(does not include battery's weight) |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tile |
| 1 | Color QC Software | 1 | Verification Certification |
| 1 | Packing List | 1 | Warranty Card |
