Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-660
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Illumination Light: |
CLEDs |
Wavelength Interval:: |
10nm |
Reflectivity Range:: |
0-200% |
Measurement Tim: |
2s |
Interface:: |
USB |
Measurement: |
0-200% |
Instrument Size:: |
181*73*112mm(L*W*H) |
Sensor:: |
Dual Light Path Sensor Array |
Half Spectral Width: |
5nm |
Reflectivity: |
0.01% |
Measurement Time:: |
0.5s |
Data Storage: |
20000 Test Results |
Illumination Light: |
CLEDs |
Wavelength Interval:: |
10nm |
Reflectivity Range:: |
0-200% |
Measurement Tim: |
2s |
Interface:: |
USB |
Measurement: |
0-200% |
Instrument Size:: |
181*73*112mm(L*W*H) |
Sensor:: |
Dual Light Path Sensor Array |
Half Spectral Width: |
5nm |
Reflectivity: |
0.01% |
Measurement Time:: |
0.5s |
Data Storage: |
20000 Test Results |
Product Description

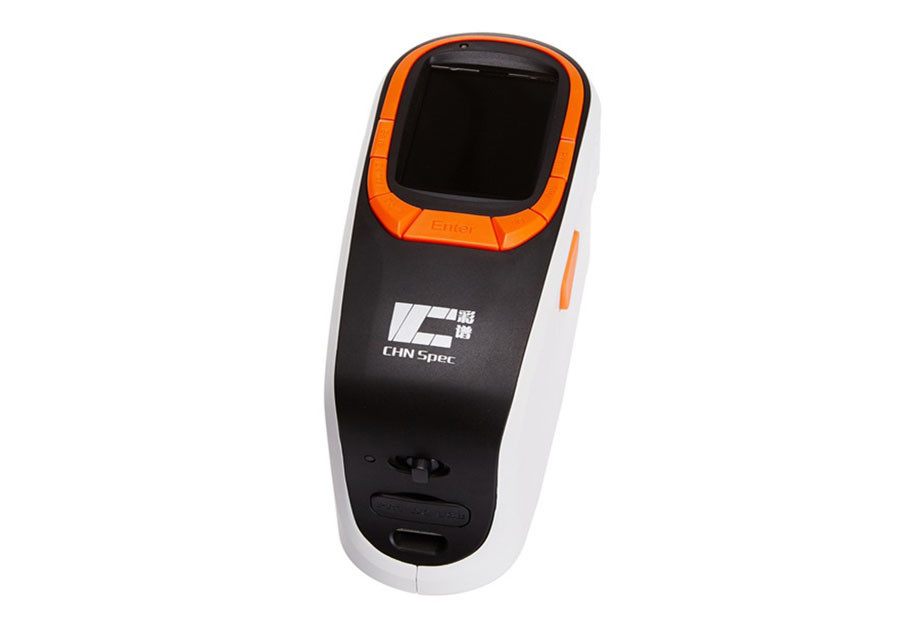

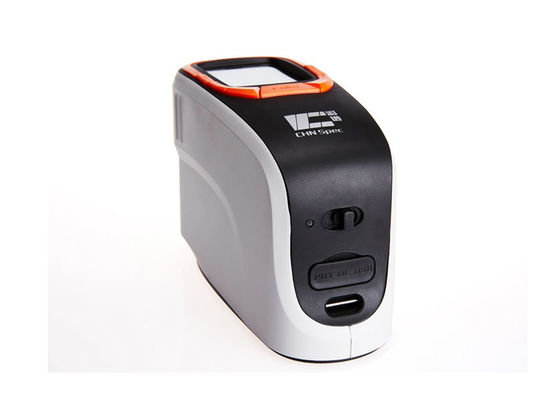

Handheld Precise Spectrophotomet compare to BYK Gardner Spectro-Guide 45/0 gloss 6801 Color Spectrophotometer
| Detail Information | |||
| Illumination Light Source: | CLEDs | Sensor: | Dual Light Path Sensor Array |
|---|---|---|---|
| Wavelength Interval: | 10nm | Half Spectral Width: | 5nm |
| Reflectivity Range: | 0-200% | Reflectivity Resolution: | 0.01% |
| Measurement Time Interval: | 2s | Measurement Time: | 0.5s |
| Interface: | USB | Data Storage: | 20000 Test Results |
| Measurement Range: | 0-200% | Battery Capacity: | 7.4V/6000mAh Rechargeable |
| Instrument Size: | 181*73*112mm(L*W*H) | Weight: | 550g |
Product Description
Top Quality Handheld Print Label Color Measurement Instrument with D / 8 Geometry
1. Print Label Color Measurement Instrument Introduction
Our spectrophotometers is with D/8 geometry and adopts high technology from overseas.Our device is widely used for color measurement of textile, fabric, yarn, textile dyeing and other products’ color quality control. It can help to do color communication and guide for color matching.
2. Print Label Color Measurement Instrument Specifications
| Type | CS-660 |
| Illumination | diffuse illumination/8 degree viewing |
| integrating sphere size | Φ40mm |
| Wavelength range | 400-700nm |
| Wavelength interval | 10nm |
| Observation angle | 2°/10° |
| Measurement light source |
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF, TL83,TL84,NBF,U30,CWF |
| Measurement time | 1 second |
| Color space |
CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB |
| Color difference index |
ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00 ΔEab(Hunter),555,color classification |
| Other |
WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density |
| Repeatability | light splitting reflectivity:standard deviation within 0.08% |
|
color values:ΔE*ab<=0.015 Maximum:0.03 |
|
| Interface | USB |
| Light source longevity | 10 years, 3 million tests |
| Inter-instrument agreement | ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts) |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
3. Print Label Color Measurement Instrument Applications
It can be applied to textile laboratories and factories and others field for textile color testing;
Allows medium and small companies to obtain high performance color management system;
It can be widely used for textile fiber, yarn, fabric and dyeing material color measurement.
4. Print Label Color Measurement Instrument Advantage
1). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
2). Free PC software
3). Can connect to micro-printers for printing
4). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate
5). PC software for easy measurement data management
6). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample
7). It is with pantone color number matching function. After measurement it could match 3 pantone color number which is similar color to the sample.
5. Print Label Color Measurement Instrument Packing Information
Packing Material:Canvas bag with carton box
Packing Size:290x250x230mm
Packing Weight:1.98kgs
Delivery time:3-10 days after payment received.
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Line |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black/White Calibration Tile |
| 1 | Color QC Software | 1 | Verification Certification |
| 1 | Packing List | 1 | Warranty Card |
