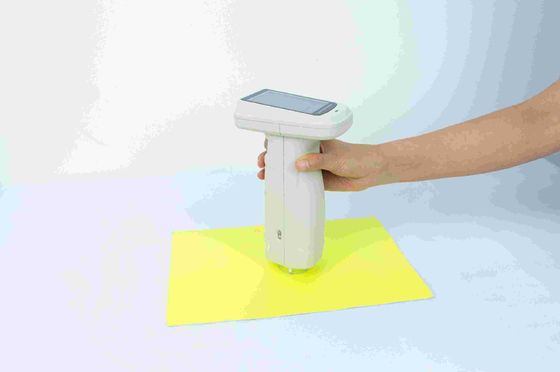

IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting

Place of Origin China
Brand Name CHN spec
Certification CE
Model Number DS-700d
Minimum Order Quantity 1
Price negotiable
Packaging Details Carton box
Delivery Time 5-7 days
Payment Terms T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability 1000 per month
Product Details
Geometry D/8,SCI+SCE Display Resolution 0.01
Calibration Intelligent Auto Calibration Sphere Size 40mm
Wavelength Interval 10nm Wavelength Range 0-200%
Reflectance Resolution 0.01% Measurement Time < 2s
Interface USB, Bluetooth Screen 3.5 Inches Touch Screen
High Light

3.5 Inches Portable Spectrophotometer

,

3.5'' Full Color Screen Spectrophotometer

,

Plastic Painting Portable Spectrophotometer

Leave a Message
Product Description

IPS Full Color Screen,3.5 Inches Portable Spectrophotometer Color Meter DS-700D Suitable For
 DS-700d Portable Spectrophotometer Colour Matching Spectrophotometer For Plastic Painting Coating Textile Industry

DS-700d Portable Spectrophotometer Report Reflectance Data at 10nm Interval Tristimulus Value Y (CIE No. 15.2 1986)


Spectrophotometer DS-700D Advantage


1) Excellent repeatability and inter-instrument agreement

repeatability : dE*ab≤ 0.04 (max.) and inter-instrument agreement : ≤0.25
Test result is accurate and reliable to ensure the consistency of the measurement data of multiple devices, which can be used for color matching and accurate color communication.


2). It can pass metrology of level I.



3). Dual optical path array sensor

The dual optical path design monitors the energy fluctuation of the light source while measuring the sample signal, reduces interference during the measurement, and obtains better measurement repeatability. The usage of large-area dual-array sensors provides higher spectral response sensitivity, and ensures fast measurement speed, accuracy, stability and consistency between multiple devices.

IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 0



4). Intelligent auto calibration, white tile is made by ZrO2 with reflectance more than 90%, no need for frequent white calibration.

The instrument is placed on the intelligent calibration base, and the instrument can be automatically calibrated without manual intervention through the white tile on the base. It has changed the current situation that traditional instruments must be manually calibrated with white tile. The white tile is made by ZrO2 with reflectance more than 90%, which ensures excellent mechanical strength and weather resistance, and will not be scratched or discolored after long-term use.



IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 1



5). 360-700nm Full Wavelength Balanced LED+UV

The instrument adopts a full wavelength balanced LED and UV as the illuminant, ensuring sufficient spectral distribution in the visible and ultraviolet bands, and materials with fluorescent can also be measured.



IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 2



6). 10nm Resolution Grating Spectroscopy Technology

The grating combined with the array sensor made by the innovative MEMS process makes color measurement more accurate based on the 10nm spectral resolution.



IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 3



7). Three aperture as standard accessories, no tools are needed and apertures can be replaced at any time to meet different sample measurement requirements. Spectrophotometer DS700D comes with three apertures 11mm/6mm/1*3mm.



IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 4



8). More than 30 kinds of color indices and 37 kinds of illuminants

DS-700D provides a variety of color indices and evaluation illuminants that comply with international standards. A variety of light sources and color indices can be flexibly chosen through the mobile phone app or PC software.



IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 5


9). It supports Android, IOS and Windows program.



IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 6



10). It is with the camera to see the measurement area clearly.



IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 7





Spectrophotometer DS-700D Packing List

IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 8

IPS Full Color Screen 3.5 Inches Portable Spectrophotometer For Plastic Painting 9




Spectrophotometer DS-700D Technical Data


ModelSpectrophotometer DS-700D
Geometryd/8, SCI+SCE(diffused illumination,8° viewing, Specular Component Included, Specular Component Excluded)
Repeatability

Chromaticity value:
Standard deviation within ΔE*ab ≤ 0.025
Average :dE*ab< 0.025
Max. :dE*ab≤ 0.04
(when a white tile is measured 30 times at 5-seconds interval)
Reflectance: Standard deviation < 0.08%

Inter-instrument agreement

ΔE*ab<0.25
(BCRA Series Ⅱ, average measurement of 12 tiles)

Display Resolution0.01
Illumination Area/Aperture

MAV:Φ8mm/Φ11mm
SAV:Φ4mm/Φ6mm
MINI:1*3mm

Color Spaces and IndicesReflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength
Illuminants

A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2
LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2

Light SourceLED(Full wavelength balanced LED) + UV
Wavelength Range400-700nm
Camera to see the measurement areaYes
CalibrationIntelligent auto calibration
SoftwareAndroid, IOS, Windows
Observer Angles2°,10°
Sphere Size40mm
StandardsConform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Spectroscopic methodGrating spectroscopy
SensorDual array sensor
Wavelength Interval10nm
Wavelength Range0-200%
Reflectance Resolution0.01%
Measurement Time< 2s
InterfaceUSB, Bluetooth
ScreenIPS Full Color Screen,3.5 inches
BatteryRechargeable, 8000 times continuous tests, 3.7V/3000mAh
Lamp Lifetime10 years, 1 million tests
LanguageChinese and English
Instrument Size95 x 129 x 231mm (L x W x H)
Instrument Weightabout 750g
Storage Memory

APP Mass Storage
100 pcs of target from instrument
