Color Difference Test Paint Colorimeter With D/8 SCI Illumination System
|Place of Origin||China|
|Brand Name||CHN spec|
|Minimum Order Quantity||1|
|Packaging Details||Inner Box: Foam Package Outer Box: Carton box Size: 25x21x20cm|
|Delivery Time||5-7 days|
|Payment Terms||T/T, Western Union, MoneyGram,Paypal|
|Supply Ability||1000 per month|
|Illumination System||D/8,SCI||Measuring Caliber||8mm|
|Storage||10000 Test Results||Measurement Time||0.5 Second|
|Measuring Range||L*:1-100||Repeatability||Standard Deviation Below 0.1|
|Measuring Light Source||LED||Languages||English And Chinese|
|Device Weight||550g (without Battery)||Instrument Color||Blue|
Color Difference Test Paint Colorimeter,
SCI Illumination System Paint Colorimeter,
D/8 Illumination System Paint Colorimeter
D/8,SCI illumination System Color Difference Test Paint Colorimeter

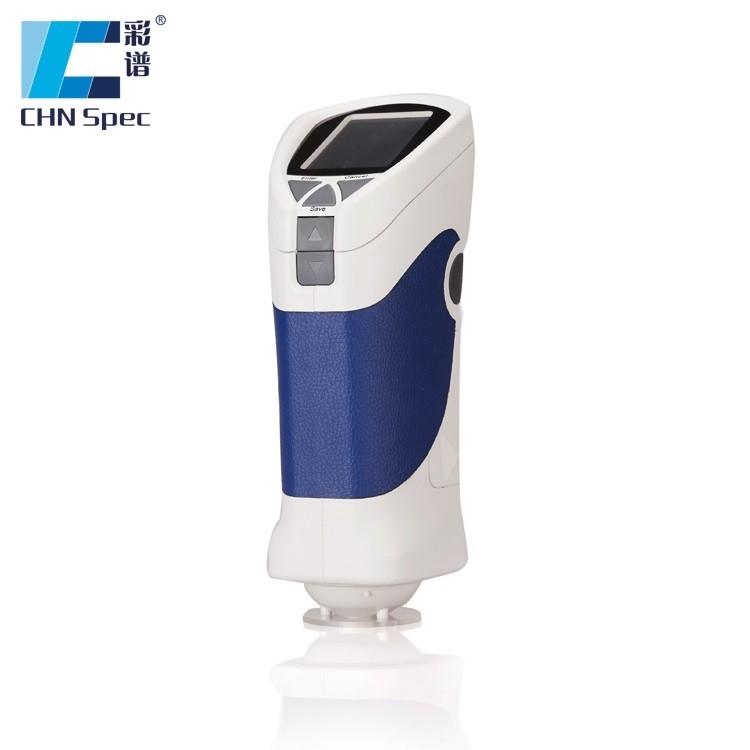

CS-210 CIELab Color Measurement Paint Colorimeter
Paint colorimeter is widely used for measuring paint sample L*a*b*, color difference ΔE and ΔLab according to CIE color space.Beside paint, it can also be widely used in different industries such as plastic,printing,paint,textile and dyeing.
|Illumination system||8/d(8°/diffused illumination)|
|Measuring conditions||CIE 10° standard observer; CIE D65 light source|
|Repeatability||Standard deviation within delta E*ab*,below 0.08(testing condition: measure the white calibration board 80 times for average)|
|Storage||100 sets of standard samples; up to 100 under each standard sample|
|Measuring time||About 0.5 seconds|
|Power||Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter|
|Other Function||Build-in Camera|
CS-210 paint colorimeter includes a camera to view the testing area which can easily avoid testing errors.
1). Device sensor exports from Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.
2). Multiple color space display color values : L*a*b,L*c*h,Yxy.
3). Can Test Degree of Whiteness and Yellow Degree
4). Ergonomic Design
5). Establish the Prototype Data L*a*b* by manually
6). The device could store 10 standard sample groups and every sample group could store 100 sample data.
7). Can connect to micro-printers for printing
Free Color QC Software:
Our paint colorimeter is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.
Packing Material:Canvas bag with carton box
Delivery time:3-20 days after payment received.
|1||Main Instrument||1||Power Line|
|1||Operating Manual||1||USB Cable|
|1||Driving Software||1||Black/White Calibration Tiles|
|1||Color QC Software||1||Packing List|
Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten more than 26 patents including one US patent till now. I believe our quality products will be your better choice. You are warmly welcome to visit and purchase from us.
