Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: CS810
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: cartoon box
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Wavelength: |
400-700nm |
Detector: |
Dual Optical Sensor Array |
Illumination Light Source: |
CLEDs |
Mesurement Range: |
0-200% |
Resolution: |
0.01% |
Repeatability Transmittance: |
0.08% |
Repeatability Chromaticity Value: |
0.015 |
Inter-instrument Agreement: |
0.2 |
Wavelength: |
400-700nm |
Detector: |
Dual Optical Sensor Array |
Illumination Light Source: |
CLEDs |
Mesurement Range: |
0-200% |
Resolution: |
0.01% |
Repeatability Transmittance: |
0.08% |
Repeatability Chromaticity Value: |
0.015 |
Inter-instrument Agreement: |
0.2 |

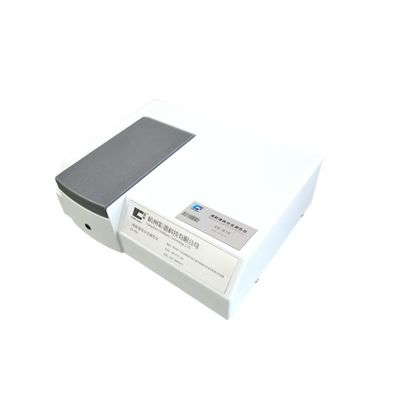

CS-810 Transmittance spectrophotometer is good performance and specially designed for testing the transparent material’s transmittance, absorbance, chromaticity value and other parameters.
The instrument adopts the geometry of D/0, integration of the full band LED composite light source, double beam optical system, ETC every-test calibration technology, which makes the instrument reaches a resolution of 0.0001, deviation of the transmittance within 0.08% and chromatic value △E*ab 0.015.
Brief Introduction
1. D� Geometry
2. It is suitable for testing clear, transparent and translucent products such as glass, oil, plastic and other materials color.
3. Adopt UV enhanced silicon photodiode
Extend the transmittance measurement range from 0~100% to 0~200%
4. It can also be used for measure APHA/Pt-Co, Gardner, ASTM color, Yellowness Index for liquid and transparent materials.
5. Color QC software
Our spectrophotometer comes with free color QC software, which is applicable in various industries for management of color data. It is used for store test result, generate test report and print test report after connect with printer.
7. Technical Data
| Type | CS-810 |
| Illumination | d/0(Diffused illumination, 0°viewing) SCS optical engine(light splitting and integration system),( conform to CIE No.15, ISO 7724/1, ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards) |
| Size of integrating sphere | Φ40mm,Alvan diffused reflection surface coating |
| Illumination Light source | CLEDs(entire wavelength balanced LED light source) |
| Sensor | dual light path sensor array |
| Wavelength range | 400-700nm |
| Wavelength Pitch | 10nm |
| Half Band Width | 5nm |
| Reflectance Range | 0-200% |
| Reflectance Resolution | 0.01% |
| Observer Angle | 2°/10° |
| Illuminants | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Data being displayed | Transmittance graph/value, chromatic value, color difference values, color assessment results, color tendency, history color value simulation, manual input standard sample, generate measurement reports |
| Measurement time interval | 1 second |
| Measurement time | 1 second |
| Color spaces | CIE-L*a*b,L*C*h,CIE-L*u*v, XYZ, Yxy, Transmittance, Hunter-lab |
| Color difference formulas | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00 ΔE*ab (Hunter) |
| Other indices | WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), |
| Repeatability | Transmittance : standard deviation within 0.08% |
| Chromaticity values: Δ E*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals, Maximum: 0.03) | |
| Interface | USB |
| Data Storage | mass storage |
| Light source Lifetime | 5 years, 1.5 million tests |
| Size | 475*340*150mm(L*W*H) |
| Weight | about 7kg |
| Work temperature range | 0~45℃, relative humidity 80% or below( at 35°C ),no condensation |
| Storage temperature range | -25℃ to 55℃,relative humidity 80% or below(at 35°C ), no condensation |
| Standard accessories | Power adaptor , color QC software, driving software, USB cable, black calibration tile, 40*10mm cuvette |
8. Packing List
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Cable |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Driving Software | 1 | Black Calibration Tile |
| 1 | Color QC Software | 1 | Glass Cell 40x10mm |
9. Longest Warranty Time:1 year
a. One Year Guarantee Time.
b. If testing data is not correct, we can do refund.
c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
