D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8

Product Details

Place of Origin: China

Brand Name: CHNSpec

Certification: CE

Model Number: CS500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: cartoon box

Delivery Time: 5-7days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price
Product Details
High Light:

10 Observer Angles Portable Spectrophotometer

,

Interval Spectrophotometer

,

Interval Spectrophotometer

Geometry:
D/8
Light Source:
LED(Full Band Balanced LED)
Observer Angles:
2 And 10
Calibration:
AUTO
Wavelength Interval:
10nm
Wavelength Range:
400-700nm
Reflectance Range:
0-200%
Reflectance Resolution:
0.01%
Repeatability:
Chromaticity Value: Max. :dE*ab< 0.1 Average :dE*ab< 0.05 Standard Deviation Within ΔE*ab 0.03 (when A White Tile Is Measured 30 Times At 5-seconds Interval) Reflectance: Standard Deviation < 0.1%
Screen:
IPS Full Color Screen,2.4 Inches
Pass Metrology:
Yes, Metrology Level I
Geometry:
D/8
Light Source:
LED(Full Band Balanced LED)
Observer Angles:
2 And 10
Calibration:
AUTO
Wavelength Interval:
10nm
Wavelength Range:
400-700nm
Reflectance Range:
0-200%
Reflectance Resolution:
0.01%
Repeatability:
Chromaticity Value: Max. :dE*ab< 0.1 Average :dE*ab< 0.05 Standard Deviation Within ΔE*ab 0.03 (when A White Tile Is Measured 30 Times At 5-seconds Interval) Reflectance: Standard Deviation < 0.1%
Screen:
IPS Full Color Screen,2.4 Inches
Pass Metrology:
Yes, Metrology Level I
Product Description

China CHNSpec CS-500 D/8 2 And 10 Observer Angles 10nm Wavelength Interval Spectrophotometer

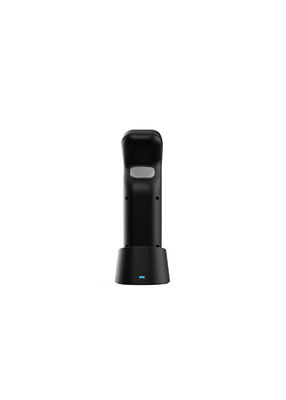

Portable Spectrophotometer CS-500

------Revolution in color measurement



Portable spectrophotometer CS-500 is with the powerful performance configuration which makes color measurement more professional. Excellent inter-instrument agreement ensures consistency of the measurement data of multiple devices; Wireless connection with Android or IOS devices via Bluetooth. It greatly expands the application boundary of color spectrophotometer; automatic calibration, magnetic seat charging, touch screen operation... it will fully upgrade the user experience.

Part 1. Product Features
1. 20 kinds of color indexes and 26 kinds of illuminants
Spectrophotometer CS-500 supports 26 kinds of illuminants such as D65/D50,etc. It can get the value of reflectance, CIE-Lab,CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.

2. Excellent inter-instrument Agreement
inter-instrument agreement <0.3 which ensures test results consistency of multiple devices.

3. Auto calibration
The revolutionary auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.

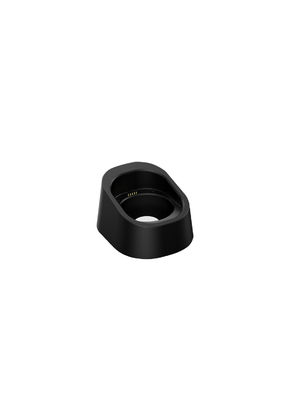

4. Multi-function calibration base
The multi-function calibration base keeps the white tile being protected, combining calibration and charging functions in one. When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.

5. Connect to the mobile device App to expand more functions
Connect to APP to find the similar color from different color swatches. Personal color database can also be established in the cloud and samples saved in cloud can be set into target for color different test. From APP, we can also obtain instrument data or download data to the instrument.

Part 2. Technical Parameter


ModelSpectrophotometer CS-500
GeometryD/8 (diffused illumination,8° viewing), Specular Component Included(SCI)
Light SourceLED(Full band balanced LED)
Color Spaces and Indices

Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-
73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM
D1925,ASTM E313-00,ASTM E313-73), Blackness
(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength

IlluminantsA,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer Angles2°,10°
Sensor256 pixel CMOS sensor
CalibrationAuto
Wavelength Interval10nm
Wavelength Range400-700nm
Sphere Size40mm
Reflectance Range0-200%
Reflectance Resolution0.01%
Repeatability

Chromaticity value:
Max. :dE*ab< 0.1
Average :dE*ab< 0.05
Standard deviation within ΔE*ab 0.03 (when a white tile is measured 30 times at 5-seconds interval)
Reflectance:
Standard deviation < 0.1%

Illumination Area/ApertureMAV:Φ8mm/Φ11mm
Inter-instrument agreement

ΔE*ab<0.3
(BCRA Series Ⅱ, average measurement of 12 tiles,MAV/SCI)

Test TimeAbout 2s
StorageAPP mass storage
BatteryRechargeable, 8000 times continuous tests, 3.7V/3000mAh
ScreenIPS Full Color Screen,2.4 inches
InterfaceUSB,Bluetooth
Lamp Lifetime10 years, 1 million tests
LanguageChinese and English
SoftwareAndroid, IOS, Windows
Camerawithout
Pass MetrologyYes, metrology level I
Instrument SizeL x W x H (77.8mm x 53.2mm x 185.7mm)
WeightAbout 300g
Packing Weight and Size

1.5kgs
32x17x29cm



Part 3. Packing List

Qty.NameQty.Name
1Main Instrument1Power Cable
1Operating Manual1Charger base

 D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 0D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 1D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 2D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 3D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 4D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 5D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 6D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 7D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 8D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 9D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 10D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 11D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 0D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 13D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 14D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 15D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 16
Part 4. Application
D/8 2 And 10 Observer Angles Interval Spectrophotometer 10nm Wavelength SCI D/8 17
Part 5. Warranty
1 year
a. One Year Warranty Time.
b. Every instrument comes with verification certification to ensure the accuracy of the test result and save first year calibration cost for customer.
