Product Details
Place of Origin: China
Brand Name: CHN spec
Certification: CE
Model Number: CS-380
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:25x19x18cm
Delivery Time: 5-7 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 per month
Test Angle: |
20°,60°,85° |
Test Range: |
60°:0-1000GU |
Resolution: |
0.1GU |
Accuracy: |
Conform To JJG 696 Standard For First Class Gloss Meter |
Test Time: |
Less Than 0.5s |
Data Storage: |
100 Standard Samples; 10000 Test Samples |
Size: |
165*51*77mm |
Single Machine Weight: |
400g |
Language: |
Chinese And English |
Battery Capacity: |
3000mAh Lithium Battery |
Test Angle: |
20°,60°,85° |
Test Range: |
60°:0-1000GU |
Resolution: |
0.1GU |
Accuracy: |
Conform To JJG 696 Standard For First Class Gloss Meter |
Test Time: |
Less Than 0.5s |
Data Storage: |
100 Standard Samples; 10000 Test Samples |
Size: |
165*51*77mm |
Single Machine Weight: |
400g |
Language: |
Chinese And English |
Battery Capacity: |
3000mAh Lithium Battery |

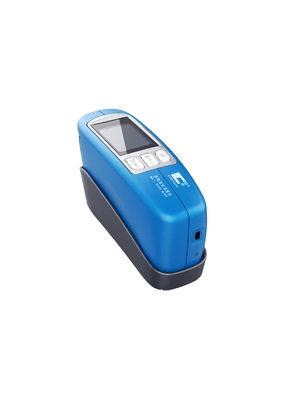

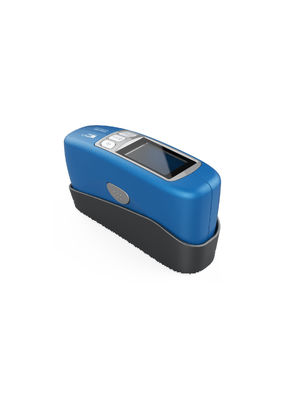

China CHN Spec CS-380 Test Range 20°,60°,85° Test Angle Blue ISO 2813 Mini Gloss Meter Paints And Varnishes
ISO 2813 Paints and Varnishes 20 60 and 85 Degree Gloss Meter
Gloss Meter Introduction
A glossmeter (also gloss meter) is an instrument which is used to measure specular reflection gloss of a surface.Gloss meter are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics,granite tiles, building materials and so on. Our gloss testers conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on.
Gloss Meter Specification
Model | CS-380 |
Test Angle | 20°,60°,85° |
Test light spot(mm) |
20°:10*10 60°:9*15 85°:5*38 |
Test range |
20°:0-2000GU 60°:0-1000GU 85°:0-160GU |
Resolution | 0.1GU |
Test modes | Simple mode, standard mode and sample testing mode |
Repeatability |
0-100GU:0.2GU 100-2000GU:0.2%GU |
Accuracy | Conform to JJG 696 standard for first class gloss meter |
Test time | Less than 1s |
Data storage | 100 standard samples; 10000 test samples |
Size(mm) | 165*51*77 (L*W*H) |
Weight | About 400g |
Language | Chinese and English |
Battery capacity | 3000mAh lithium battery |
Port | USB, Bluetooth (optional) |
PC Software | Include |
Working Temperature | 0-40℃ |
Working Humidity | <85%, no condensation |
Gloss Meter Competitive Advantages
1). Large Battery Capacity
We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.
2). Super Stability
Every gloss meter made by us has done the following test:
412 times calibration tests;
43200 times stability tests;
110 hours of accelerated aging test;
17000 times vibration test.
3). High Precision
Every instrument comes with vertification certificate from National Modern Metrology and Instruments Testing Laboratory in China.
4). Comfortable Grab Feeling
The shell is made by Dow Corning TiSLV material, a desirable elastic material, a desirable elastic material. It is resistant to UV and banteria and does not cause allergy.
Gloss Meter Application Example
The glossmeter is adopted by many industries, from paper mills to automotive and is used at each stage of the manufacturing process from goods receipt through to final inspection. Examples include: paints; powder and coatings; additives; inks; plastics; automative, glass, polished stone and metal; consumer electronics; anodised metals; and so on.
Gloss Meter Free Color QC Software
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.
Gloss Meter Packing List:
Packing Material:Foam with carton box
Packing Size:230x220x120mm
Packing Weight:0.56kgs
Delivery Time:1-5 working days according to the type and quality ordered.
Qty. | Name | Qty. | Name |
1 | Main Instrument | 1 | Charger Head |
1 | Operating Manual | 1 | USB Cable |
1 | PC Software | 1 | Verification Certification |
1 | Packing List | 1 | Operating Manual |
