Home > Products > Multi Angle Gloss Meter > Intelligent Digital Marble Floor Gloss Meter / Gloss Level Measurement

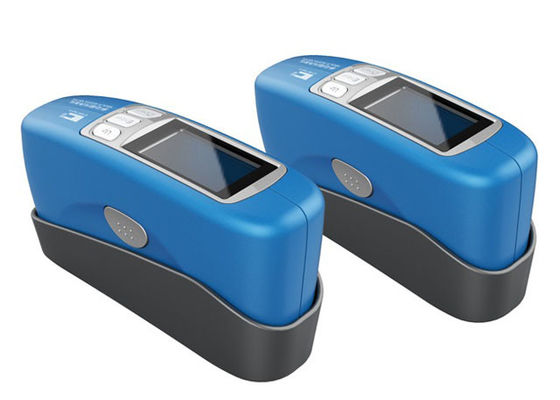

Intelligent Digital Marble Floor Gloss Meter / Gloss Level Measurement

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: CS-380

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Inner Box: Foam Package Outer Box: Carton box Size:25x23x12cm

Delivery Time: 5-7 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
Highlight:

60 degree gloss meter

,

gloss measurement instruments

,

Digital Marble Floor Gloss Meter

Test Angle:
20°,60°,85°
Test Range:
20°:0-2000GU
Resolution:
0.1GU
Test Time:
Less Than 0.5s
Data Storage:
100 Standard Samples; 10000 Test Samples
Size:
165*51*77mm
Single Machine Weight:
400g
Language:
Chinese And English
Battery Capacity:
3000mAh Lithium Battery
Interface:
USB
Test Angle:
20°,60°,85°
Test Range:
20°:0-2000GU
Resolution:
0.1GU
Test Time:
Less Than 0.5s
Data Storage:
100 Standard Samples; 10000 Test Samples
Size:
165*51*77mm
Single Machine Weight:
400g
Language:
Chinese And English
Battery Capacity:
3000mAh Lithium Battery
Interface:
USB
Product Description

Triple Angles 20 60 and 85 Degree 0-2000GU Intelligent Digital Marble Floor Gloss Meter





Marble Floor Gloss Meter Introduction



Gloss meters are mainly used in the surface gloss measurement for marble,ceramics,granite tiles, building materials,paint, plastic, metal, and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on. And multi angles glossmeters could be widely used for measuring the glossiness of building material, electroplate, plastic products,metal products and ceramic products, etc.





Marble Floor Gloss Meter Specifications



Model CS-380
Test Angle 20°,60°,85°
Test light spot(mm)

20°:10*10

60°:9*15

85°:5*38

Test range

20°:0-2000GU

60°:0-1000GU

85°:0-160GU

Resolution 0.1GU
Test modes Simple mode, standard mode and sample testing mode
Repeatability

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy Conform to JJG 696 standard for first class gloss meter
Test time Less than 1s
Data storage 100 standard samples; 10000 test samples
Language Chinese and English
Battery capacity 3000mAh lithium battery
Port USB, Bluetooth (optional)
Working Temperature 0-40℃
Working Humidity <85%, no condensation





Marble Floor Gloss Meter Advantages



1). High Precision

Every instrument has vertificate certificate from National Modern Metrology and Instruments Testing Laboratory and the Education Engineering Ministry of Education in China.



2). Comfortable Grab Feeling

The shell is made by Dow Corning TiSLV material, a desirable elastic material, a desirable elastic material. It is resistant to UV and banteria and does not cause allergy.



3). Large Battery Capacity

We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.



4). Super Stability

Every gloss meter made by us has done the following test:

412 calibration tests;

110 hours of accelerated aging test;

43200 stability tests.





Marble Floor Gloss Meter Application Example



The gloss meter could be widely used for testing the glossiness of print, ink, electroplate,plastic, tile, metal products, ceramics, auto accessories, furniture, leather, paper,etc.



gloss measurement scale





Marble Floor Gloss Meter Free Gloss QC Software

Device is with mature PC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.


Intelligent Digital Marble Floor Gloss Meter / Gloss Level Measurement 1





Marble Floor Gloss Meter Packing List



Intelligent Digital Marble Floor Gloss Meter / Gloss Level Measurement 2



Packing Material:Foam with carton box

Packing Size:230x220x120mm

Packing Weight:0.56kgs

Delivery Time:1-5 working days according to the type and quality ordered.



Qty. Name Qty. Name
1 Main Instrument 1 Charger Head
1 Operating Manual 1 USB Cable
1 PC Software 1 Verification Certification
1 Packing List 1 Operating Manual
