Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: CR 20
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: cartoon box
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Light Source: |
LED (Full Wavelength Balanced LED Light Source) |
Measure Aperture: |
8mm |
Wavelength Interval: |
10nm |
Wavelength Range: |
400-700nm |
Repeatability: |
ΔE≤0.1(Measure White Tile 30 Times With 5 Seconds Interval) |
Measurement Accuracy: |
0.1 |
Measure Time: |
1.0s |
Illuminants: |
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 |
Observer: |
2°，10° |
Display Screen: |
IPS Full Color Screen（135*240,1.14inch） |
Calibration: |
Automatic Calibration |
Software Supported: |
Andriod,IOS,Windows |
Battery: |
Rechargeable,5,000 Continuous Tests |
Interface: |
USB，Bluetooth |
Storage: |
APP Mass Storage |
Light Source: |
LED (Full Wavelength Balanced LED Light Source) |
Measure Aperture: |
8mm |
Wavelength Interval: |
10nm |
Wavelength Range: |
400-700nm |
Repeatability: |
ΔE≤0.1(Measure White Tile 30 Times With 5 Seconds Interval) |
Measurement Accuracy: |
0.1 |
Measure Time: |
1.0s |
Illuminants: |
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 |
Observer: |
2°，10° |
Display Screen: |
IPS Full Color Screen（135*240,1.14inch） |
Calibration: |
Automatic Calibration |
Software Supported: |
Andriod,IOS,Windows |
Battery: |
Rechargeable,5,000 Continuous Tests |
Interface: |
USB，Bluetooth |
Storage: |
APP Mass Storage |

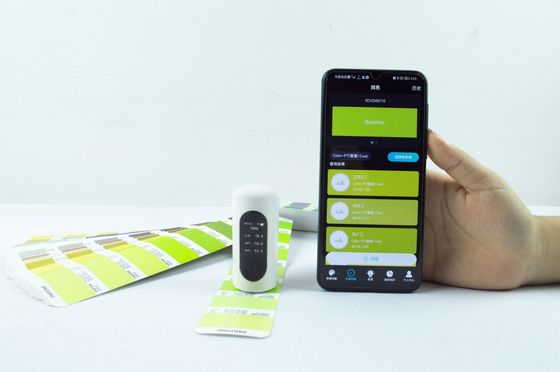

8mm Measure Aperture LED Automatic Calibration 45°/0 Geometry Color Measurement
Spectral Colorimeter CR series
1. Instrument functions
1．Automatic calibration, one-key measurement, get results in 1s
2．Adopt 45°/0 geometry that is more in line with the color evaluation
by the human eye
3．Can be used standalone or connect to App
4．Software supported: Android, iOS, Windows QC software
5．Magnetic calibration box
6．Lipstick-size, more convenient to carry
2. Technical parameter
| Model | CR-10(No screen) | CR-20(With screen) | CR-30(with screen) | |
| Geometry | 45/0 | |||
|
Measure index
|
RGB,Hex,Lab,LCh,HSB,LRV,CMYK(A,T,E,M) ,XYZ,Yxy,ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00 |
RGB,Hex,Lab,LCh,HSB,LRV,Spectral reflectance,HunterLab,CIE-Luv, XYZ,Yxy,Color Difference (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00),Whiteness (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBerger Stensby),Yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Staining Fastness,Color Fastness, Tint(ASTM E313-00),Color Density CMYK(A,T,E,M),Metamerism Index Milm,Munsell,Opacity,Color Strength |
||
| Light Source | LED (Full Wavelength Balanced LED Light Source) | |||
| Measure Aperture | 8mm | |||
| Wavelength Interval | 10nm | |||
| Wavelength Range | 400-700nm | |||
| Repeatability | ΔE≤0.1(Measure white tile 30 times with 5 seconds interval) | ΔE≤0.05(Measure white tile 30 times with 5 seconds interval) | ||
| Measurement Accuracy | 0.1 | 0.01 | ||
| Measure Time | 1.0s | |||
| Interface | USB,Bluetooth | |||
| Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 | |||
| Observer | 2°,10° | |||
| Display Screen |
No screen
|
IPS Full Color Screen(135*240,1.14inch) | ||
| Battery |
Rechargeable,5,000 continuous tests
|
Rechargeable,10,000 continuous tests | ||
| Language |
Chinese ,English
|
|||
| Calibration | Automatic Calibration | |||
| Software supported |
Andriod,IOS,Windows
|
|||
| Weight | About 75g | |||
| Size | Diameter:33mm,Height:84mm | |||
| Storage | APP mass storage | |||
