Home > Products > Laboratory Colorimeter > D/8 SCI Auto Calibration Pocket Colorimeter 8mm Measure Aperture For Measuring Color

D/8 SCI Auto Calibration Pocket Colorimeter 8mm Measure Aperture For Measuring Color

Product Details

Place of Origin: China

Brand Name: CHN spec

Certification: CE

Model Number: Color Meter Pro

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: Carton Box

Delivery Time: 5-7 days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1000 per month

Get Best Price
Product Details
Highlight:

Auto Calibration Colorimeter

,

Auto Calibration Color Meter

Usage:
Colorimeter
Product Name:
Delta E Precision Colorimeter
Light Source:
LED
Color Space:
CIEL*a*b*C*h* CIEL*a*b*
Warranty:
1 Year,12 Months
Illuminating/viewing Geometry:
D/8
Weight:
90g
Repeated Accuracy:
Delta E*ab 0.1
Usage:
Colorimeter
Product Name:
Delta E Precision Colorimeter
Light Source:
LED
Color Space:
CIEL*a*b*C*h* CIEL*a*b*
Warranty:
1 Year,12 Months
Illuminating/viewing Geometry:
D/8
Weight:
90g
Repeated Accuracy:
Delta E*ab 0.1
Product Description

8mm Measure Aperture D/8 SCI Auto Calibration Color Meter Pro Pocket Colorimeter



Cheap Color Meter Pro Pocket Colorimeter For Mobile Phone APP Build-In RAL NCS Pantone Color Shade Painting Coating



  Cheap Color Meter Pro Pocket Colorimeter for Material Color and Color Difference Test with build-in RAL NCS Pantone Color Shades Painting Coating Plastic color searach





ColorMeter Pro will take you into a new world of color management; It can be widely used to measure color value, color difference value and find similar color from color cards for printing industry, paint industry, textile industry, etc.





Part 1. Instrument Function Introduction
1. Measure Color Value
 Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI mode to make measurement more accurate.
 Adopt spectral sensor to provide reflectance data which make its performance much better than colorimeter.
 To get correct L*a*b, L*Ch, RGB, Hex and other color value under light source D65 or D50.
 It can measure whiteness index, yellowness index, color strength, color fastness, opacity and other 20 kinds of parameters with 26 kinds of illuminants.

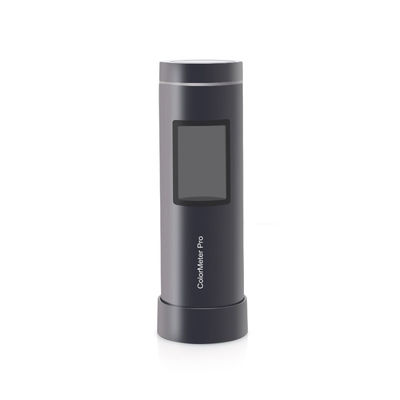

                                                           D/8 SCI Auto Calibration Pocket Colorimeter 8mm Measure Aperture For Measuring Color 0



D/8 SCI Auto Calibration Pocket Colorimeter 8mm Measure Aperture For Measuring Color 1

Operate on Instrument





D/8 SCI Auto Calibration Pocket Colorimeter 8mm Measure Aperture For Measuring Color 2

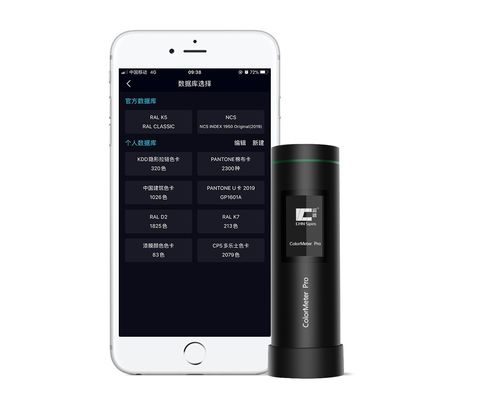

Operate on Mobile Phone APP





2. Measure Color Difference Value
 “Pass” or “Fail” judgment can be seen from both instrument and APP.
 ΔE *ab, ΔE * CH and other color difference formulas, display color difference value, color difference evaluation results.
 Connect to App for color difference evaluation, color difference tolerance and parameters can be set in APP.





3. Portable and Massive Color Card Database
 Bluetooth to connect with mobile phone APP to create database to upload the color shades from printing, paint, textile color cards.
 No need to carry big and heavy color card, we can find color card database from Colormeter Pro APP and find the closed/similar color easier and faster.

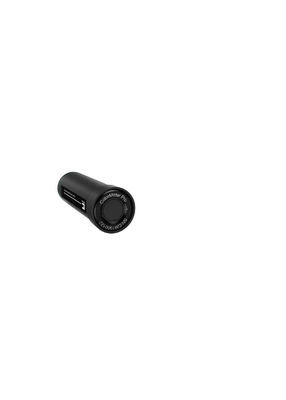

D/8 SCI Auto Calibration Pocket Colorimeter 8mm Measure Aperture For Measuring Color 3





4. Artificial Intelligence for Accurately Measure Color
 AI-based color search engine for accurately measure color;
 Color can be collected anywhere and anytime.



D/8 SCI Auto Calibration Pocket Colorimeter 8mm Measure Aperture For Measuring Color 4





5. Innovation Design for Auto Black and White Calibration
 Auto instrument black and white calibration for easier and correct color test
 APP will remind for calibration if instrument works for long time
 From APP we can do manual calibration and set calibration interval.




6. Single Instrument for Test and Save Test Value
 1.14 inches IPS display screen to show color information.
 Data can be saved on instrument and instrument data can be synced into APP.




7. Cloud database, more convenient to view and upload
 Official color card databases are available.
 Personal users can update color information to cloud and share between different instruments which make color management much easier.
 Enterprise users can create and manage their own color card library and formula information in the cloud and share the information to their customers and suppliers through the unique invitation code.





8. Packing List

D/8 SCI Auto Calibration Pocket Colorimeter 8mm Measure Aperture For Measuring Color 5



Name Qty.
Instrument 1
Type-C Cable 1
Operate Manual 1





9. Technical Data



Model ColorMeter Pro

Illumination and

Viewing System

D/8, SCI (specular component included)
Color Spaces , Color Difference and Indices Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00,ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YellownessIndex
(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength
Light Source LED (Full Wavelength Balanced LED Light Source)
Measure Aperture 8mm

Wavelength

Interval

10nm

Wavelength

Range

400-700nm
Repeatability ΔE≤0.1 (when a white tile is measured 30 times at 5-second intervals after calibration)

Measurement

Time

1s
Interface USB, Bluetooth
Illuminants A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30, U35,DLF,NBF,TL83,TL84
Observer 2° and 10°
Display Screen IPS Full Color Screen (screen resolution 135*240,1.14 inches)
Battery 4.2V / 760mAh, Rechargeable, 10,000 continuous tests
Language English and Chinese
Calibration Auto
Software Support Android, IOS, Windows
Weight About 90g
Instrument Size Diameter 31mm , Height 102mm
