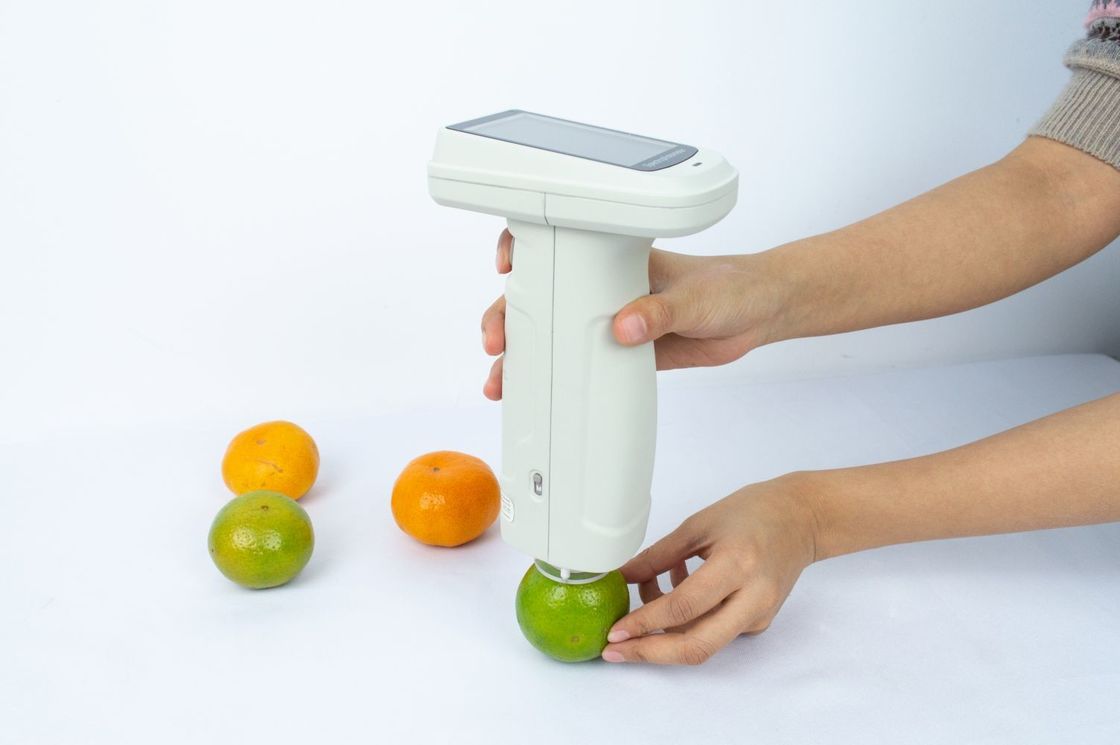

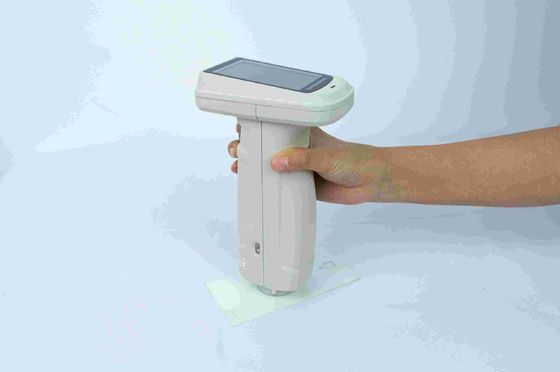

D/8 SCI+SCE Portable Spectrophotometer Bluetooth 0-200% Wavelength Range
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Calibration||Intelligent Auto Calibration||Sphere Size||40mm|
|Wavelength Interval||10nm||Wavelength Range||0-200%|
|Reflectance Resolution||0.01%||Measurement Time||< 2s|
|Interface||USB, Bluetooth||Screen||3.5 Inches Touch Screen|
D/8 Portable Spectrophotometer,
SCI+SCE Portable Spectrophotometer
DS-700D D/8 SCI+SCE 0-200% Wavelength Range Portable Spectrophotometer
DS-700d Portable Spectrophotometer Colour Matching Spectrophotometer For Plastic Painting
Coating Textile Industry
DS-700d Portable Spectrophotometer Report Reflectance Data at 10nm Interval Tristimulus Value Y (CIE No. 15.2 1986)
Spectrophotometer DS-700D Advantage
1) Excellent repeatability and inter-instrument agreement
repeatability : dE*ab≤ 0.04 (max.) and inter-instrument agreement : ≤0.25
Test result is accurate and reliable to ensure the consistency of the measurement data of multiple devices, which can be used for color matching and accurate color communication.
2). It can pass metrology of level I.
3). Dual optical path array sensor
The dual optical path design monitors the energy fluctuation of the light source while measuring the sample signal, reduces interference during the measurement, and obtains better measurement repeatability. The usage of large-area dual-array sensors provides higher spectral response sensitivity, and ensures fast measurement speed, accuracy, stability and consistency between multiple devices.
4). Intelligent auto calibration, white tile is made by ZrO2 with reflectance more than 90%, no need for frequent white calibration.
The instrument is placed on the intelligent calibration base, and the instrument can be automatically calibrated without manual intervention through the white tile on the base. It has changed the current situation that traditional instruments must be manually calibrated with white tile. The white tile is made by ZrO2 with reflectance more than 90%, which ensures excellent mechanical strength and weather resistance, and will not be scratched or discolored after long-term use.
5). 360-700nm Full Wavelength Balanced LED+UV
The instrument adopts a full wavelength balanced LED and UV as the illuminant, ensuring sufficient spectral distribution in the visible and ultraviolet bands, and materials with fluorescent can also be measured.
6). 10nm Resolution Grating Spectroscopy Technology
The grating combined with the array sensor made by the innovative MEMS process makes color measurement more accurate based on the 10nm spectral resolution.
7). Three aperture as standard accessories, no tools are needed and apertures can be replaced at any time to meet different sample measurement requirements. Spectrophotometer DS700D comes with three apertures 11mm/6mm/1*3mm.
8). More than 30 kinds of color indices and 37 kinds of illuminants
DS-700D provides a variety of color indices and evaluation illuminants that comply with international standards. A variety of light sources and color indices can be flexibly chosen through the mobile phone app or PC software.
9). It supports Android, IOS and Windows program.
10). It is with the camera to see the measurement area clearly.
Spectrophotometer DS-700D Packing List
Spectrophotometer DS-700D Technical Data
|Geometry||d/8, SCI+SCE(diffused illumination,8° viewing, Specular Component Included, Specular Component Excluded)|
Standard deviation within ΔE*ab ≤ 0.025
Average :dE*ab< 0.025
Max. :dE*ab≤ 0.04
(when a white tile is measured 30 times at 5-seconds interval)
Reflectance: Standard deviation < 0.08%
(BCRA Series Ⅱ, average measurement of 12 tiles)
|Color Spaces and Indices||Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness(My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength|
|Light Source||LED(Full wavelength balanced LED) + UV|
|Camera to see the measurement area||Yes|
|Calibration||Intelligent auto calibration|
|Software||Android, IOS, Windows|
|Standards||Conform to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7|
|Spectroscopic method||Grating spectroscopy|
|Sensor||Dual array sensor|
|Measurement Time||< 2s|
|Screen||IPS Full Color Screen,3.5 inches|
|Battery||Rechargeable, 8000 times continuous tests, 3.7V/3000mAh|
|Lamp Lifetime||10 years, 1 million tests|
|Language||Chinese and English|
|Instrument Size||95 x 129 x 231mm (L x W x H)|
|Instrument Weight||about 750g|
APP Mass Storage
100 pcs of target from instrument
