Product Details
Place of Origin: China
Brand Name: CHNSpec
Certification: CE
Model Number: CS392
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: cartoon box
Delivery Time: 5-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs per month
Illumination Angle: |
45 |
Measurement Angles: |
15，45,110,SPHERE DIFFUSED |
Wavelength Range: |
400-700nm |
Wavelength Pitch: |
10nm |
Reflectance Range: |
0-500% |
Viewing Angles: |
2,10 |
Repeatability: |
0.05 |
Inter-instrument Agreement: |
0.5 |
Light Source: |
Led |
Interface: |
USB |
Illumination Angle: |
45 |
Measurement Angles: |
15，45,110,SPHERE DIFFUSED |
Wavelength Range: |
400-700nm |
Wavelength Pitch: |
10nm |
Reflectance Range: |
0-500% |
Viewing Angles: |
2,10 |
Repeatability: |
0.05 |
Inter-instrument Agreement: |
0.5 |
Light Source: |
Led |
Interface: |
USB |

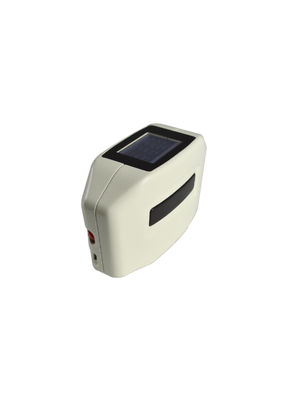

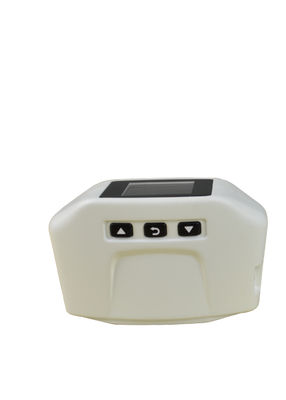

Three Angles Spectrophotometer CS-390/392 Introduction
Part 1. Introduction
Three angles color spectrophotometer CS-390/392 is specially designed for metallic paint color matching. It could measure the car paint in three different angles (15,45 and 110 degree) to get higher accuracy data for color analysis. CS-392 can also measure graininess level of car paint.
Working Principle of Color Measurement
Graininess Measurement Principle CS-392
Part 2. Instrument Advantages
■ It changes color measurement into a simpler work
■ Fast to get paint formula (only suitable for car paint manufacturer)
■ Simple interface and easy operation
■ Instrument is with rubber mat to prevent from sliding during measurement
■ Small measurement aperture for curve material measurement
■ Optional blue tooth function to connect with mobile phone and other devices.
Part 3. Application
Car Paint Paint Color Matching
Hardware Paint Mobile Phone Case
Part 4. Measure Car Paint In Customer’s Shop
Part 5 Technical Data and Price List
| Model | CS-390 | CS-392 |
| Illumination Angle | 45° | |
| Measurement Angles | 15°, 45°,110° |
Color Measurement Angle: 15°, 45°,110° Graininess Measure Angle: Integrating Sphere Diffuse |
| Parameters | L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000 |
Chromaticity Value: L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000 Graininess Lever (G) |
| Wavelength Range | 400-700nm | |
| Wavelength Pitch | 10nm | |
| Reflectance Range | 0-500% | |
| Resolution | 0.01% | |
| Light Source | LED | |
| Measurement Time | < 2s | < 6s |
| Repeatability |
dE≤0.05 Max. measure white tile, after calibration (measured 30 x at 5-second intervals) |
|
| Inter-instrument Agreement | dE≤0.5 Average measurement of BCRA II color tiles | |
| Measurement Aperture | Diameter 17mm | |
| Viewing Angles | 2°/ 10° | |
| Illuminants | A,C,D50,D65, F2, F7, F11, F12 | |
| Light Source Life time | 10 years, ≥1 million times | |
| Interface | USB or custom made | |
| Instrument Size | 145x58x99mm | |
| Instrument Weight | 476g | |
| Power | 3.7V/3000mAh rechargeable lithium battery | |
| Temperature | 0-40℃ (32-104 F) | |
| Storage Temperature | -20-50℃ (-4-122 F) | |
