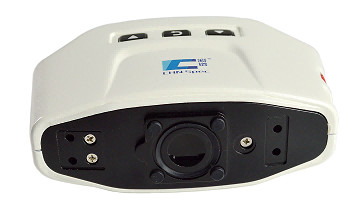

Handled Auto Calibration Multiple Angle Spectrophotometer

Place of Origin China
Brand Name CHNSpec
Certification CE
Model Number CS392
Minimum Order Quantity 1
Price negotiable
Packaging Details cartoon box
Delivery Time 5-7days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 1000pcs per month
Product Details
Illumination Angle 45 Measurement Angles 15,45,110,SPHERE DIFFUSED
Wavelength Range 400-700nm Wavelength Pitch 10nm
Reflectance Range 0-500% Viewing Angles 2,10
Repeatability 0.05 Inter-instrument Agreement 0.5
Light Source Led Interface USB
High Light

lab color meter

,

lab colorimeter

Leave a Message
Product Description

Three Angles Spectrophotometer CS-390/392 Introduction

Handled Auto Calibration Multiple Angle  Spectrophotometer 0Handled Auto Calibration Multiple Angle  Spectrophotometer 1Handled Auto Calibration Multiple Angle  Spectrophotometer 2Handled Auto Calibration Multiple Angle  Spectrophotometer 3Handled Auto Calibration Multiple Angle  Spectrophotometer 4Handled Auto Calibration Multiple Angle  Spectrophotometer 5Handled Auto Calibration Multiple Angle  Spectrophotometer 6

Part 1. Introduction

Three angles color spectrophotometer CS-390/392 is specially designed for metallic paint color matching. It could measure the car paint in three different angles (15,45 and 110 degree) to get higher accuracy data for color analysis. CS-392 can also measure graininess level of car paint.



Working Principle of Color Measurement



Handled Auto Calibration Multiple Angle  Spectrophotometer 7Handled Auto Calibration Multiple Angle  Spectrophotometer 8

Graininess Measurement Principle CS-392



Part 2. Instrument Advantages

■ It changes color measurement into a simpler work

■ Fast to get paint formula (only suitable for car paint manufacturer)

■ Simple interface and easy operation

■ Instrument is with rubber mat to prevent from sliding during measurement

■ Small measurement aperture for curve material measurement

■ Optional blue tooth function to connect with mobile phone and other devices.



Part 3. Application

Handled Auto Calibration Multiple Angle  Spectrophotometer 9Handled Auto Calibration Multiple Angle  Spectrophotometer 10

Car Paint Paint Color Matching

Handled Auto Calibration Multiple Angle  Spectrophotometer 11Handled Auto Calibration Multiple Angle  Spectrophotometer 12

Hardware Paint Mobile Phone Case



Part 4. Measure Car Paint In Customers Shop



 Handled Auto Calibration Multiple Angle  Spectrophotometer 13Handled Auto Calibration Multiple Angle  Spectrophotometer 14Handled Auto Calibration Multiple Angle  Spectrophotometer 15Handled Auto Calibration Multiple Angle  Spectrophotometer 16







Part 5 Technical Data and Price List

Model CS-390 CS-392
Illumination Angle 45°
Measurement Angles 15°, 45°,110°

Color Measurement Angle: 15°, 45°,110°

Graininess Measure Angle: Integrating Sphere Diffuse

Parameters L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000

Chromaticity Value: L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000

Graininess Lever (G)

Wavelength Range 400-700nm
Wavelength Pitch 10nm
Reflectance Range 0-500%
Resolution 0.01%
Light Source LED
Measurement Time < 2s < 6s
Repeatability

dE≤0.05 Max. measure white tile, after calibration

(measured 30 x at 5-second intervals)

Inter-instrument Agreement dE≤0.5 Average measurement of BCRA II color tiles
Measurement Aperture Diameter 17mm
Viewing Angles 2°/ 10°
Illuminants A,C,D50,D65, F2, F7, F11, F12
Light Source Life time 10 years, ≥1 million times
Interface USB or custom made
Instrument Size 145x58x99mm
Instrument Weight 476g
Power 3.7V/3000mAh rechargeable lithium battery
Temperature 0-40℃ (32-104 F)
Storage Temperature -20-50℃ (-4-122 F)
