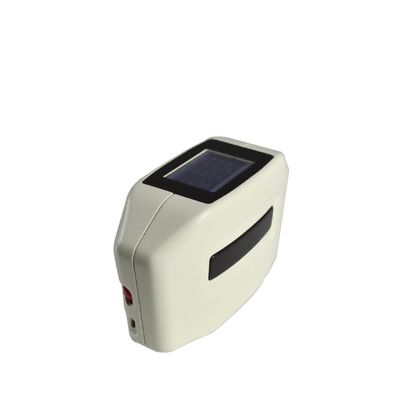

Handled Multiple Angle 15 45 110 Spectrophotometer For Graininess Assessments

Product Details

Place of Origin: China

Brand Name: CHNSpec

Certification: CE

Model Number: CS392

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiable

Packaging Details: cartoon box

Delivery Time: 5-7days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price
Product Details
High Light:

lab colorimeter

,

lab color meter

Illumination Angle:
45
Measurement Angles:
15,45,110,SPHERE DIFFUSED
Wavelength Range:
400-700nm
Wavelength Pitch:
10nm
Reflectance Range:
0-500%
Viewing Angles:
2,10
Repeatability:
0.05
Inter-instrument Agreement:
0.5
Light Source:
Led
Interface:
USB
Illumination Angle:
45
Measurement Angles:
15,45,110,SPHERE DIFFUSED
Wavelength Range:
400-700nm
Wavelength Pitch:
10nm
Reflectance Range:
0-500%
Viewing Angles:
2,10
Repeatability:
0.05
Inter-instrument Agreement:
0.5
Light Source:
Led
Interface:
USB
Product Description

Three Angles Spectrophotometer CS-390/392 Introduction

Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 0Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 1Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 2Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 3Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 4Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 5Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 6

Part 1. Introduction

Three angles color spectrophotometer CS-390/392 is specially designed for metallic paint color matching. It could measure the car paint in three different angles (15,45 and 110 degree) to get higher accuracy data for color analysis. CS-392 can also measure graininess level of car paint.



Working Principle of Color Measurement



Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 7Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 8

Graininess Measurement Principle CS-392



Part 2. Instrument Advantages

■ It changes color measurement into a simpler work

■ Fast to get paint formula (only suitable for car paint manufacturer)

■ Simple interface and easy operation

■ Instrument is with rubber mat to prevent from sliding during measurement

■ Small measurement aperture for curve material measurement

■ Optional blue tooth function to connect with mobile phone and other devices.



Part 3. Application

Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 9Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 10

Car Paint Paint Color Matching

Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 11Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 12

Hardware Paint Mobile Phone Case



Part 4. Measure Car Paint In Customers Shop



 Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 13Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 14Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 15Handled Multiple Angle 15 45 110  Spectrophotometer For Graininess Assessments 16







Part 5 Technical Data and Price List

Model CS-390 CS-392
Illumination Angle 45°
Measurement Angles 15°, 45°,110°

Color Measurement Angle: 15°, 45°,110°

Graininess Measure Angle: Integrating Sphere Diffuse

Parameters L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000

Chromaticity Value: L*a*b, L*C*h, ΔE*ab, ΔE(cmc), ΔE DIN6175, ΔE 2000

Graininess Lever (G)

Wavelength Range 400-700nm
Wavelength Pitch 10nm
Reflectance Range 0-500%
Resolution 0.01%
Light Source LED
Measurement Time < 2s < 6s
Repeatability

dE≤0.05 Max. measure white tile, after calibration

(measured 30 x at 5-second intervals)

Inter-instrument Agreement dE≤0.5 Average measurement of BCRA II color tiles
Measurement Aperture Diameter 17mm
Viewing Angles 2°/ 10°
Illuminants A,C,D50,D65, F2, F7, F11, F12
Light Source Life time 10 years, ≥1 million times
Interface USB or custom made
Instrument Size 145x58x99mm
Instrument Weight 476g
Power 3.7V/3000mAh rechargeable lithium battery
Temperature 0-40℃ (32-104 F)
Storage Temperature -20-50℃ (-4-122 F)
